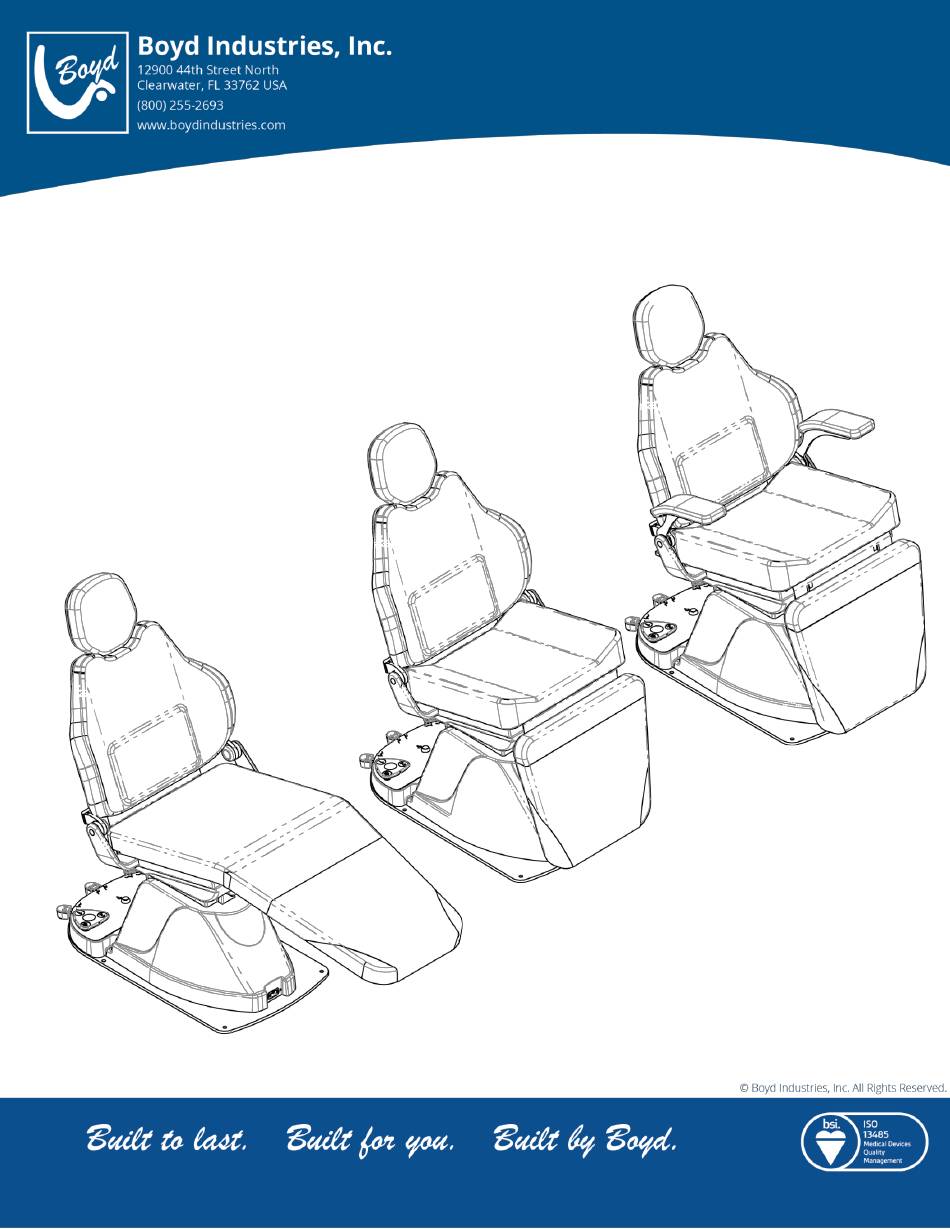

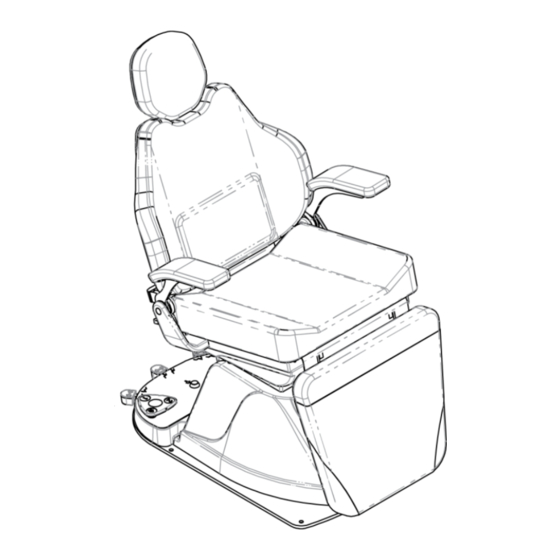

- Page 1 Product Manual 3000LS Series Treatment Chair Includes: M3000LS, M3010LS, E3010LS E3010LS M3010LS M3000LS...
-
Page 2: Table Of Contents
Safety Warning Symbols Safety Tips and Precautions About Your New BOYD Chair Description of Product Line Standard Safety Features General Product Information Product Specifications Transporting and Unpacking Your New BOYD Chair Power Requirements 11-12 Installation Instructions Chair Installation Initialization Procedure 13-14... -
Page 3: Introduction
All Boyd manufactured products are warranted against defects in material or workmanship only. No other warranties are expressed or implied. This warranty shall extend for three (3) years for parts and one (1) year for labor. The Boyd warranty only covers products manufactured by Boyd. Products distributed, not manufactured, by Boyd carry stated manufacturer’s warranty. -
Page 4: Safety Warning Symbols
Product Manual SAFETY WARNING SYMBOLS OCHM-005 REV 1... -
Page 5: Safety Tips And Precautions
Follow instructions: All use and operating instructions should be followed. Heed warnings: Adhere to all warnings labeled on equipment and in this Product Manual. Accessories: Use only accessories from Boyd Industries on this chair. Third party accessories will void the warranty and may be unsafe. -
Page 6: About Your New Boyd Chair
Product Manual ABOUT YOUR NEW BOYD CHAIR Description of Products Models: M3000LS, M3010LS, E3010LS Features: Power Back Lift Column Base – Stroke 5.91” Foot Control o Auto Home Button o 3 Programmable Settings o Exam Light ON/OFF Switch Synchronized Toe [3010 models]... -
Page 7: General Product Information
Do not lift or slide chair using back section, armrests or seat upholstery as damage to chair components may occur. Warning: Do not modify this equipment without written authorization from Boyd Industries, Inc. Unauthorized modifications of medical devices are in violation of FDA guidelines. OCHM-005... -
Page 8: Product Specifications
Product Manual Product Specifications – 3000LS Series [All dimensions stated in inches] NOTE: Headrest height adjusts approximately 6” when fully extended. NOTE: Height measured NOTE: Optional swivel will add additional 1.25” to height to top of seat frame. OCHM-005 REV 1... - Page 9 Before Unpacking Chair: Inspect shipping cartons for signs of potential shipping damage. If prior to or during the Unpacking process damage to product is found or items are missing, immediately note with the transporter and contact Boyd Customer Service to file shipping damage claim or expedite the replacement of any missing item. Warning: Do not lift or slide chair using back section, armrests or seat upholstery as damage can to chair components may occur.
-
Page 10: Power Requirements
The Multi-Socket GFI Outlet is a low amperage circuit not designed to handle heavy loads. If improperly used, a breaker shut down will occur and lead to reduced electrical safety. The dual outlet is designed for use with Boyd low-amperage Exam Lights only. OCHM-005... -
Page 11: Chair Installation
Product Manual CHAIR INSTALLATION AND INITIALIZATION NOTE: Full size paper templates are available to help determine the specific location of chair and utilities prior to actual installation. Warning: Chair Base must be anchored to floor through the pre-drilled base plate locations. Failure to do so may result in serious bodily injury to the operator and/or patient and could cause product damage. - Page 12 Product Manual Diagram: 3000/3010 Series Chair Electrical Panel Operator View OCHM-005 REV 1...
-
Page 13: Upholstery Installation And Removal
Product Manual UPHOLSTERY INSTALLATION AND REMOVAL [Refer to diagrams for component locations] Back Upholstery: The back upholstery must be in place before installing the seat upholstery. Place the Hangers located toward the top of the seat upholstery into the Back Frame Slots and slide upholstery downward until it stops on hangers. - Page 14 Product Manual Toe Upholstery: (M3010LS & E3010LS): Locate the four (4) Hangers on the back of the Toe Upholstery and align with the four (4) Receiving Slots on the Toe Frame. Slide the Toe Upholstery downward until it stops on hangers. Secure the Top Upholstery Flap by attaching the Velcro Strip on flap to Velcro Strip on the front of the Seat Frame.
-
Page 15: Operating Instructions
Product Manual OPERATION INSTRUCTIONS Position Memory Programming: Using the manual up/down control levers, position the chair as desired. Wait at least three (3) seconds, then depress and hold the Save button (S) for four (4) seconds. You will hear an audible confirmation beep. After hearing beep, within two (2) seconds, depress the button for the desired memory location (“1”,”2”,”3”). - Page 16 Product Manual OPERATION INSTRUCTIONS (Cont.) General Operating Instructions: Before operating, assure the chair is free of any obstructions around or under the chair. Do not allow small children to play on, around, or underneath chair or base. No service animals on/underneath chair or base. Check to be certain that all persons are clear of the chair before operating chair functions.
- Page 17 Product Manual OPERATION INSTRUCTIONS (cont.) Headrest Height Adjustment CAUTION: It is strongly recommended that the headrest height be adjusted before lowering the chair back or when motion has stopped. To lower or raise the headrest, support the headrest with one hand and depress the Headrest Release Lever with the free hand.
-
Page 18: General Maintenance And Care
Disposal of Equipment Boyd chairs are designed and built to last and provide efficient and safe service for many years. The expected service life of the M3000LS or 3010LS models is 15 years. When the time finally comes to retire the chair, please dispose of the equipment according to statutory and regulatory requirements. -
Page 19: Troubleshooting Guide
NOTE: The Reset procedure will erase stored memory settings. Follow instructions on Page 15 to Program the Memory. Noisy Motor(s) Potentially damaged motor gears. Call Boyd for Service. Headrest will not release Pull headrest outward with both hands. If this problem persists, Call Boyd for Service. - Page 20 Product Manual OCHM-005 REV 1...
