Summary of Contents for Boyd Flex Base 6000

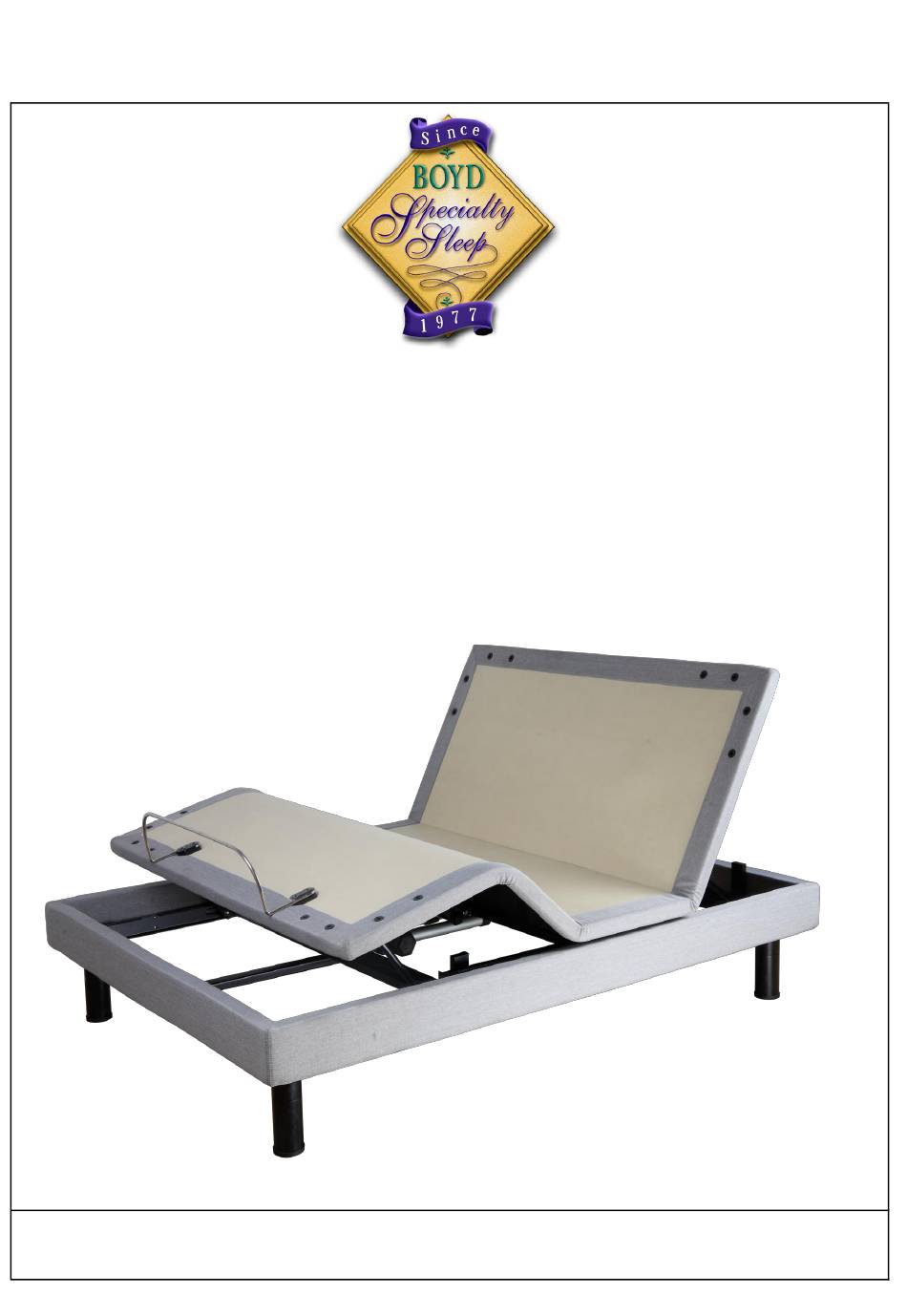

- Page 1 USER'S MANUAL Flex Base 6000 http://www.boydspecialtysleep.com...
-
Page 2: Table Of Contents
Table of Contents Safety Instructions …………………………………………………………………………… ………… Parts List ……………………………………………………………………………………… … Under Bed View ……………………………………………………………………………… Electronics Overview ….……………………………………………………………………… Installation …………………………………………………………………………………… …… Wireless Remote Control …………………………………………………………………… … Remote Pairing ….…………………………………………………………………………… … Memory Setting ……………………………………………………………………………… … Setting Up Two Bases ……………………………………………………………………… … Bracket Installation.. -
Page 3: Safety Instructions
Safety Instructions Safety Disclaimer Thank you for purchasing a BOYD SPECIALTYSLEEP adjustable bed base. For your safety, please read all instructions carefully before using this adjustable base. Save these instructions for future reference. Attention: Keep the base unplugged from the electrical outlet before operating any part of the base. To prevent the risk of electric shock, always unplug the base before cleaning. -
Page 4: Fabric Care
Safety Instructions Product Ratings: The lift motors are not designed to operate continuously for more than (2) minutes in an (18) minutes time period. Attempting to circumvent or exceed this rating will shorten the life expectancy of the product and may void the warranty. -
Page 5: Parts List
Parts List Ensure you have received all the parts listed below before discarding the packing materials. Parts List: A) Wireless Remote Control and AAA batteries [3] B) Legs and Washer (Note that the legs are two piece legs) [4] C) Mattress Retainer [1] D) Power Supply [1] E) Power Cord [1] F) Headboard Bracket [2]... -
Page 6: Under Bed View
Under Bed View Massage Motors Control Box Foot Motor Head Motor Massage Motors http://www.boydspecialtysleep.com... -
Page 7: Electronics Overview
Electronics Overview Not to Scale, Only for illustration purposes. Read all illustrations and instructions before beginning the installation process. Head Motor Control Box Foot Motor Wireless Sync Cable DC Cord Power Supply Remote http://www.boydspecialtysleep.com... -
Page 8: Installation
Installation STEP 1: Remove packing materials Put the bed base in a desired place with the bottom of the box facing up. Remove box cover, take out all of the packing materials and put aside, Make sure not to puncture the bed with any sharp objects. - Page 9 Installation STEP 5: Remote After the base is connected to the power supply, install three AAA batteries into the remote battery compartment. See pages 9 and 10 to learn how to operate the remote. STEP 6: Install mattress retainer *Locate the mattress retainer as shown below [1)]; Insert the mattress retainer into the hooks at the foot of the bed as shown [2)].
-
Page 10: Wireless Remote Control
Wireless Remote Control Remote Overview Massage Massage Timer Mode Sets Head Massage Foot Massage Intensity Intensity Anti-Snore Memory A Preset Preset Position Head Up Foot Up Head Down Foot Down Zero Gravity Flat Preset Position http://www.boydspecialtysleep.com... - Page 11 Wireless Remote Control Massage Feature The HEAD button start or stop the head massage function The FOOT button start or stop the foot massage function The ALL/OFF button shut off all massage features. The MASSAGE button inclreases and decreases the head and foot massage intensities.
- Page 12 Wireless Remote Control Adjusting Features The HEAD UP/DOWN button raises/lowers the head section of the base The FOOT UP/DOWN button raises/lowers the foot section of the base The one touch FLAT button returns the head and foot sections to a horizontal position.
-
Page 13: Remote Pairing
Remote Pairing Attention: All bases are set to the different DIP of the remote for easier use. You need to pair your remote if you need one remote controls two bases simultaneously. If using only one base normally, proceed to page 12. STEP 1: Push the DIP switch on the remote control to a desired position (different from the position on the other remote controls that are... -
Page 14: Memory Setting
Memory Setting STEP 1: Ensure the base is connected to the power supply correctly and the remote control works properly. Ensure the base is in the Flat position. Make sure the massage, LED light and other functions are turned off. ○... -
Page 15: Setting Up Two Bases
Setting Up Two Bases How to operate two bed bases simultaneously STEP 1: Either Remote A or Remote B can control two bases simultaneously after connecting the power supply. STEP 2: The sync cord is needed when connecting two CK or TXL bases together. - Page 16 Headboard Brackets Installation STEP 1: Open the headboard bracket accessory package and confirm that all the pieces listed below are included: Headboard Brackets [2] Headboard Connecting Components [2] Short Bolts (8) Long Bolts [6] Large Washers [2] Small Washers [12] Hex Key [1] STEP 2: Install the headboard bracket (F) using one long bolt and...
-
Page 17: Trouble Shooting
Trouble Shooting If one or more functions on the bed base have stopped operating, please check the bed as follow: ◎Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base. ◎Check to see if the bed base is connected to the power supply correctly. - Page 18 Base Functions Function Review Functions ● ● Wall hugger Carriage Design ● ● Head Up/Down Zero Clearance ● ● Foot Up/Down Flat ● ● Zero Gravity Wireless remote ● Memory Preset ● Anti-Snore ● Massage ○ Preset Flat Zero Gravity Positions Lounge Position TV Position...
