DSG Technology AA9604 Installation Manual

AA9604
Installation Guide
09AA96Q.MLA
AA9604 Installation Guide
Installing the Auto Attendant

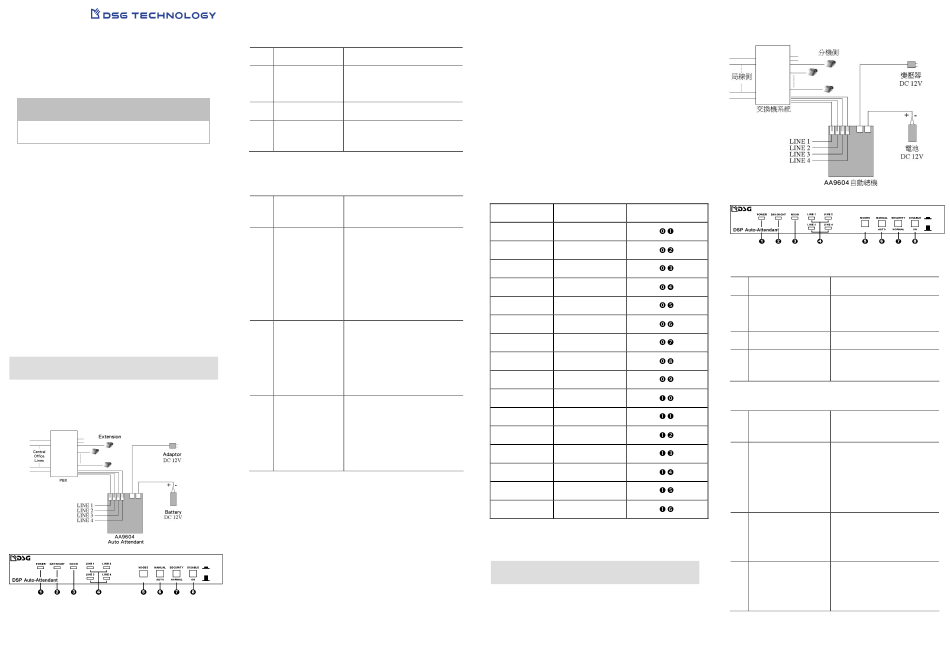

Please follow the diagram below to install your auto attendant.
LED Indicators
1 Power On: The adapter is plugged
2 Day/Night On: In Day mode
Off: In Night mode
3 Noon On: In Noon mode
4 Line 1-2 On: The line is occupied and
the system is answering calls.
Switch Buttons
5 Modes Press to switch modes in Day,
Night and Noon order.
6 Manual/Auto Upper: The system switches among
the DAY/ NIGHT/ NOON
modes automatically
according to the time
schedule.
Lower: The system is in the mode
you manually set.
7 Security/Normal Upper: The programming
function is available with a
password.
Lower: The programming
Function is locked.
8 Disable/On Upper: The system is running
normally.
Lower: The system is disabled and
lines will be in off-hook
status.
Configuring the system
1. Call into the system.
2. Press the password to enter system programming mode. The
default password is [#][1][2][3][4].
3. Set current date (Function [370]) and time (Function [380]).
4. Set First Flash Time [210] (and Second Flash Time [220], if
necessary), Transfer Sequence [330], Ring-Back Recall
Sequence [340] and Busy Recall Sequence [350] per your
switch's specifications.
5. Set Night Assistant Operator Extension [170] for Automatic
Call Progress Learning (ACPL).
6. Set Function [250] to [1#] to start ACPL for Ring-Back High
[250], Ring-Back Low [260], Ring-Back Second Low [270], and
Ring-Back Second High [460].
7. Set Function [290] to [1#] to start ACPL for Busy High [290]
and Busy Low [300].
8. Set up First Extension Group ([700] and [701]).
System Parameter Table
Please use this table to input DTMF and other signals.
Signal System Parameter Telephone
DTMF 1 1
DTMF 2 2
DTMF 3 3
DTMF 4 4
DTMF 5 5
DTMF 6 6
DTMF 7 7
DTMF 8 8
DTMF 9 9
DTMF * *
DTMF 0 0
DTMF # #
HOOK TIME 1 H1
HOOK TIME 2 H2
PAUSE ，
EXTENSION X
AA9604 快速安裝指南 快速安裝指南 快速安裝指南 快速安裝指南
安裝自動總機 安裝自動總機 安裝自動總機 安裝自動總機
請依下圖安裝您的自動總機系統。
LED 指示燈
電源指示燈 恆亮: 電源供應中
1
日夜切換模式指示燈 恆亮: 日間模式
2
熄滅: 夜間模式
3 午休時段指示燈 恆亮: 午休模式
進線狀態指示燈 恆亮: 該線佔線中，
4
系統正在應答進線電話。
按鈕
模式切換 依日間、夜間、午休時段順序，
5
按此鍵可切換模式。
手動/自動模式切換 放開: 系統根據內部時間設定，
6
自動切換模式日間、夜間、
午休時段。
下壓: 系統設定為手動所輸入的時
段。
7 系統保護/正常 放開: 可輸入密碼進入設定功能。
下壓: 設定功能鎖住中，無法變更
設定。
系統關閉/正常 放開: 系統正常運作中。
8
下壓: 系統關閉中，線路顯示為忙
線狀態。
設定系統 設定系統 設定系統 設定系統
1. 撥打電話進入系統。
