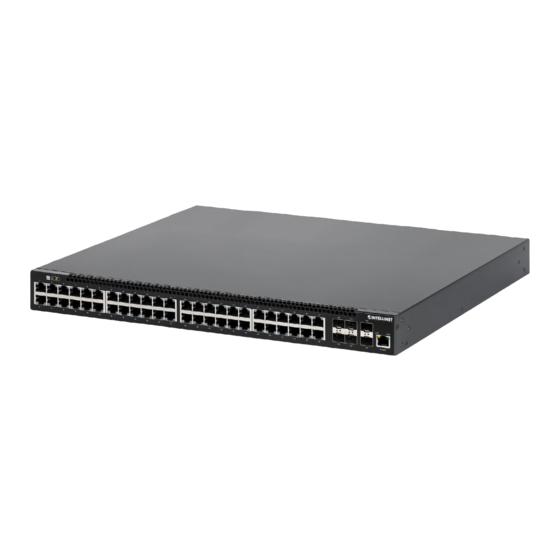

- Page 1 54-Port L3 Fully Managed PoE+ Switch with 48 Gigabit Ethernet Ports and 6 SFP+ Uplinks User Manual Model 562041 ( IPS-54GM06-10G-850W ) intellinet-network.com...
-
Page 2: Reader Object
All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or scanning, for any purpose other than the personal use by the purchaser of this product. -
Page 3: Table Of Contents
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks TABLE OF CONTENTS READER OBJECT............................2 TECHNICAL SUPPORT ..........................2 MANUAL DETAILS ............................2 INTRODUCTION ............................6 PRODUCT OVERVIEW ..........................6 FEATURES ..............................6 EXTERNAL COMPONENT DESCRIPTION ....................6 FRONT PANEL ............................6 REAR PANEL ............................7 PACKAGE CONTENTS ..........................7 INSTALLING THE SWITCH ..........................8... - Page 4 54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ACCESS PORT CONFIGURATION PAGE ....................21 TRUNK PORT CONFIGURATION PAGE ....................22 HYBRID PORT CONFIGURATION PAGE ....................22 LAYER 3 FEATURES ............................23 IP BASIC CONFIGURATION ........................23 VLAN INTERFACE CONFIGURATION PAGE ..................23 ARP CONFIGURATION PAGE ......................23 STATIC ROUTING CONFIGURATION PAGE ..................23...
- Page 5 54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks DHCP SNOOPING GLOBAL CONFIGURATION ..................35 GLOBAL CONFIGURATION .........................35 DHCP SNOOPING INTERFACE CONFIGURATION ................35 DHCP SNOOPING BINDING TABLE INFORMATION ................35 MULTICAST CONFIGURATION ........................36 IGMP SNOOPING ..........................36 CONFIGURATION ..........................36 MULTICAST GROUP INFORMATION ....................36 MULTICAST ROUTING CONFIGURATION ....................36...
-
Page 6: Introduction
Gigabit Ethernet Ports and 6 SFP+ Uplinks INTRODUCTION Thank you for purchasing the Intellinet Network Solutions 54-Port L3 Fully Managed PoE+ Switch with 48 Gigabit Ethernet Ports and 6 SFP+ Uplinks. Before you install and use this product, read this manual carefully for a full understanding of its functions. -
Page 7: Rear Panel
If any part is lost and damaged, please contact your place of purchase as soon as possible. In addition, make sure that you have the tools to install switches and cables on hand. • Intellinet Network Solutions 54-Port L3 Fully Managed PoE+ Switch with 48 Gigabit Ethernet Ports and 6 SFP+ Uplinks. -
Page 8: Installing The Switch
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks INSTALLING THE SWITCH This section describes how to install your Switch and make connections to it. Review the following topics and perform the procedures in the order being presented. Use the following instructions to avoid incorrect installation, which could damage the Switch or void the warranty. -
Page 9: Configuration Guide
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks CONFIGURATION GUIDE This section provides an introduction to the web-based configuration utility, and covers the following topics: • Powering on the device • Connecting to the network •... -
Page 10: Logging Into The Switch
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks LOGGING INTO THE SWITCH This section describes how to navigate the web-based switch configuration utility. Be sure to disable any pop-up blocker. LAUNCHING THE CONFIGURATION UTILITY To open the web-based configuration utility: 1 Open a Web browser. - Page 11 54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks THE STRUCTURE OF NAVIGATION TREE Navigation of features and system information can be accessed from the various tabs at the top of the page and drilled down via the menu on the left of the pages. Some commonly used buttons are shown below with an explanation of their function.
-
Page 12: System Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks SYSTEM CONFIGURATION BASIC INFORMATION PAGE This page is used to display and configure some parameters of the Switch. ITEM DESCRIPTION System Object ID The SNMP system object ID of the switch. -
Page 13: User Management Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks USER MANAGEMENT PAGE Multi-user management not only ensures the safety of switch system, but also provides the ability to manage and maintain switch by multiple users simultaneously. ITEM DESCRIPTION User Name... -
Page 14: Snmp Community Configuration Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks Server IP Address 2 One of the SNTP server address. Server IP Address 3 One of the SNTP server address. Time Interval Set the SNTP synchronization time interval in seconds. The default is 1800s. Time Zone Set the time zone where the switch is located. -
Page 15: Log Information
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ITEM DESCRIPTION TRAP Name TRAP target name. Server IP Address IP address of TRAP target. SNMP Version SNMP Version include v1, v2c and v3. LOG INFORMATION This page is used to view the log. -
Page 16: Port Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks PORT CONFIGURATION PORT BASIC CONFIGURATION PAGE This page is used to configure and display switch port basic information. The user can enable or disable the ports through this page, set the port rate and flow control, or view the basic information of all ports. -
Page 17: Port Storm Suppression Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks PORT STORM SUPPRESSION PAGE This page is used to configuration port Broadcast Suppression, Multicast Suppression, DLF Suppression and Ratelimit. Use the Port drop-down menus to configure ports witht broadcast suppression, multicast, DLF inhibition and suppression. -
Page 18: Protected Port
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks PROTECTED PORT This page shows the protection status of each port. Protected ports can only communicate with unprotected ports. You can tick the ports and press “protected port” button to set the related protected ports. You can tick the ports and press “Unprotected port”... -
Page 19: Trunking Configuration Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ITEM DESCRIPTION Trunk Group Create trunk Group, group ID is 1-32. Trunk Type Static trunk group or dynamic LACP trunk group. Create Status Uncreated or Created Trunk Method Configuration port load balance strategy. -
Page 20: Ddm Information
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks DDM INFORMATION This page is used to display the DDM information of all ports with SFP or SFP+ optical modules inserted. ’ POE PORT CONFIGURATION PoE port Configuration Page The PoE port configuration / PoE-display page. -
Page 21: Vlan Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks VLAN CONFIGURATION VLAN CONFIGURATION PAGE This page is used to create VLANs. If you want to create a new VLAN, you can enter a VID in the active line, ranging from 2 to 4094. -
Page 22: Trunk Port Configuration Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks TRUNK PORT CONFIGURATION PAGE This page displays and configures the port Trunk mode and the VLAN to which it belongs. This page is divided into two parts: port list and VLAN list. The port part of the operation can refer to the second section (Access port configuration page). -
Page 23: Layer 3 Features
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks LAYER 3 FEATURES IP BASIC CONFIGURATION VLAN INTERFACE CONFIGURATION PAGE This page shows the VLAN interface configuration page. User can use this page to configure the IP address of the interface, remove the IP address of the interface, and view the interface information. -
Page 24: Routing Table Information Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ROUTING TABLE INFORMATION PAGE This page is used to display routing table information according to the conditions of route state and route type. ITEM DESCRIPTION Route State... -
Page 25: Rip Interface
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks RIP INTERFACE This page is used to display all the RIP interface information. RIP ROUTE This page is used to display all the RIP route information. OSPF CONFIGURATION OSPF CONFIGURATION This page is used to configure and display OSPF protocol. -
Page 26: Ospf Interface
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks OSPF INTERFACE This page is used to display all the OSPF interface information. OSPF NEIGHBOR This page is used to display all the OSPF neighbor information. OSPF LSA This page is used to display all the OSPF LSA information. -
Page 27: Vrrp Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks VRRP CONFIGURATION VRRP CONFIGURATION This page is used to configure VRRP. ITEM DESCRIPTION Virtual Router ID One switch can enable multiple virtual routers on different interfaces. -
Page 28: Security Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks SECURITY CONFIGURATION MAC CONFIGURATION MAC ADDRESS MANUAL BINDING PAGE This page is used to achieve the port to the MAC address binding. The MAC address on the page is used to enter the bound MAC address. The VLAN ID entry is used to enter the VLAN to which the MAC address belongs. -
Page 29: Acl Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ACL CONFIGURATION IP SOURCE ACL CONFIGURATION PAGE This is the IP standard group ACL page the user can use this page to establish the ACL standard IP rule base. -
Page 30: Mac Arp Group Acl Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks When configures a rule, the source MAC address, source IP address, and destination IP address need to match the address. The rule can match the set of MAC address and IP address. For example, if the rule matches the IP address range 192.168.0.0 to 192.168.0. -
Page 31: Aaa Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks AAA CONFIGURATION AAA GLOBAL CONFIGURATION PAGE This is the AAA global configuration page. It can configure the information related to AAA. The information that can be set includes: Enable or disable 802.1x protocol, be sure to enable 802.1x protocol when doing authentication and accounting. -
Page 32: Aaa User Information Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks AAA USER INFORMATION PAGE The user can view the page under a port access to all users of the state information LOCAL MANAGEMENT SECURITY CONFIGURATION SAFE MANAGEMENT CONFIGURATION PAGE The administrator can enable or disable all of the network management services. -
Page 33: Dhcp Client
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks DHCP DHCP CLIENT This page is used to configure DHCP client. ITEM DESCRIPTION Interface Select the layer 3 VLAN interface to be configured. Enable/Disable Enable or disable the DHCP client feature of the specified interface. -
Page 34: Dhcp Server Address Pool Configuraiton
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ITEM DESCRIPTION Global DHCP Server Enable or disable global dhcp server. Interface Select the layer 3 VLAN interface to be configured. DHCP Listen Enable or disable the DHCP listen feature of the specified interface. -
Page 35: Dhcp Snooping Global Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks DHCP SNOOPING GLOBAL CONFIGURATION GLOBAL CONFIGURATION This page is used to configure global DHCP snooping. ITEM DESCRIPTION Global DHCP Snooping Enable or disable global DHCP snooping. DHCP Server Port 1 Select the trusted port to which the DHCP server is connected. -
Page 36: Multicast Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks MULTICAST CONFIGURATION IGMP SNOOPING CONFIGURATION ITEM DESCRIPTION Global IGMP SNOOPING Enable or disable global-based IGMP snooping. The default value is disabled. VLAN ID Select a VLAN to do the following configuration. -
Page 37: Multicast Routing Table
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks MULTICAST ROUTING TABLE IGMP CONFIGURATION CONFIGURATION ITEM DESCRIPTION Interface Select an interface to do the following configuration. IGMP Enable Enable or disable the IGMP protocol of the selected interface. Before operating the IGMP protocol, you need to enable the global multicast routing first. -
Page 38: Igmp Group Information
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks IGMP GROUP INFORMATION PIM-SM CONFIGURATION GLOBAL CONFIGURATION ITEM DESCRIPTION RP Address Configure a static RP address. Candidate RP Configure the L3 interface of the dynamic candidate RP. If none is selected, the candidate RP will be disabled. -
Page 39: Multicast Route Information
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks MULTICAST ROUTE INFORMATION PIM-SM INTERFACE INFORMATION PIM-SM NEIGHBOR INFORMATION PIM-SM RP MAPPING INFORMATION PIM-SM BSR ROUTER INFORMATION... -
Page 40: Spanning Tree Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks RING SPANNING TREE CONFIGURATION SPANNING TREE GLOBAL CONFIGURATION PAGE SPANNING TREE PORT CONFIGURATION PAGE ERPS CONFIGURATION ERPS PREDEFINED CONFIGURATION PAGE This is the ERPS Predefined Configuration page, which enables the ERPS pre- configuration configuration. -
Page 41: Erps Instance Configuration Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ERPS INSTANCE CONFIGURATION PAGE This is the ERPS Instance Configuration page, where you can configure ERPS instances. When an instance is not created, click the Apply button to create and specify a role; if the instance has been created and has no associated ring, the role can be modified;... -
Page 42: Eaps Configuration
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks EAPS CONFIGURATION EAPS CONFIGURATION PAGE This is an EAPS configuration page, through which you can configure some EAPS related information, including: • Select an EAPS ring number. •... -
Page 43: Qos Apply Configuration Page
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks ADVANCED CONFIGURATION QOS APPLY CONFIGURATION PAGE This is a QoS Apply configuration page. ITEM DESCRIPTION Select Port(s) Select Port(s) from the following list. QoS Type Three QoS types: COS-based, DSCP-based and Apply- policy. -
Page 44: System Tools
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks SYSTEM TOOLS SAVE THE CONFIGURATION PAGE Save button stores the current configuration of the system into the configuration file. Note: The storage operation needs to erase the FLASH chip, which takes a certain amount of time. Do not restart the switch directly after saving the configuration, Save and leave this page. -
Page 45: Software Upgrade Page
Use the Browse button to select the directory path of the uploaded image file on the PC. Click the Upload button to upload the image file (which must be provided by the Intellinet Technical support) and the file name suffix must be * .img. Do not click on other pages or reboot the switch before the transfer results page returns. -
Page 46: Appendix: Technical Specifications
54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks APPENDIX: TECHNICAL SPECIFICATIONS HARDWARE SPECIFICATIONS Standards and Protocols IEEE 802.1p, IEEE 802.1q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x Network Media 10Base-T: UTP/STP category 5e cable (maximum 100 m) - Page 47 54-Port L3 Fully Managed PoE+ Switch with 48 User Manual Gigabit Ethernet Ports and 6 SFP+ Uplinks...
- Page 48 EN MÉXICO: Póliza de Garantía Intellinet Network Solutions — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
- Page 49 POLSKI: Urządzenie spełnia wymagania CE 2014/30/EU I / lub 2014/35/EU. Deklaracja zgodności dostępna jest na stronie internetowej producenta: ITALIANO: Questo dispositivo è conforme alla CE 2014/30/EU e / o 2014/35/EU. La dichiarazione di conformità è disponibile al: support.intellinet-network.com/barcode/562041 North America Asia &...
- Page 50 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. INT_562041_UM_0124_REV_5.01...
