- Page 1 PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough User Manual Model 562034 ( IPS-6GM02-60W ) intellinet-network.com...
- Page 2 This manual provides information about using Intellinet Network Solutions PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough [562034 / IPS-6GM02-60W] READER OBJECT •...
-
Page 3: Table Of Contents
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough TABLE OF CONTENTS INTRODUCTION ............................5 PRODUCT OVERVIEW ..........................5 FEATURES ..............................5 EXTERNAL COMPONENT DESCRIPTION ....................6 FRONT PANEL ............................6 REAR PANEL ............................6 PACKAGE CONTENTS ..........................6 INSTALLING THE SWITCH ..........................7 DESKTOP INSTALLATION .........................7... - Page 4 PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough FILTER MAC ............................17 SEARCH MAC .............................17 MAC LIST ............................17 DHCP SNOOPING ..........................17 VLAN SETTINGS .............................18 VLAN MEMBER ...........................18 VLAN SETTINGS ..........................18 QOS SETTINGS ............................19 PORT RATE ............................19 STORM CONTROL ..........................19...
-
Page 5: Introduction
4 GbE Ports / 2 GbE Uplinks and PoE Passthrough INTRODUCTION Thank you for purchasing the Intellinet Network Solutions PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough. Before you install and use this product, read this manual carefully for a full understanding of its functions. -
Page 6: External Component Description

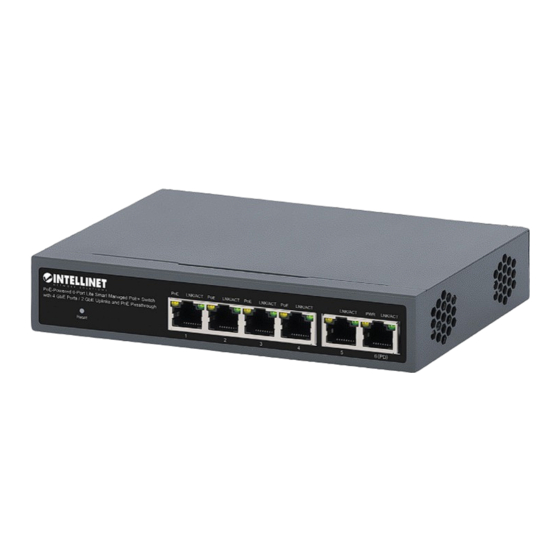

PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough EXTERNAL COMPONENT DESCRIPTION FRONT PANEL The front panel of the Switch consists of six Gigabit ports; four are PoE-enabled and two are Gigabit uplink ports. -
Page 7: Installing The Switch
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough INSTALLING THE SWITCH This section describes how to install your Switch and make connections to it. Review the following topics and perform the procedures in the order being presented. -
Page 8: Configuration Guide
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough CONFIGURATION GUIDE This section provides an introduction to the web-based configuration utility, and covers the following topics: • Powering on the device •... -
Page 9: Logging Into The Switch
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough LOGGING INTO THE SWITCH This section describes how to navigate the web-based switch configuration utility. Be sure to disable any pop-up blocker. LAUNCHING THE CONFIGURATION UTILITY To open the web-based configuration utility: 1 Open a Web browser. - Page 10 PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough WEB-BASED SWITCH CONFIGURATION The WebSmart switch software provides Layer 2 functionality for switches in your networks. This chapter describes how to use the web-based management interface (Web UI) to configure the switch’s features. For the purposes of this manual, the user interface is separated into three sections, as shown in the following figure: As you can see, the page is divided into two parts:...
-
Page 11: Web Smart Configuration
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough WEB SMART CONFIGURATION HOMEPAGE The homepage interface displays the basic information of the device. SYSTEM SETTINGS DEVICE INFO Configure the information of the device, including Device Name, Device Contact and Device Location. IP SETTINGS Configure device management IP (default static IP: 192.168.2.1) When “Auto Obtain IP”... -
Page 12: Web Settings
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough WEB SETTINGS Configure web page timeout, default is 5 minutes. The timeout can be configured for 1-60 TELNET SETTINGS Configure Telnet timeout, default is 10 minutes. The timeout can be configured for 1-60 minutes. -
Page 13: Monitoring
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough DEVICE MANAGEMENT BUTTON DESCRIPTION Reboot Click to restart the equipment Restore Click to restore the factory configuration and restart the equipment Save Config Click to save current device configure MONITORING... -
Page 14: Igmp Snooping
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough IGMP SNOOPING Configure IGMP Snooping Unknown multicast Handel Action can configure FLOOD or DROP, Select the VLAN you want to enable and click “Apply” to save. IGMP Snooping only supports DIP mode, the maximum multicast entry is 10, Unknown multicast Handel Action default is flood. -
Page 15: Port Isolation
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough PORT ISOLATION Configure isolation port group. JUMBO FRAME Configure the size of Jumbo Frames that can be forwarded. 1. Jumbo Frames can be configured with 1522, 1536, 1552, 9216 and 10000; 2. -
Page 16: Filter Mac
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough FILTER MAC Configure filtered MAC address Filter MAC addresses maximum can be configured 16. SEARCH MAC Search the MAC table learned by the device (support fuzzy search) The inquiry waiting process will interrupt the communication with the equipment MAC LIST Displays the list of MAC learned by the device... -
Page 17: Vlan Settings
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough VLAN SETTINGS The homepage interface displays the basic information of the device. VLAN MEMBER Configuration part: Enter a valid VLAN ID and click “Apply” to configure a new VLAN member; Display part: Displays the VLAN members newly added by the device, Select VLAN members in the VLAN member list and click ”Delete”... -
Page 18: Qos Settings
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough QOS SETTINGS Including port rate limit and storm control functions. PORT RATE Configure the port ingress and egress rate, which is divided into two parts: Configuration part: Select one or more ports, select the configuration type and whether to enable the port speed limit (enter the value of the port speed limit when it is enabled), and click ”Apply”... -
Page 19: Qos (Quality Of Service) Property
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough QOS (QUALITY OF SERVICE) PROPERTY Including QoS Property configuration and display: Configuration part: Select the configured Enable State, Queue Scheduling Mode, Priority Type and Weight, and click “Apply”... -
Page 20: Inner Priority Mapping
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough Display part: Display the DSCP Priority Mapping and Inner Priority. Default DSCP priority 0-7 corresponds to internal priority 0, 8-15 corresponds to internal priority 1, and so on. -
Page 21: Poe Settings
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough When the queue scheduling mode is SP, the weight cannot be set. The default weight of the eight queues is 1. When the queue scheduling mode is WRR, 0-7 of the queue ID corresponds to 1-8 of the weight by default. -
Page 22: Pdm (Powered Device Monitor) A Poe Watchdog Feature
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough PDM (POWERED DEVICE MONITOR) A POE WATCHDOG FEATURE Includes PDM configuration and display: Configuration part: Configure the detection time of PDM (60-86400s. When no communication is detected on the port, PoE will be restarted automatically). -
Page 23: Appendix: Technical Specifications
PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough APPENDIX: TECHNICAL SPECIFICATIONS HARDWARE SPECIFICATIONS Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE802.3af, IEEE802.3at Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100 m) 100Base-Tx: UTP category 5, 5e cable (maximum 100 m) - Page 24 PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough...
- Page 25 PoE-Powered 6-Port Lite Smart Managed PoE+ Switch User Manual with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough...
- Page 26 EN MÉXICO: Póliza de Garantía Intellinet Network Solutions — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
- Page 27 POLSKI: Urządzenie spełnia wymagania CE 2014/30/EU I / lub 2014/35/EU. Deklaracja zgodności dostępna jest na stronie internetowej producenta: ITALIANO: Questo dispositivo è conforme alla CE 2014/30/EU e / o 2014/35/EU. La dichiarazione di conformità è disponibile al: support.intellinet-network.com/barcode/562034 North America Asia &...
- Page 28 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Intellinet Network Solutions is a trademark of IC Intracom, registered in the U.S. and other countries. INT_562034_UM_0124_REV_5.02...
