Heat IQ HIQ 436 Quick Start Manual

To enter advanced settings area
Long press the settings symbol to enter
P Description
P1 Temperature calibration internal sensor
Set point Max.
Set Point Min.
P2 Dead Zone/Hysteresis
NTC select I = Internal E = External
Relay Output
P3 Open window (OWD) function
OWD detection time
OWD Drop temp Selection
(within detect time)
OWD time before reverting
P4 Backlight during standby
Backlight off delay time
Technical
Voltage 230v 50/60Hz
Max load current 3A
Setting range 5-35°C
Ambient operating temp 0-50°C
Relative Humidity 85%
Dimensions 130mm W x 87mm H
Installation
Remove the face from the back by placing a screwdriver in the three
retaining slots fix the backplate to the wall, wire the control as described
and re fix the face
(ensure there are no wall cavity drafts that will affect the control sensor)
Link
Range Default
-10 - +10°C 0
5°C to 80°C 35°C
5°C to 80°C 5°C
0°C to 3°C 0°C
I only, E only I & E , I or E I & E
Normal NO Inverted NC NO
Enable/Disable Disable
2 to 30 Mins, 15mins,
2, 3 or 4 °C 2°C
10 to 60 Minutes 30mins,
10% to 100% 20%
15 to 180 Seconds 30sec,
Backlight (color)
Sensor NTC3950 10Kohms@25°C
Accuracy +/- 0.5 °C
Protection Class IP30
Housing ABS to UL94-5 (Fire retardant)
3a voltage or volt free switching capable
Default is Potential free switching -
Add Link wire for Voltage switching

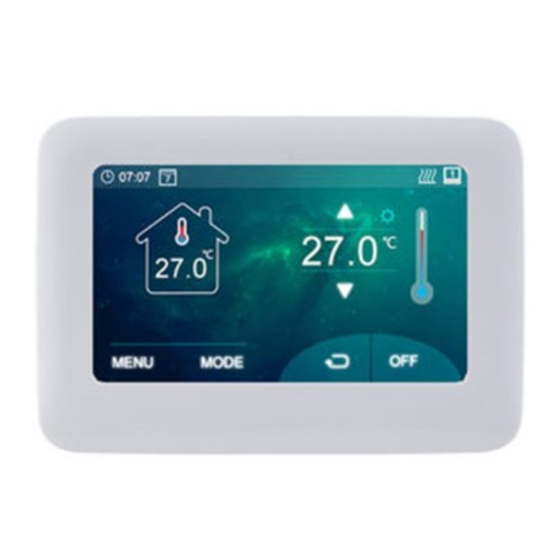

2.4Ghz WIFI thermostat
Amazon Alexa
Compatible with and
Features
WIFI remote management supported by both IOS and Android systems.
4.3" touch screen with Auto dimming display in multiple languages.
7 Day time and temperature management via screen or App
inbuilt and remote sensor operation with Open window control adjustment.
Simple pairing using the "Smart Life" App
Screen control lock out Via App (useful for children & tenants)
Supplied with White black and brushed silver facia included
Install location router must support 2.4Ghz
More Control
,
with easy navigate 4.4" touch screen
Google assistant
voice systems.
:
Higher Efficiency
Order code
HIQ 436
