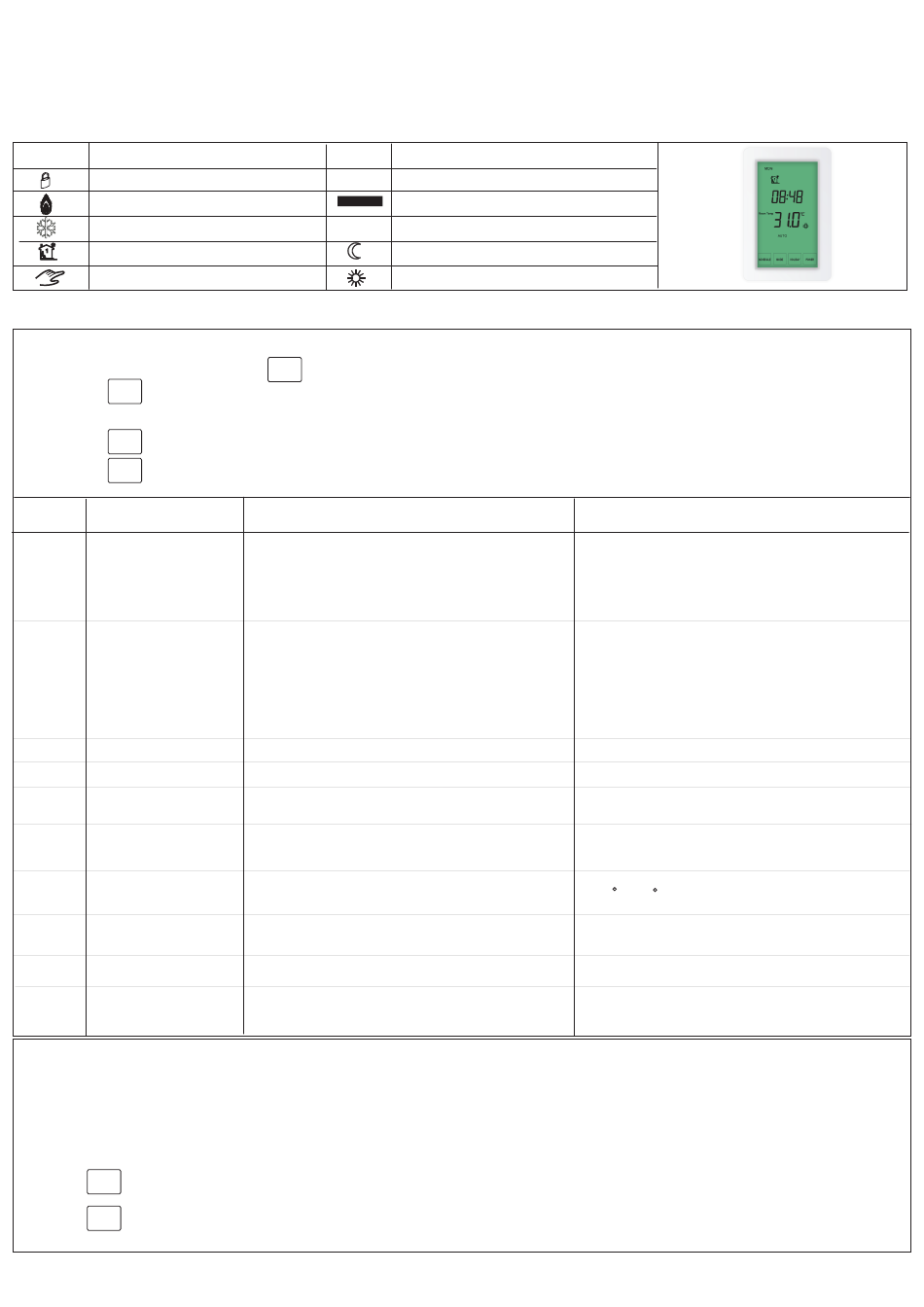

Heat IQ TR8100VGB Instructions

TR8100VGB Thermos t at I nstructions

LCD symbols

Symbol Event
The buttons are locked
Heating is turned on
Freeze protection activated
Program number
Manual mode

Configuration Menu

To enter into the setting menu please follow the steps below:
Step 1, Turn the thermostat off by pressing
Step 2, Press , you will then see menu 01.
MENU
Step 3, Use the up and down arrows to adjust the sensor selecti on which is Menu 01(Air sensing;Air and Floor, or Floor only)
Step 4, Press to move to the next Menu and once y ou have all the menu options set,
NEXT
Setp 5, Press to accept and store.
DONE
Menu # Feature
Sensor Selection
01
Switching Differential
02
Internal Sensor Calibration
03
External Sensor Calibration
04
Minimum temperature limit
05
Maximum temperature limit
06
Temperature Format
07
Clock Format
08
Freeze Protection
09
5+2 / 7 Day Mode
10

Setting the clock and day of the week

This thermostat is fitted with a real time clock. It is essenti al that the clock time and day are set accurately if you requir e your programmed events
to start on time. To set follow the steps below:
1) Touch the time display and the time will start flashing. Use the up and down arrows to set the time.By holding the arrow down the time will change faster.
NEXT
2) Press to move to the Day setting and use the u p and down arrows to get to the correct day.
3) Press DONE to store and exit.
Symbol Event
AUTO
Automatic mode,
Override
Temporary Temperature Override
Err The floor sensor is not being read by the thermostat
Economy temperature
Comfort temperature
;
POWER
Explanation
A = Internal sensor
F = External sensor
The number of degrees difference before switching.
The default is 1°C which means the thermostat will switch
the heating on 0.5°C below the set temperature and will turn
it off 0.5°C above the set temperature.With a 2°C differential
the heating will switch on 1°C below the set temperature
and will switch off 1°C above the set temperature.
This is to recalibrate the temperature reading from internal sensor
This is to recalibrate the temperature reading from external sensor
This gives you the option to change the minimum set temperature
This gives you the option to change the maximum set temperature
This alows the temperautre to be set to show °C or °F.
You can select the clock to show in either 12 or 24 hour time
This is to avoid the temperature from going below 5 °C
This allows you to program either 5 days at once, then the
2 days of the weekend separately, or a full 7 days at the
same time or 7 days separately
See overleaf for further setting up information
ver 1.1
executes the programmed schedules
Adjustment
A / F ( A by default)
1 °C, 2°C....10°C ( 1°C by default)
-1 °C = decrease 1 °C , 1 °C = increase 1 °C ...
-1 °C = decrease 1 °C , 1 °C = increase 1 °C ...
5 °C~ 20 °C (5 °C by default)
35 °C~ 90 °C (35 °C by default)
C or
24 (default), 12- hour or 24-hour clock format
on= activated, off= deactivated
01 = 5+2 day programmable
02 = 7 day programmable
(press up & down buttons to adjust)
F (°C by default)
