Heat IQ HIQ 432 Quick Start Manual

Programmable RF thermostat (with WIFI option)
Order ref HIQ 432

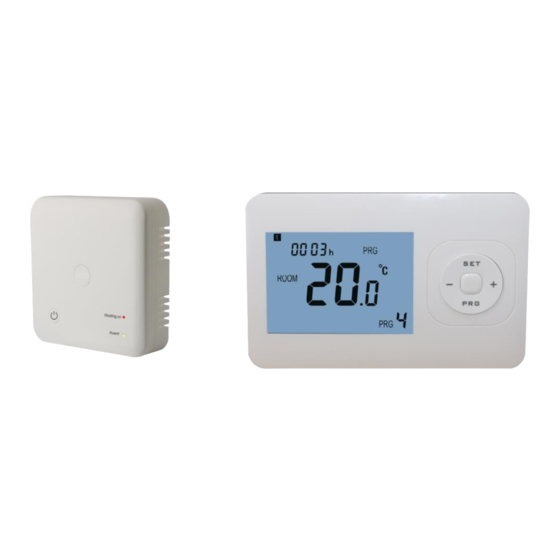

Surface-mounted radio frequency thermostat for time and temperature control central heating systems

Functions

✓ Large display with timed active backlight.
✓ Easy to install thermostat and receiver.
✓ Five buttons make it easy to use.
✓ 7 day programming with 4 periods within each day
✓ Display shows the set temperature as well as the measured temperature and time.
✓ Temperature display is in degrees Celsius.
✓ Supplied with a wall-fixing frame, and a free standing base.
✓ Compact surface mounted receiver.

Technical Data

Thermostat operating voltage:
Backup storage:
Receiver operating voltage:
Maximum voltage / (ohmic) load:
Frequency:
Channel selection:
Switching options:
Receiver switch contacts:
Temperature settings:
Accuracy:
Thermostat dimensions:
Receiver dimensions:
Color:
IP protection rating:
Certification:
Battery Life
2 x AAA1.5 V, alkaline batteries.
EEPROM
230 VAC, 50/60 Hz
250 VAC/10 A.
868 MHz
By programming the thermostat and the receiver.
7day, 4 periods each day.
NO and NC.
5°C ~ 35°C, 0.5°C increments.
+/- 0.5°C
Surface mounted, 135mm x 87.5 mm x 23.2mm.
Surface mounted, 86mm x 86 mmx26mm
White
20.
CE, Rohs, RED
,
Up to 12 months
or up to 6 months when WIFI feature is used
.
