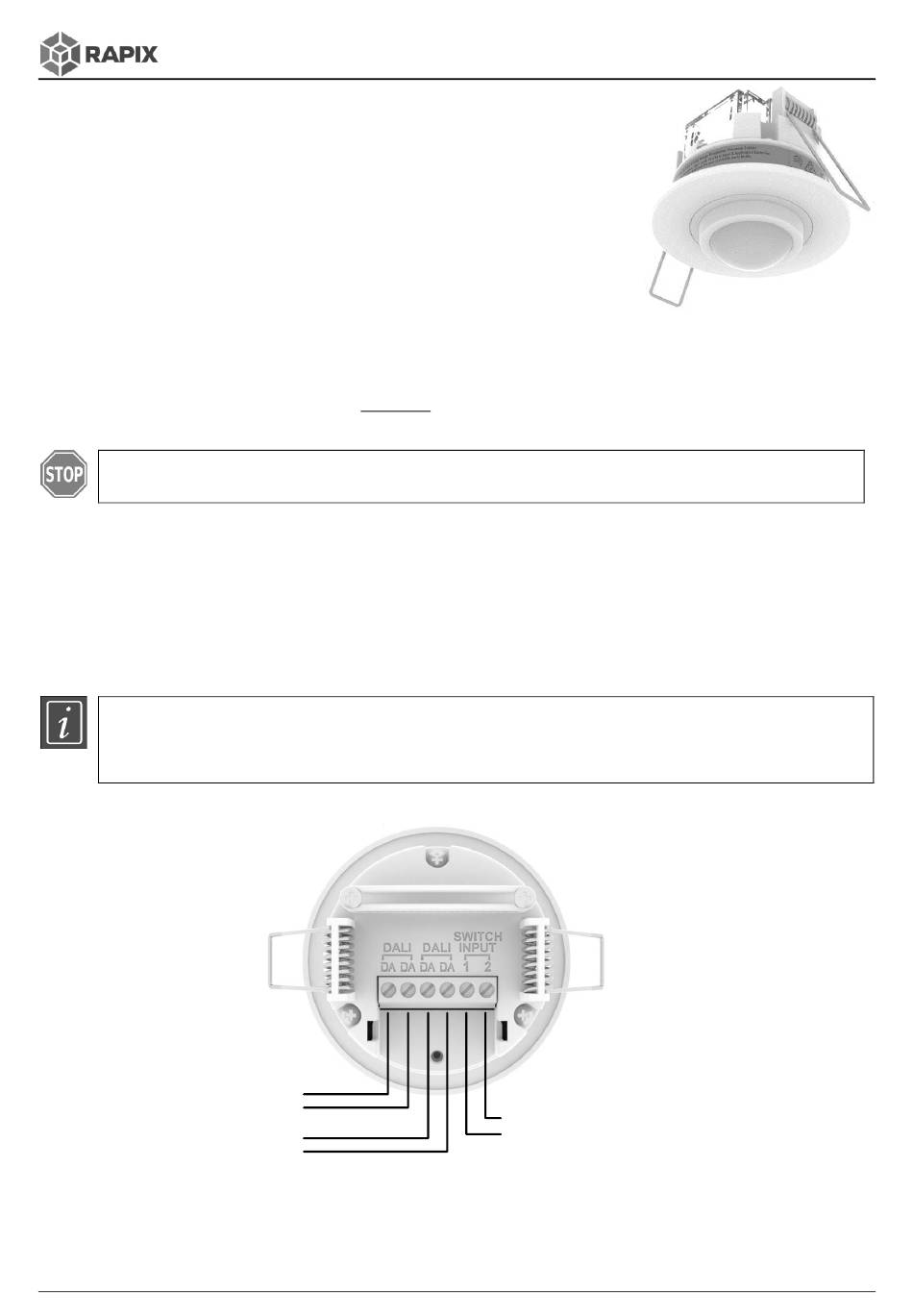

RAPIX DALI-2 Manual

DGOZ-LRS-PRLLSW
RAPIX DALI-2 Long Range Occupancy/Presence/Light Level Sensor
With Auxiliary Input and Application Controller
Suitable for direct connection to a DALI line for sensing, switching, dimming, timing,
group and scene control and similar functions.

Product summary and capabilities

This product acts as an occupancy (presence) sensor, light level sensor, and push button
switch input device, powered directly from the DALI line.
The sensor works with DALI-2 Application Controllers and exposes 3 instances. The sensor
can also act as a RAPIX DALI Application Controller and can perform sensing, switching,
dimming, timing, group control, scene control and similar functions. The sensor may have a separate voltage free switch
connected, allowing additional push button control.
The sensor is commissioned using any DALI-2 commissioning software that supports instance types 1, 3 and 4. For the higher
resilience of RAPIX and to set up the built-in Application Controller, use RAPIX Addressing or RAPIX Integrator software. These
software packages are available at no charge from ozuno.com

Important notes and safety information

WARNING
– Electric shock may result in serious injury or death. Follow all warnings in this guide and on the
product. Work in accordance with the latest electrical safety practices.
•
This Sensor is powered only from DALI line.
•
DALI system wiring is only single insulated from mains. Treat DALI wiring the same as mains wiring.
•
The Auxiliary input wiring has no isolation from DALI. Treat the Auxiliary input the same as mains wiring.
•
The Auxiliary input does not provide any power source. Connect it only to voltage-free (dry) contacts or a switch. Do not
connect any part of the Auxiliary Input to any other power source, or to earth, or to mains line or neutral.
•
There are no user serviceable parts inside the Sensor. Do not attempt to disassemble or operate the device with any
covers removed.
•
This sensor is intended for indoor use only.

Indicators

An indicator is located under the PIR lens. This will flash green when DALI-2 or RAPIX commissioning software activates
the identification function. This allows physical location of the sensor after it has been installed.
This indicator will also light solid green (no flashing) to show that the sensor has not been commissioned using DALI-2 or
RAPIX commissioning software or the RAPIX Zero-Commissioning processes.

Terminals

RAPIX DALI-2 Long Range Occupancy/Presence/Light Sensor
DALI Line
In/Out
DALI Line
In/Out
Switch input
(mains rated)
DGOZ-LRS-PRLLSW
