RAPIX DGOZ-LRS-PRLLSW Manual

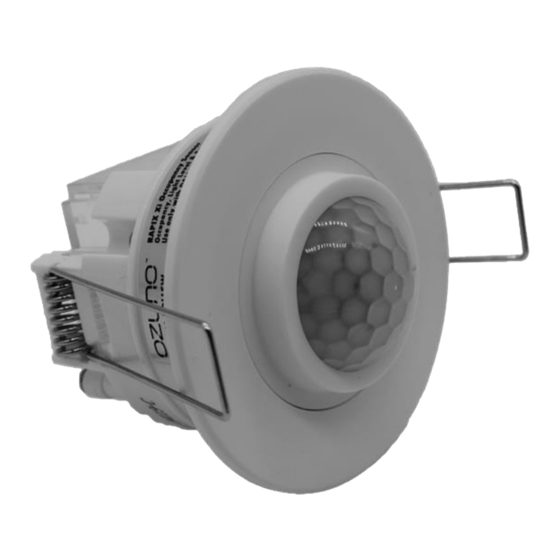

DGOZ-LRS-PRLLSW - RAPIX Xi DALI Long Range Occupancy Sensor
With Auxiliary Input

Product summary and capabilities

The Long Range Occupancy Sensor acts as a motion / occupancy sensor and DALI
Application Controller. The advanced control functions can be used in any DALI or
DALI-2 system.
The sensor is commissioned using the RAPIX Addressing or RAPIX Integrator
software. These software packages are available at no charge from ozuno.com.

Important notes and safety information

WARNING
– Electric shock may result in serious injury or death.
Follow all warnings in this guide and on the product. Work in
accordance with the latest electrical safety practices.
•
This Occupancy Sensor is powered only from DALI line.
•
DALI system wiring is only single insulated from mains. Treat DALI wiring the same as mains wiring.
•
The Auxiliary input wiring has no isolation from DALI. Treat the Auxiliary input the same as mains wiring.
•
The Auxiliary input does not provide any power source. Connect it only to voltage-free contacts or a switch. Do
not connect any part of the Auxiliary Input to any other power source, or to earth, or to mains line or neutral.
•
There are no user serviceable parts inside the Occupancy Sensor. Do not attempt to disassemble or operate the
device with any covers removed.
•
This sensor is intended for indoor use only.

Indicators

DALI Activity:
Discovery:

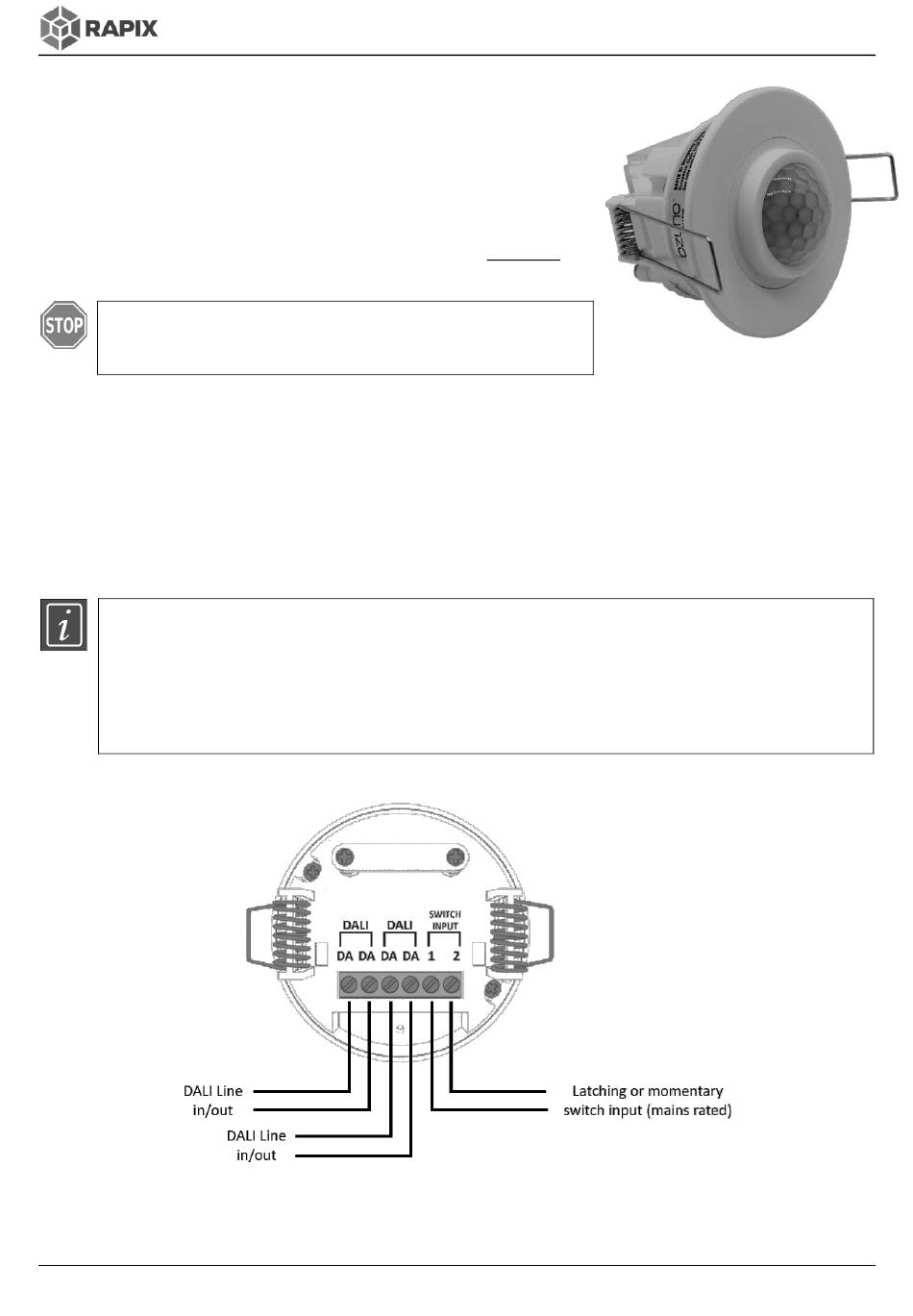

Terminals
RAPIX Xi DALI Long Range Occupancy Sensor DGOZ-LRS-PRLLSW
A DALI activity indicator is located near the terminal block. This blinks green and can be seen
through the plastic housing.
During installation and before pushing into the ceiling hole: If a green glow can be seen with a
blink about every 1 .. 2 seconds, then DALI is connected and the device has electrical power.
The RAPIX commissiong software includes a discovery function. When activated, an indicator
under the PIR lens will flash. This allows physical location of the sensor after it has been
installed.
Page 1 of 4
