RAPIX DGOZ-SEN30-PRLLSW Manual

DGOZ-SEN30-PRLLSW - RAPIX DALI-2 Occupancy/Movement/Light Level
Sensor
Suitable for direct connection to a DALI line for sensing, switching, dimming, timing, group
and scene control and similar functions.
Product summary and capabilities
This Occupancy Sensor acts as an occupancy (movement) sensor, light level sensor, and push
button switch input device, powered direct from the DALI line.
The sensor works with DALI-2 Application Controllers and exposes 3 instances. The sensor can
also act as a RAPIX DALI Application Controller and can perform sensing, switching, dimming,
timing, group control, scene control and similar functions. The sensor may have a single RAPIX
DGOZ-DSW30S-xx series Slave push button switch connected, allowing additional push button
control.
The sensor is commissioned using any DALI-2 commissioning software that supports device types 301, 303 and 304. For the
higher resilience of RAPIX and to set up the built-in Application Controller, use RAPIX Addressing or RAPIX Integrator
software. These software packages are available at no charge from ozuno.com.
Important notes and safety information
WARNING
product. Work in accordance with the latest electrical safety practices.
•
This Sensor is powered only from DALI.
•
DALI system wiring is only single insulated from mains. Treat DALI wiring the same as mains wiring.
•
There are no user serviceable parts inside the Sensor. Do not attempt to disassemble or operate the device with any
covers removed.
•
This Sensor is intended for indoor use only.
•
This sensor clips into commonly available modular plates from Clipsal, Trader, Voltex and others.
Indicators
An indicator is located under the PIR lens. This will flash green when DALI-2 or RAPIX commissioning software
activates the identification function. This allows physical location of the sensor after it has been installed.
This indicator will also light solid green (no flashing) to show that the sensor has not been commissioned using
DALI-2 or RAPIX commissioning software or the RAPIX Zero-Commissioning processes.
Connecting to a DALI Line
A DALI Line cable has two conductors that are not polarity sensitive. DALI Line cabling must be double-insulated
and mains rated.
This product has only single insulted wiring. The wiring must only be used inside an insulated enclosure
(example: a wall box), or it can be used in a metal enclosure that is earthed (example: luminaires or extrusions).
Each DALI Line requires an external DALI or DALI-2 compliant power supply to be connected before it will
operate. A suitable product is the RAPIX DALI Power Supply, order code DGLMPS01 (purchased separately).
RAPIX DALI-2 Occupancy/Movement/Light Sensor DGOZ-SEN30-PRLLSW
– Electric shock may result in serious injury or death. Follow all warnings in this guide and on the

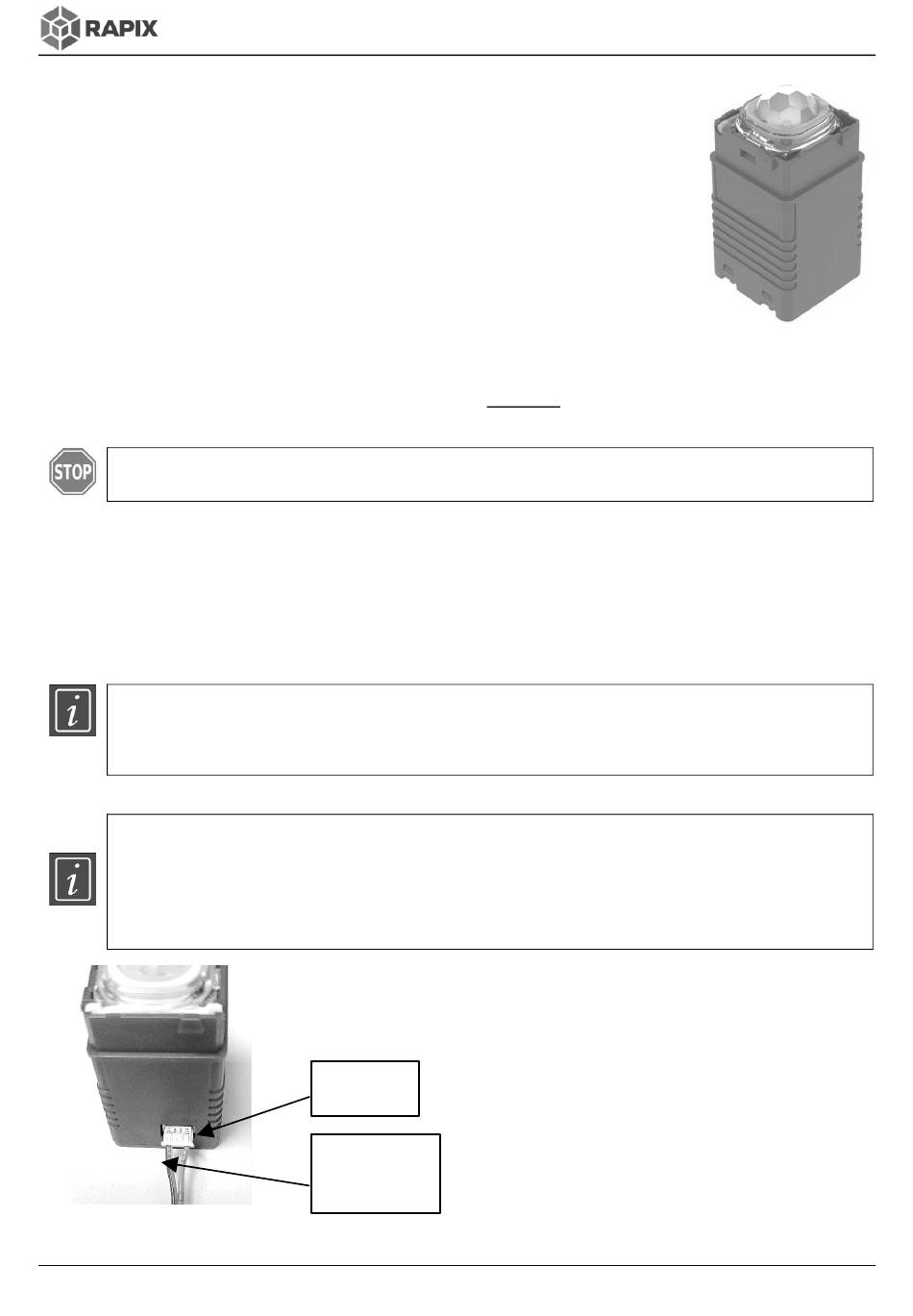

The DALI line is connected using the small connector with 2 wires.
The shiny metal pins should be visible for connection using the orientation shown.
METAL PINS
VISIBLE
RED STRIPE
FACING INSIDE
OF PRODUCT
