American Time Sitesync IQ Quick Start Manual

7
Verify Unit is Transmitting
The system controller now shows the correct time and
date. You will no longer be prompted on power-up for
setup information.
TX should display for about three seconds every 30
seconds (approximately the top and bottom of every
minute) in the bottom right corner of the screen.
MON MAR 15 2021
10:38:06 AM USCT
American Time
Status=AUTO TX
8
Activate and hang your clocks
Don't activate the battery or apply power to the clocks
until the system controller is installed and transmitting
and the clock is in the intended location.
Note: Clocks should be installed within 24 hours of
installing the system controller. After 24 hours, the system
controller will enter Quiet Mode. Pressing 3-5-7 on the
keypad will disable Quiet Mode for 6 hours. Reference
Appendix J in the SiteSync IQ Installation and Operation
Manual for more details on Quiet Mode.

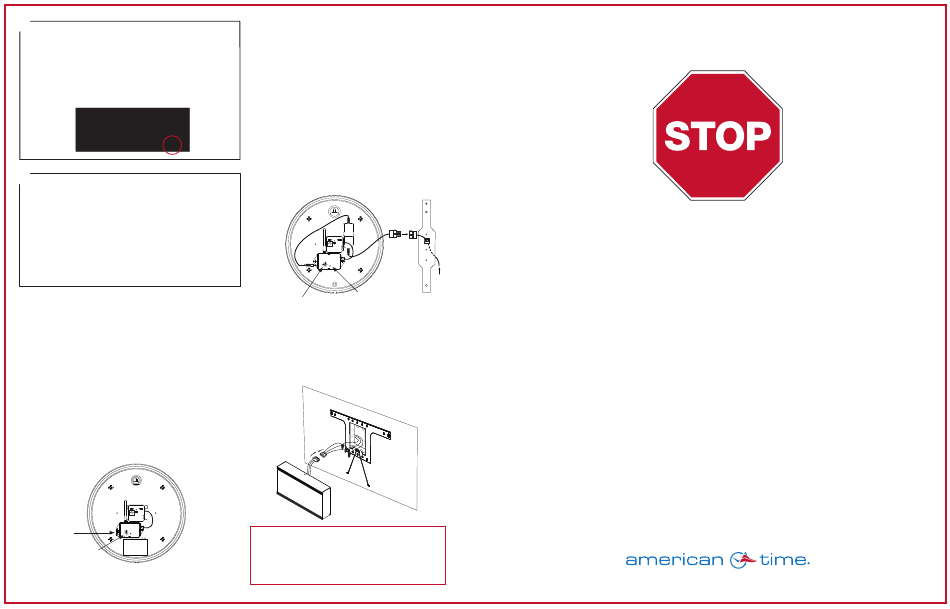

Battery Analog Clocks
a. Take the clock to the area where it will be used.
b. To activate the clock, connect barrel jack plug of battery
pack to wireless receiver. The LED on the back of the
clock will flash red within 30 seconds of power-up to
indicate receiver is looking for the wireless signal.
c. When the signal is received, the LED will flash green.
Be patient. The clock hands will rapid advance to the
correct time. This may take up to seven minutes.
d. Hang the clock after hands are rapid advancing.
Note: If the LED does not flash within 30 seconds, remove
the barrel jack plug of the battery pack from the wireless
receiver for 5 seconds and reconnect it. This resets the
receiver. The LED will begin flashing within 30 seconds.
DC
Battery
Barrel
Jack
Input
LED
INST-SSIQ-X-G Rev 17 December 15, 2023
AC
Electric (AC) Analog Clocks
a. Take the clock to the area where it will be used.
DC
b. To activate the clock, connect to AC power. The
LED on the back of the clock (see below) will flash
red within 30 seconds of power-up to indicate
receiver is looking for the wireless signal.
c. When the signal is received, the LED will flash green.
Be patient. The clock hands will rapid advance to the
correct time. This may take up to seven minutes.
d. Hang the clock once signal reception is
verified and clock is operating correctly.
Note: If the LED does not flash within 30 seconds, disconnect
the barrel plug on the clock receiver, wait 10 seconds and
reconnect. The LED will begin flashing within 30 seconds.
Electric
AC
Reset
LED
Button
Digital Clocks
a. Take the clock to the area where it will be used.
b. To activate the clock, connect power.
c. Verify synchronization takes place within 2-5
minutes by confirming the colons are not blinking.
WALL
Your SiteSync IQ system is now set up for proper
operation. For information on other features, see the
Installation and Operation Manual that was included with
your system. If you have any questions, please contact
Technical Support at American Time: 800-328-8996.
Sitesync IQ® Wireless System Controller with
Standard GPS Campus TX Antenna & External Trasmitter
After determining the proper wattage for your facility, we guarantee the coverage of your SiteSync IQ
when you follow a few simple steps. If this is your first installation or you have questions at any time
during this process, please call American Time toll free at 800-328-8996. We're here to help!
To
wiring
box
This Quick Start Guide will help you avoid three common installation mistakes:
1. Improper location of transmitting (TX) antenna. A temporary install of the system
controller is recommended.
until the system is working correctly.
2. Improper system controller start-up. A successful transmission is indicated by a
TX in the lower right-hand corner of the system controller screen.
campus TX antenna within 4' of the system controller.
3. Improper clock start-up. Activate clocks in their intended location.
the clocks in one room and move them to another location as signal reception will not
be verified. Make sure the system controller is transmitting and is not in Quiet Mode.
IMPORTANT! Clocks should be installed within 24 hours of installing the system controller. After 24
hours, the system controller will enter Quiet Mode. Pressing 3-5-7 on the keypad will disable Quiet Mode
for 6 hours. Reference Appendix J in the SiteSync IQ Installation and Operation Manual for more details
on Quiet Mode.
800-328-8996
phone:
Please read this first!
Don't drill holes for permanent installation and mounting
american-time.com
online:
Don't locate the
Don't activate
800-789-1882
fax:
