Programming the Doheny In-Ground Variable Speed Pumps
Item numbers 90950 and 90951

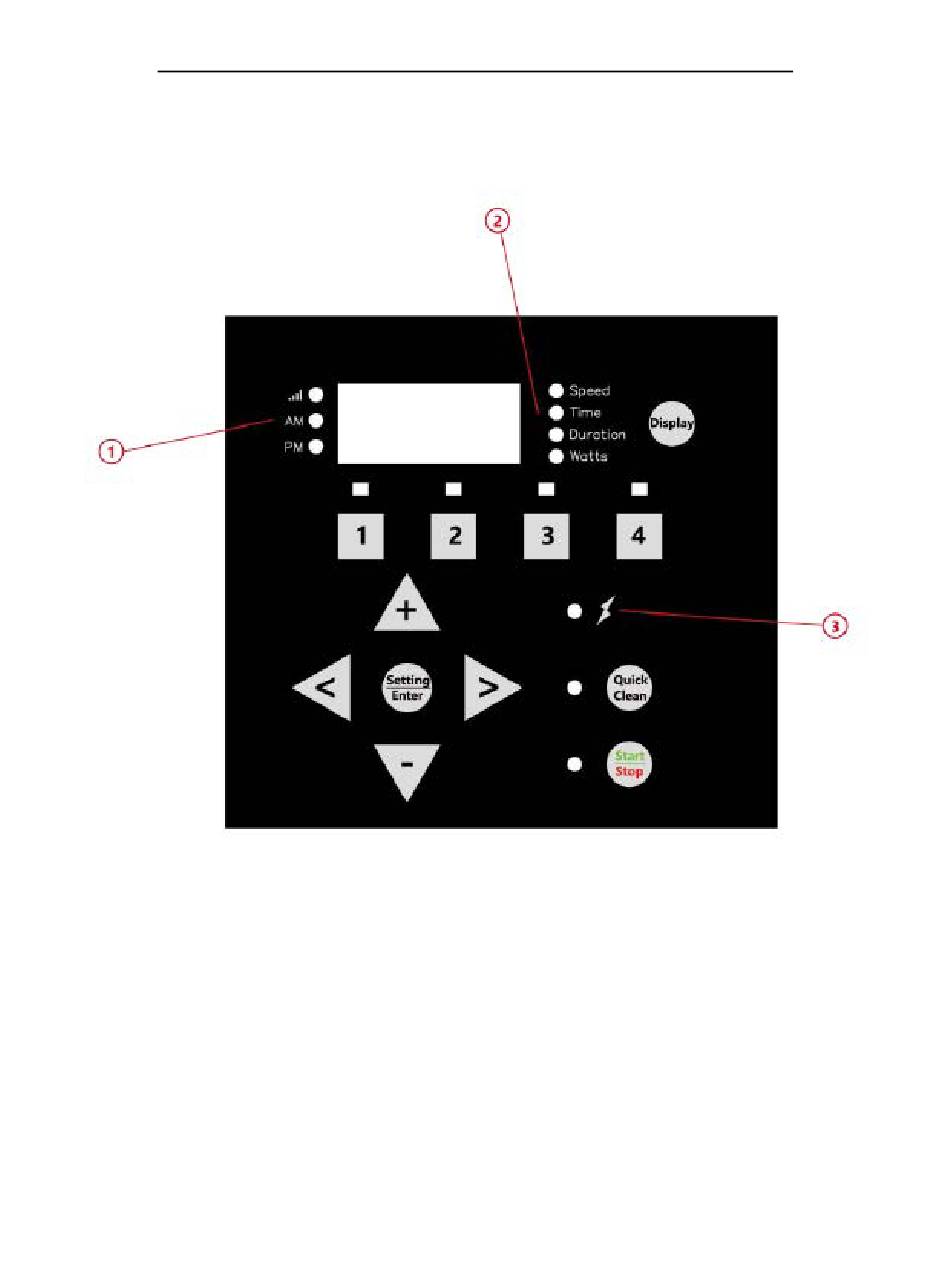

1. AM/PM Indicator Light: Used to show whether the current time is in AM or PM
2. Speed/Duration/Time/Watts Indicator Light: Will have a glowing green light to show
which measurement is being displayed.
3. Power Light: Will glow red to show that the pump is receiving power
Advertisement
Table of Contents
Related Manuals for Doheny's 90950
Summary of Contents for Doheny's 90950
- Page 1 Programming the Doheny In-Ground Variable Speed Pumps Item numbers 90950 and 90951 1. AM/PM Indicator Light: Used to show whether the current time is in AM or PM 2. Speed/Duration/Time/Watts Indicator Light: Will have a glowing green light to show which measurement is being displayed.
- Page 2 1. Speed 1: Will have a green light above it to either show that speed 1 is currently running or to show that speed 1 is being adjusted. 2. Speed 2: Will have a green light above it to either show that speed 2 is currently running or to show that speed 2 is being adjusted.
- Page 3 Adjusting the Time Before making any changes to the default run schedule or starting the pump the time must first be set on the control panel. Follow the steps below in order to set the current time. 1. Press “Setting/Enter” to begin changing the time, the time light on the display will be highlighted and one of the digits on the display will flash.
- Page 4 Programming a Schedule First some important notes: • The minimum RPM that can be set is 1000 and the maximum is 3450. • The total duration between options 1 through 4 must be 24 hours or less. To begin the programming process first make sure that the pump is stopped and not running then follow the steps below.
- Page 5 Example Schedule For this example schedule, we would like the pump to follow the below information. • Start at 6 a.m. and run at 2850 rpm for 4 hours • Switch to a lower speed of 1500 rpm for 8 hours after that •...
- Page 6 Using a Quick Clean Cycle Quick Clean function similarly to the speeds in options 1 through 4 however will only run once and not repeat the following day unless manually set. To set a Quick Clean cycle use the steps below: 1.
