Sony SRF-M33 Service Manual

Ref. No. Part No. Description Remark
< SWITCH >
St 1-571-478-11 SWITCH, SLIDE (SENS) (US, Canadian)
St 1-571-478-11 SWITCH, SLIDE (FM MODE) (AEP, £, G, IT)
82 1-571-478~11 SWITCH, SLIDE (MEGA BASS) (#43)
< TRANSFORMER >
TL 1-404-444~91 TRANSFORMER, IF
ACCESSORIES & PACKING MATERIALS
FER OI AA IARI I
* 3~379-347-01 CUSHION (UPPER) (M33:US)
* 3-379-348-01 CUSHION (LOWER) (M133:US)
* 3-379-352-01 CARDBOARD (M33:US)
* 3-379-354-01 CARDBOARD (M43:US)
* 3-380-964~01 CUSHION (UPPER) (M43:US)
* 3-380-965-01 CUSHION (LOWER) (M43:US)
3-755-143-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH,
GERMAN, SPANISH, PORTUGUESE, DUTCH, SHEDISH,
ITALIAN) (Canadian, AEP, E, G, 17)
3-755-143-21 MANUAL, INSTRUCTION (ENGLISH) (US)
3-795-748-21 SAFETY INSTRUCTIONS, HEADPHONE (US)
8-952-364-80 HEADPHONE MDR-WOSL SET (M43:US)
8-953-314-95 HEADPHONE MDR-E757/BK SET
(Canadian, AEP, B, G, IT)
AEE BO IIIA IOI OI TORO DIA IO TIO I IAT LTT I I II TOE
JETER OR RU IAAI HOI IIIT
HARDWARE LIST
SOIC ROI IOI HOI IO.
#1 7-885-104-01 SCREW +P 2X6 TYPE
#2 7-685-106-19 SCREW +P 2X10 TYPE2 SLIT

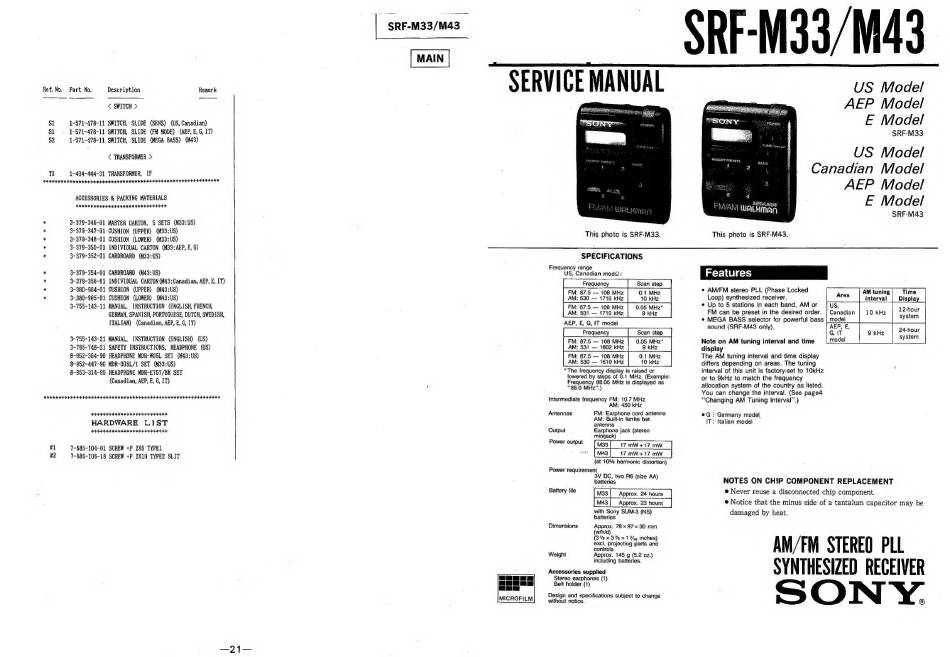

SERVICE MANUAL

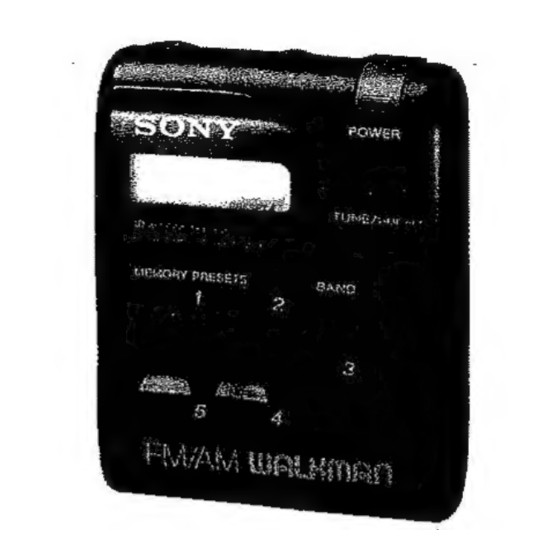

This photo is SRF-M33.
SPECIFICATIONS
Frequency range
US, Canadian mod! i
FM: 87.5 — 108 MHz 0.1 MHz
AM: 530 — 1710 kHz 10 kHz
FM: 87.5 — 108 MHz 0.05 MHz*
AM: 531 — 1710 kHz
9 kHz
AEP, E, G, IT model
Frequency Scan step
FM: 87.5 — 108 MHz 0.05 MHz*
AM: 531 — 1602 kHz 9 kHz
FM: 87.5 — 108 MHz 0.1 MHz
AM: 530 — 1610 kHz 10 kHz
* The frequency display is raised or
lowered by steps of 0.1 MHz. (Example:
Frequency 88.05 MHz is displayed as
"88.0 MHz")
Intermediate frequency FM: 10.7 MHz
AM: 450 kHz
Antennas FM: Earphone cord antenna
AM: Built-in ferrite bar
antenna
Output Earphone jack (stereo
minijack)
3V DC, two R6 (size AA)
batteries
with Sony SUM-3 (NS)
batteries
Accessories supplied
Stereo earphones (1)
Belt holder (1)
Design and specifications subject te change
without notice.
eee Canadian Model
, * AEP Model
e E Model
This photo is SRF-M43.
* AM/FM stereo PLL (Phase Locked AM tuning] Time
Loop) synthesized receiver. Area
interval | Display _|
* Up to § stations in each band, AM or US,
FM can be preset in the desired order. | Canadian | 10 kHz | 1&hour
display
The AM tuning interval and time display
differs depending on areas. The tuning
interval of this unit is factory-set to 10kHz
or to 9kHz to match the frequency
allocation system of the country as listed.
You can change the interval. (See page4.
"Changing AM Tuning Interval''.)
AM/FM STEREO PLL
SYNTHESIZED RECEIVER
SONY.
