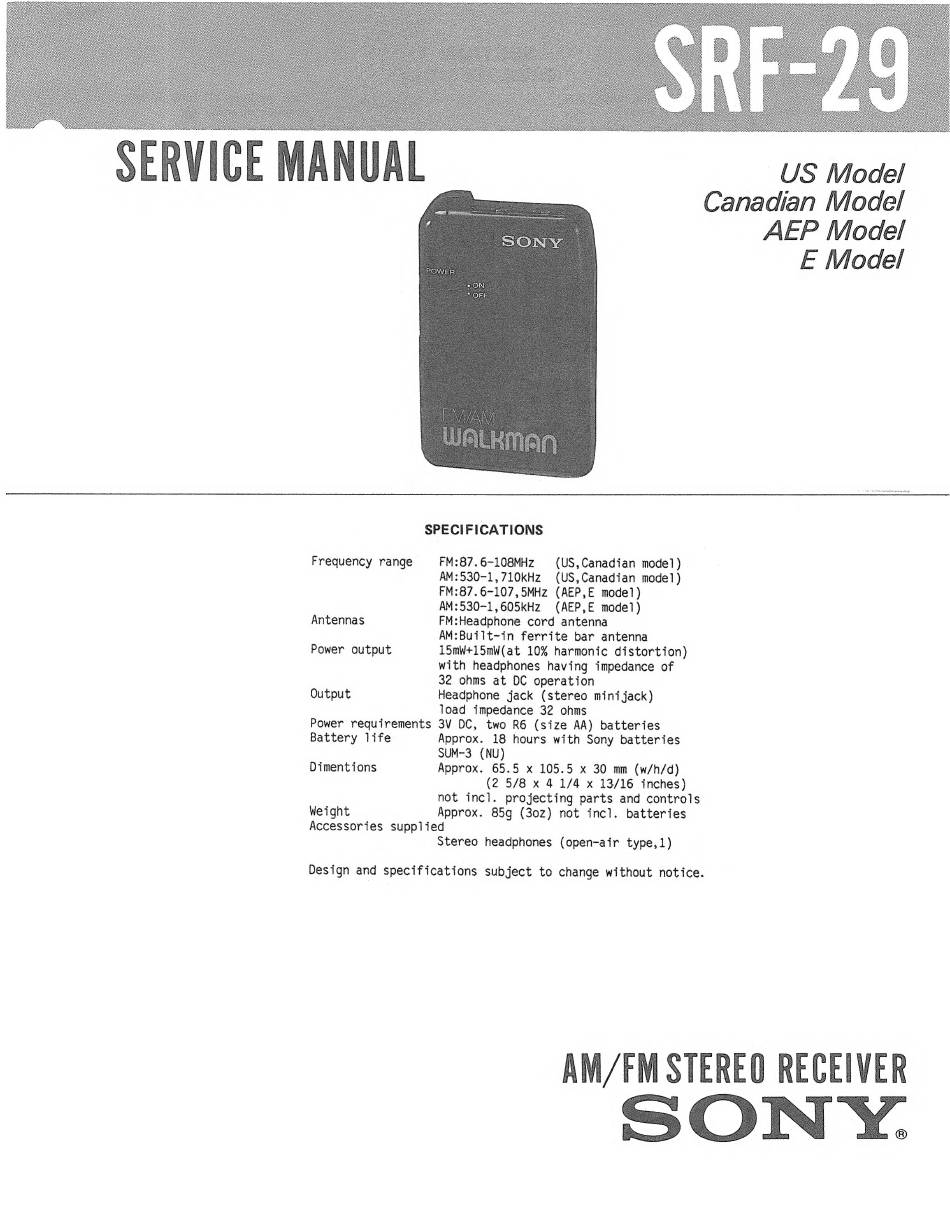

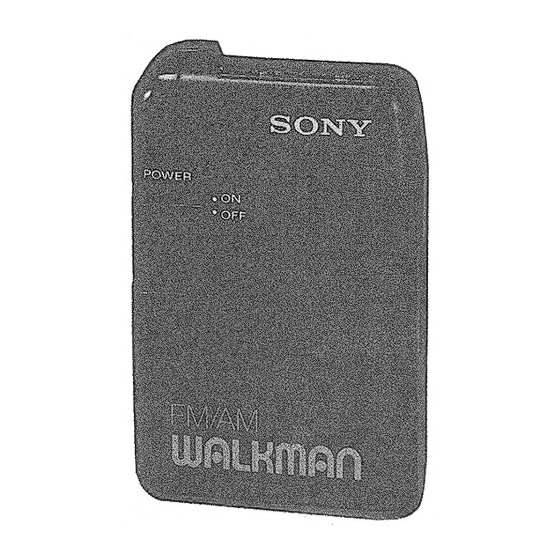

Sony SRF-29 Service Manual

SPECIFICATIONS
Frequency range
Antennas
Power output
Output
Power requirements
Battery life
Dimentions
Weight
FM:87.6-108MHz (US,Canadian model)
AM:530-1,710kHz (US,Canadian model)
FM:87.6-107,5MHz (AEP,E model)
AM:530-1,605kHz (AEP,E model)
FM:Headphone cord antenna
AM:Built-in ferrite bar antenna
15mW+15mW(at 10% harmonic distortion)
with headphones having impedance of
32 ohms at DC operation
Headphone jack (stereo mini jack)
load impedance 32 ohms
3V DC, two R6 (size AA) batteries
Approx. 18 hours with Sony batteries
SUM-3 (NU)
Approx. 65.5 x 105.5 x 30 mm (w/h/d)
(2 5/8 x 4 1/4 x 13/16 inches)
not incl. projecting parts and controls
Approx. 85g (30z) not incl. batteries
Accessories supplied
Stereo headphones (open-air type,1)
US Model
Canadian Model
AEP Model
E Model
