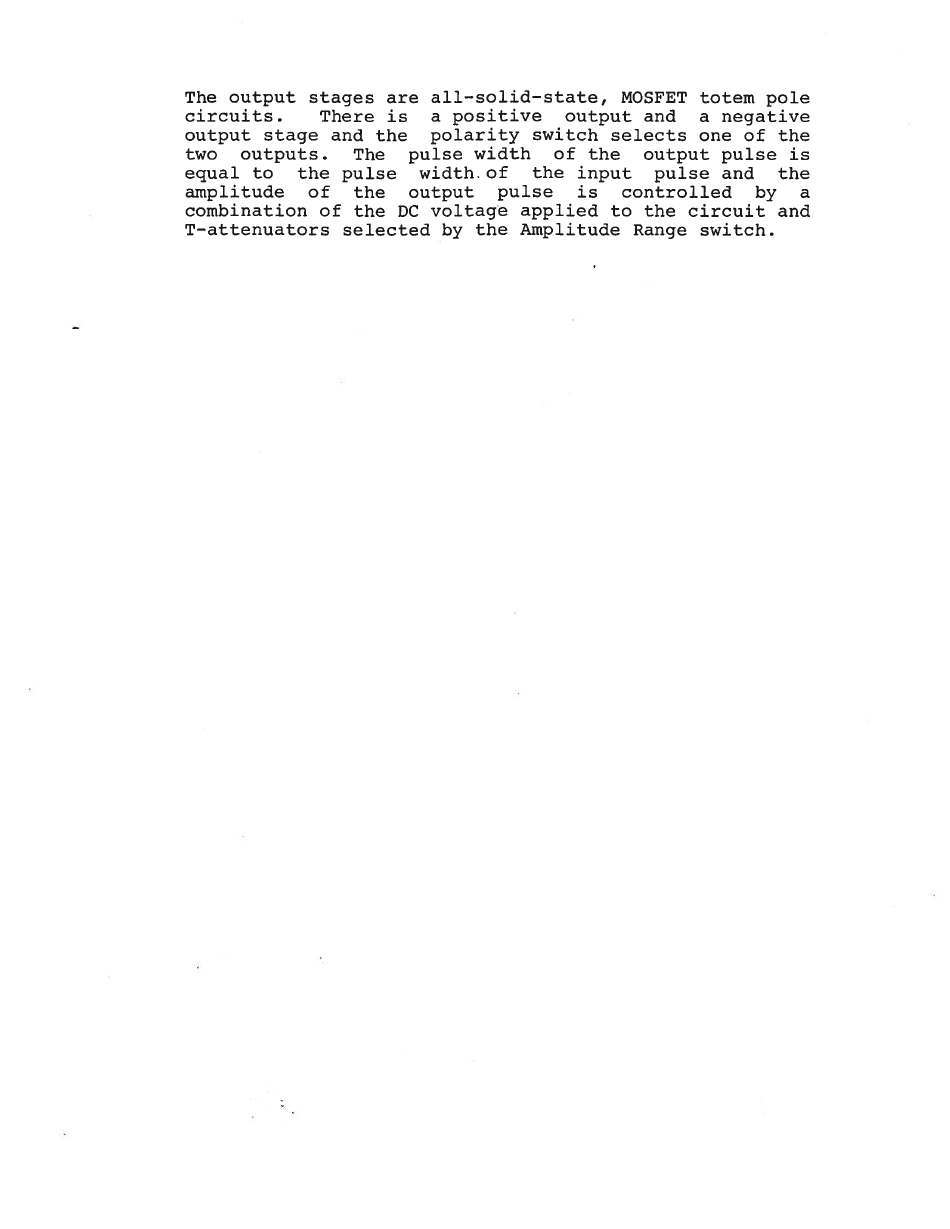

The
output
stages
are
all-solid-state,
MOSFET
totem
pole
circuits.
There
is
a positive
output
and
a negative
output
stage
and
the
polarity
switch
selects
one
of
the
two
outputs.
The
pulse
width
of
the
output
pulse
is
equal
to
the
pulse
width.of
the
input
pulse
and
the
amplitude
of
the
output
pulse
is
controlled
by
a
combination
of
the
DC
voltage
applied
to
the
circuit
and
T-attenuators
selected
by
the
Amplitude
Range
switch.
