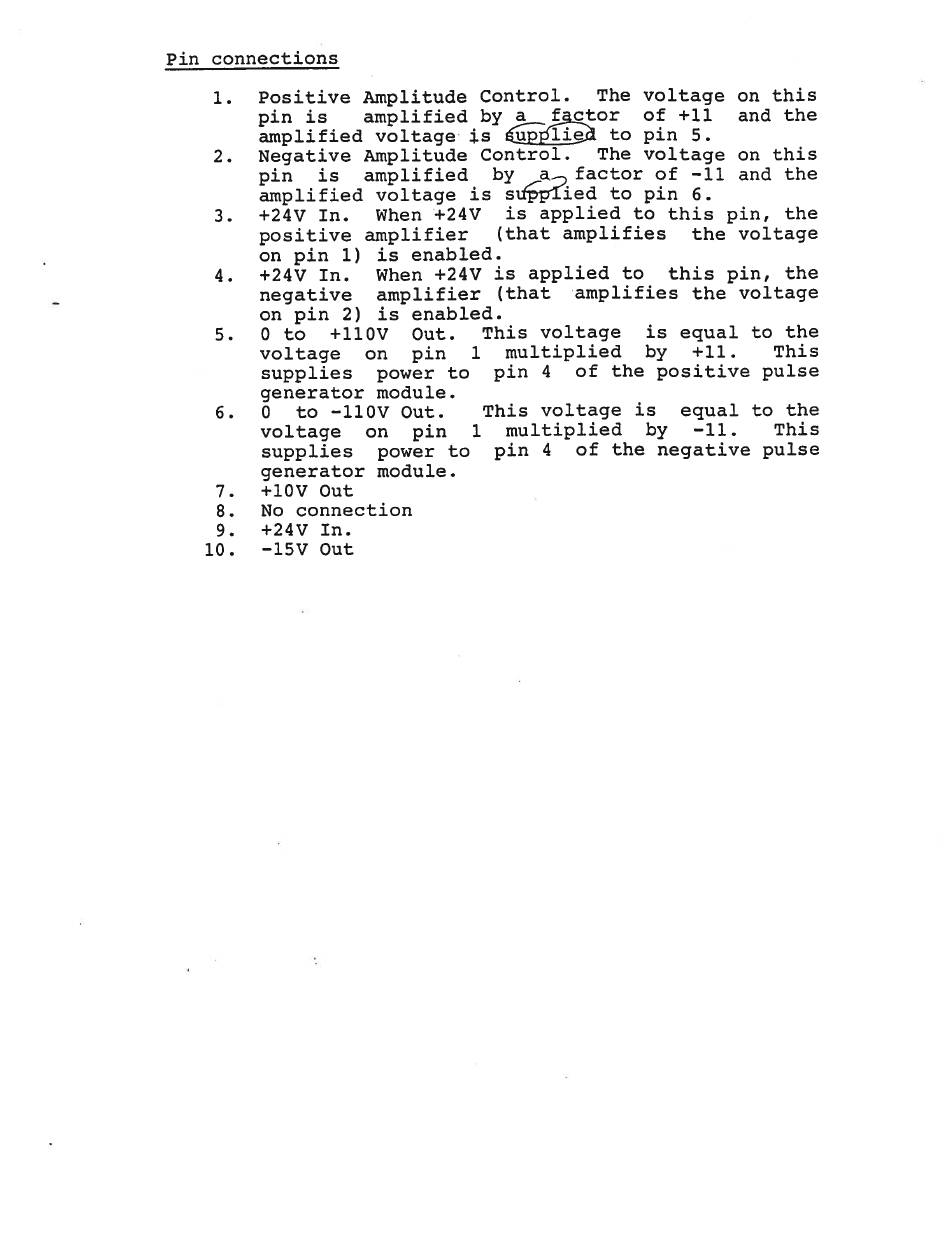

Pin
connections
1
2
Positive
Amplitude
Control.
The
voltage
on
this
pin
is
amplified
by
a_
factor
of
+11
and
the
amplified
voltage
is
to
pin
5.
Negative
Amplitude
Control.
The
voltage
on
this
pin
is
amplified
by
a.
factor
of
-11
and
the
amplified
voltage
is
supplied
to
pin
6.
+24V
In.
When
+24V
is
applied
to
this
pin,
the
positive
amplifier
(that
amplifies
the
voltage
on
pin
1)
is
enabled.
+24V
In.
When
+24V
is
applied
to
this
pin,
the
negative
amplifier
(that
amplifies
the
voltage
on
pin
2)
is
enabled.
0
to
+110V
Out.
This
voltage
is
equal
to
the
voltage
on
pin
1
multiplied
by
+11.
This
supplies
power
to
pin
4
of
the
positive
pulse
generator
module.
0
to
-110V
Out.
This
voltage
is
equal
to
the
voltage
on
pin
1
multiplied
by
-ll.
This
supplies
power
to
pin
4
of
the
negative
pulse
generator
module.
+10V
Out
No
connection
+24V
In.
-15V
Out
