Installing the Server
b) Attach the locking bezel.
Installing the Cable Management Arm (Optional)
Note
Step 1
With the server pushed fully into the rack, slide the CMA tab of the CMA arm that is farthest from the server onto the
end of the stationary slide rail that is attached to the rack post. Slide the tab over the end of the rail until it clicks and
locks.

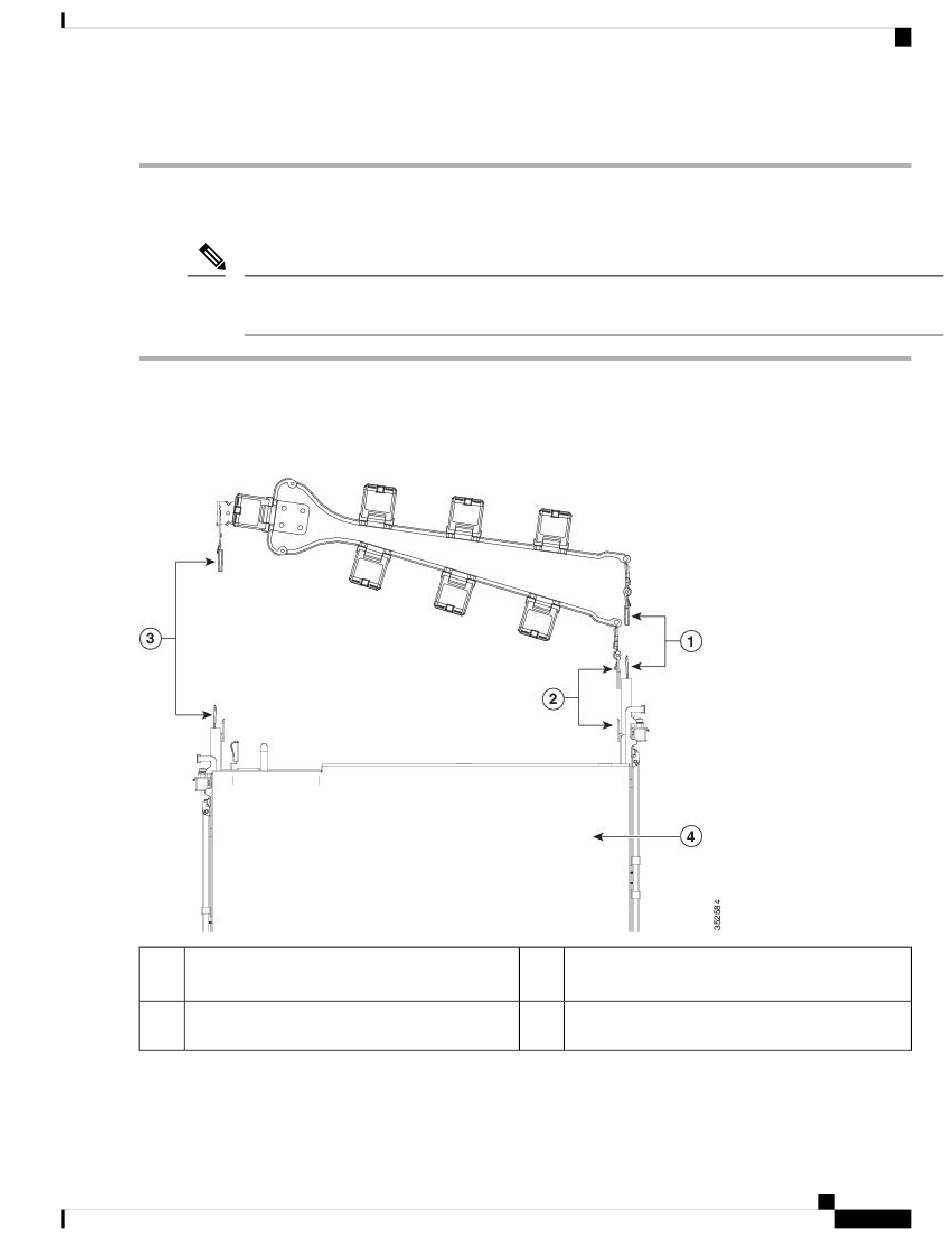

Figure 4: Attaching the CMA to the Rear Ends of the Slide Rails
1
CMA tab on arm farthest from server attaches to
end of stationary outer slide rail.
CMA tab on arm closest to the server attaches to
2
end of inner slide rail attached to server.
Step 2
Slide the CMA tab that is closest to the server over the end of the inner rail that is attached to the server. Slide the tab
over the end of the rail until it clicks and locks
The cable management arm (CMA, UCSC-CMA-C220M6) is reversible left-to-right. To reverse the CMA,
see
Reversing the Cable Management Arm (Optional), on page 10
Installing the Cable Management Arm (Optional)
before installation.
3
CMA tab on width-adjustment slider attaches to end
of stationary outer slide rail.
Rear of server
4
Installing the Server
9
