Genlantis FirstResponder SteriZAP E72WHVAC Quick Start Manual

SteriZAP
Catalog # Description/Content
E72WHVAC SteriZAP™ UV-C HVAC Sterilizer, 72W,
110V-220V

INTRODUCTION

UV-C light is electromagnetic radiation with wavelengths shorter than visible light. UV-C can be separated into various wavelength ranges, with the short-wavelength
UV-C considered to be germicidal. Furthermore, and at the specific wavelength range of 260 to 270 nm, UV-C is found to be mutagenic to bacteria, viruses and
other microorganisms. Germicidal UV-C kills or inactivates microorganisms by destroying their nucleic acids and disrupting their DNA, leaving them unable to
perform vital cellular functions.
The SteriZAP™ UV-C HVAC Sterilizer harnesses the germicidal power of UV-C light, in particular in the 254 nm wavelength. This unit uses shortwave UV-C lamps
that emit ultraviolet light with the major peak output (~90%) band at 253.7 nm. The doped fused quartz glass tubes of the SteriZAP lamps passes the 254 nm
radiation (which produces very low ozone levels) but blocks the 185 nm wavelength (which produces higher ozone levels).
Once installed into the HVAC system, the SteriZAP HVAC Sterilizer's shortwave UV-C light will eliminate airborne germs and contaminants and will leave the air
cleaner. This unit is suitable for hospital rooms, schools, apartments, offices, fitness rooms, restaurants, gyms, hotel rooms, etc.

Specifications

Power Consumption
UV-C Bulb Power Output
Number of Bulbs
Irradiance
Dimensions (L x W x H)
Amperage
Ambient Operating Temperature 80°F (26.7°C)
Bulb Wavelength
Voltage
Bulb Lifetime
Ballast Type
Materials Build
Mounting

SAFETY NOTIFICATION:

UV-C radiation can damage the superficial tissues of the eye, and care must be taken to avoid any exposure to
the eyes. Wear eye protection at all time, such as glass or plexiglass eyewear, or face mask in case of
accidental exposure to UV-C light. Exposure of unprotected skin to UV-C for extended periods of time may
cause skin burn and possible damage to cellular or tissue DNA. In case of robot malfunction, turn the unit off
using the emergency stop button, and flip the power switch off (Section 6, Step 2)

PRECAUTIONS AND WARNINGS

(a) Read all instructions before using the unit. Use of this unit is only for intended purposes as described in this manual.
(B) FOR SAFE AND PROPER OPERATIONS, DO NOT TAMPER WITH THE UNIT IN ANY WAY.
(C) DO NOT EXPOSE UNIT TO LIQUIDS OF ANY KIND. KEEP UNIT AWAY FROM HIGH VAPOR AND MIST ENVIRONMENTS.
(d) It is normal for the unit to emit a small amount of ozone gas when operating; briefly aerate the area afterward if needed.
(e) Do not operate if the unit or the power cord are damaged or not working properly.
Note and Disclaimer
*The SteriZAP™ UV-C HVAC Sterilizer is not a replacement or substitute for multi stage or HEPA air filtration. Genlantis /FirstResponder Technologies makes no claims and offers
no guarantees of any kind that the SteriZAP™ UV-C HVAC Sterilizer will eliminate or reduce all contaminants and under all possible circumstances. For best results, users should
closely follow the recommended instructions below.

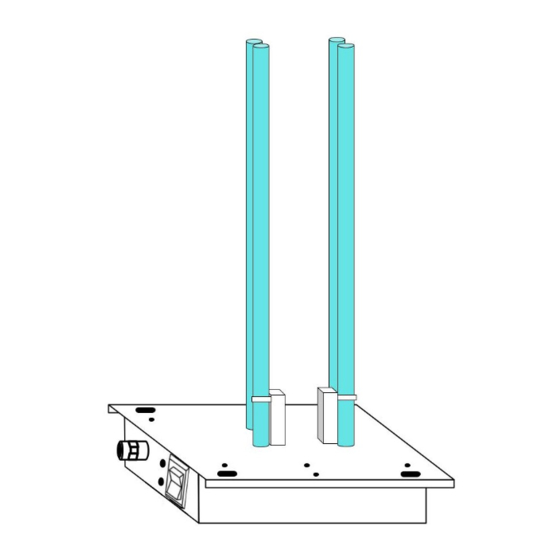

UV-C HVAC Sterilizer
®
Contents
SteriZAP Base
UV-C bulb, 2 each
Sticker template, 1 each
Screws, 4 each
Gloves, 1 each
Catalog Number: E36WVAC
36 Watts
12 Watts
One
110 µW/cm @ 3 feet (~1 meter)
2
9.6 x 7.4 x 17.3 inches (244.6 x 187 x 440 mm)
1.5A
254 nm UV-C fluorescent bulb
110-120V AC. / 220-240V AC. - 50/60 Hz
8,000 hours
Electronic, PF>0.9
304 Stainless steel box/casing
HVAC air duct, UV-C bulb internal
