Genlantis FirstResponder Spider FR700UVCP Quick Start Manual

Catalog # Description/Content
FR700UVCP FirstResponder Spider
remote control

INTRODUCTION

UV-C light is electromagnet radiation with wavelengths shorter than visible light. UV-C can be separated into various wavelength ranges, with the short-wavelength
UV-C considered to be germicidal. Furthermore, and at the specific wavelength range of 260 to 270 nm, UV-C is found to be mutagenic to bacteria, viruses and
other microorganisms. Germicidal UV-C kills or inactivates microorganisms by destroying their nucleic acids and disrupting their DNA, leaving them unable to
perform vital cellular functions.

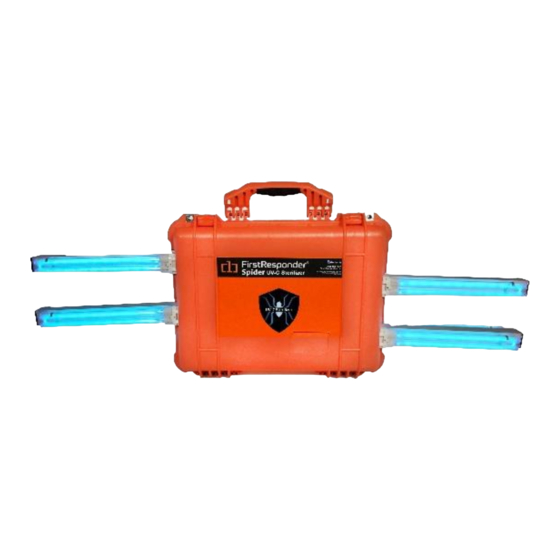

FirstResponder Spider UV-C Sterilizer
TM
contains four fold-out arms with 2 UV-C bulbs each, for a total of 8 UV-C bulbs that deliver maximum wattage and range. This unit outputs germicidal UV- light in
254 nm wavelength range and emits ultraviolet light with the major peak output (~90%) band at 253.7 nm. The doped fused quartz glass tubes of the FirstResponder
lamps pass the 254 nm radiation (which produces very low ozone levels) but blocks the 185 nm wavelength (which produce higher ozone levels). The
FirstResponder® Spider UV-C Sterilizer is intended for use in disinfection of surfaces in police, first responder, or any other vehicles, as well as small hospital rooms,
food-processing areas, or any other places where disinfecting and sterilization are desired.

Specifications

Electrical 110V, 50/60 Hz, UL 1167
UV-C Light Bulbs 24 watts per bulb; total of 8 bulbs and 192 watts
Unit Dimensions Closed: 19.78 x 15.77 x 7.41 inches (50.2 x 40.06 x 18.82 cm)
(W x D x H) Fully open length in horizontal position: 45 inches (see Figure 2)
Fully open height in vertical position: 21 inches (see Figure 2)
Operating Mode On/Off; 2 hours, 4 hours, 6 hours, and 8 hours timer modes.
Remote Control Battery 23Amps, 12 volts
Maximum UV-C Output 1,560 µW/cm
Weight 21 lbs. (9.52 kg)
Warranty 1 year for control board and lamp ballasts; 90 days for UV-C bulbs

PRECAUTIONS AND WARNINGS

(a) Read all instructions before using the devices. Use of these devices is only for intended purposes as described in this manual.
(B) DO NOT ATTEMPT TO OPERATE THE DEVICE WHEN AND WHERE PEOPLE AND ANIMALS ARE PRESENT AND DIRECTLY EXPOSED TO THE UV-C LIGHT.
(C) FOR SAFE AND PROPER OPERATIONS, DO NOT TAMPER WITH THE UNIT IN ANY WAY.
(d) It is normal for the device to emit a small amount of ozone gas when operating; briefly aerate the area afterward if needed.
(e) Do not operate the device if the cord or plug are damaged, if it is not working properly, or if the unit has been damaged or dropped.
(f) Do not store the device outdoors, or use it near open water– for example near filled sinks or water baths.
(g) Do not attempt to repair or open the device unless you are a qualified repair technician.
(h) To avoid injury, handle broken lamps carefully by using protective hand, face, and eye gear. Dispose of broken glass in sharps containers and obey all applicable laws.

DOSAGE RECOMMENDATIONS

Different germs and contaminants are susceptible to UV-C radiation at different rates. To determine the amount of time needed for sterilization,
consult Table 1 on Page 3.

SAFETY NOTIFICATION:

UV-C radiation can damage the superficial tissues of the eye, and care must be taken to avoid excessive exposures to eyes. Glass or plexiglass eyewear or face mask
can provide protection in case the motion sensor safety shut off malfunctions. Also, extended exposure of exposed skin to UV-C make cause damage to cellular or
tissue DNA and should be avoided by wearing protective clothing while near operating UV-C lamps.
Note and Disclaimer
*The FirstResponder® UV-C Spider Sterilizer is not a replacement or substitute for good cleaning practices. Areas to be sterilized must be free of excess contaminants, especially any
visible liquids or solids (for example bodily fluids, debris or dirt). The FirstResponder Spider UV-C Sterilizer can eliminate or reduce residual surface contaminants, especially bacterial
and fungal, but only if the UV-C light is able to directly impact the contaminated surfaces. Any surfaces or items that are covered or are behind curtains, glass panels or plastic
sheeting will not be sterilized by the FirstResponder Spider UV-C Sterilizer. Genlantis makes no claims and offers no guarantees of any kind that the FirstResponder® Spider
UV-C Sterilizer will eliminate or reduce all contaminants and under all possible circumstances. For best results, users should closely follow the recommended instructions below.
Spider
Quantity
UV-C Sterilizer, 110V with 1 Unit
TM
is the latest device from Genlantis to address the need for vehicle or small space sterilization by UV-C light. This device
@ 12 inches
2
UV-C Sterilizer
TM
