Genlantis FirstResponder E900FRUR Quick Start Manual

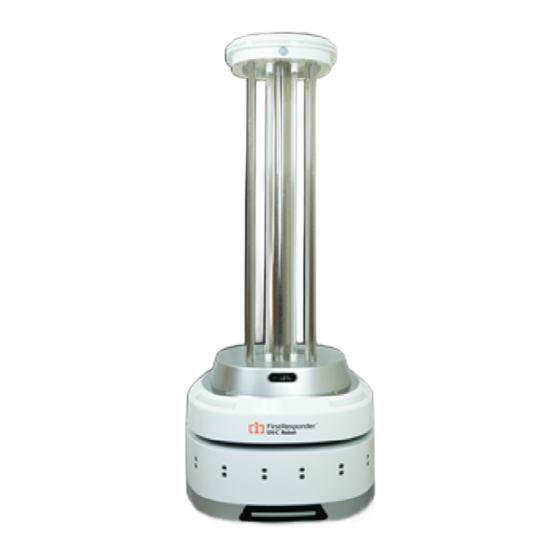

FirstResponder® UV-C Robot
Catalog # Description/Content
E900FRUR FirstResponder® UV-C Robot, 120-
240V
INTRODUCTION
UV-C light is electromagnetic radiation with wavelengths shorter than visible light. UV-C can be separated into various
wavelength ranges, with the short-wavelength UV-C considered to be germicidal. Furthermore, and at the specific wavelength
range of 260 to 270 nm, UV-C is found to be mutagenic to bacteria, viruses and other microorganisms. Germicidal UV-C kills or
inactivates microorganisms by destroying their nucleic acids and disrupting their DNA, leaving them unable to perform vital cellular
functions.
The FirstResponder® UV-C Robot harnesses the germicidal power of UV-C light, in particular in the 254 nm wavelength. This unit
uses shortwave UV-C lamps that emit ultraviolet light with the major peak output (~90%) band at 253.7 nm. The doped fused
quartz glass tubes of the FirstResponder lamps pass the 254 nm radiation (which produces very low ozone levels) but blocks the
185 nm wavelength (which produce higher ozone levels).
The FirstResponder® UV-C Robot is an autonomous sterilization device with great features and easy to use Apple® iPad Mini®
Tablet interface. The unit will scan and build a map of as many locations as you need, and once the maps are built, all that is
needed is to program and run the robot for efficient sterilization of air and surfaces. For extra safety, the robot will automatically
shut down if it detects any movement via its sensitive motion detectors. Once the unit is finished, it will automatically return to its
charging pile where it will recharge its internal batteries.
The FirstResponder UV-C Robot is intended for use in disinfection of air and surfaces in laboratories, hospital or clinic rooms,
schools, food-processing areas, meeting spaces, conference rooms, or any other trafficked locations like business offices and
hallways.
Specifications
UV-C Lamps 30W per lamp, 240W total (8 lamps); 253.7 nm
CPU RK3288, quad-core
Memory 2GB RAM; 8GB Flash
Battery Lithium ion; 40AH, 24V; 8 hours standby time; ≥ 3 hours working time
WiFi Supports 2.4/5G 802.11 b/g/n
Lidar Sensor Scanning radius: 25 m (82 feet)
Navigation Accuracy: ±5 cm (2 inches); travel speed: 0.5 meters/second (1.6 feet/second)
Charger Input voltage: 120-240 volts AC; output: 25.2V, 10A
Dimensions and Weight Robot: 132 x 50.8 x 50.8 cm (52 x 20 x 20 inches), 35 kg (77 lbs). Charging pile: 35.6 x 15.3 x 31.75 cm (14 x 6 x 12.5 inches),
Warranty 1 year
SAFETY NOTIFICATION:
UV-C radiation can damage the superficial tissues of the eye, and care must be taken to avoid any exposure to
the eyes. Wear eye protection at all time, such as glass or plexiglass eyewear, or face mask in case of
accidental exposure to UV-C light. Exposure of unprotected skin to UV-C for extended periods of time may
cause skin burn and possible damage to cellular or tissue DNA. In case of robot malfunction, turn the unit off
using the emergency stop button, and flip the power switch off (Section 6, Step 2)
Apple and iPad Mini are trademarks of Apple Inc., registered in the U.S. and other countries.
Note and Disclaimer
*The FirstResponder® UV-C Robot is not a replacement or substitute for good cleaning practices. Areas to be sterilized must be free of excess contaminants, especially any visible
liquids or solids (for example bodily fluids, debris or dirt). The FirstResponder UV-C Robot can eliminate or reduce residual surface contaminants, especially bacterial and fungal, but
only if the UV-C light is able to directly impact the contaminated surfaces. Any surfaces or items that are covered or are behind curtains, glass panels or plastic sheeting will
not be sterilized by the unit. Genlantis makes no claims and offers no guarantees of any kind that the FirstResponder® UV-C Robot will eliminate or reduce all contaminants and
under all possible circumstances. For best results, users should closely follow the recommended instructions below.
Contents
Robot unit
Charging pile
Power cable
3-Pin charging cable
Apple® iPad Mini® Tablet
