INTRODUCTION

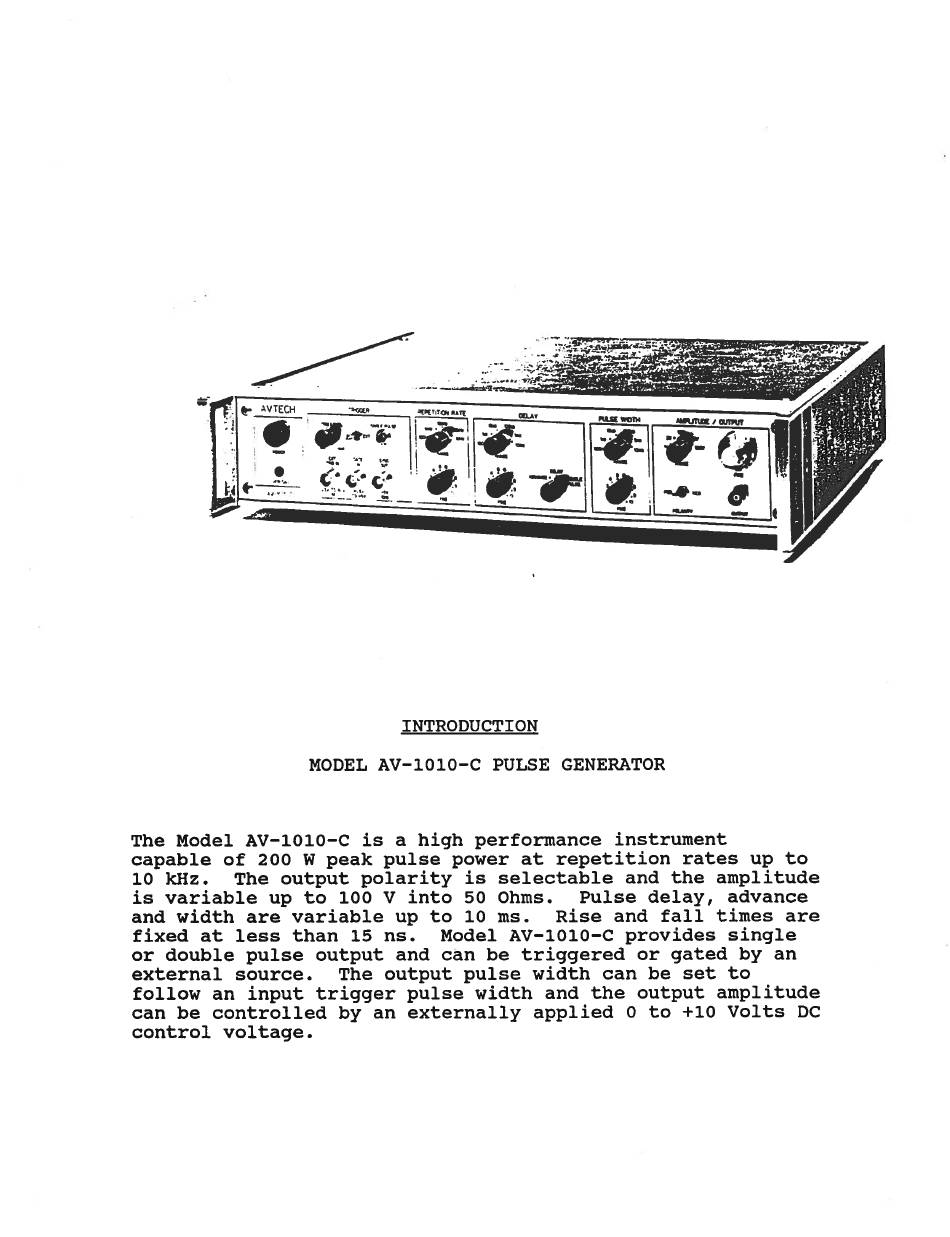

MODEL AV-1010-C PULSE GENERATOR
The Model AV-1010-c is a high performance instrument
capable of 200 W peak pulse power at repetition rates up to
10 kHz. The output polarity is selectable and the amplitude
is variable up to 100 V into 50 Ohms. Pulse delay, advance
and width are variable up to 10 ms. Rise and fall times are
fixed at less than 15 ns. Model AV-1010-C provides single
or double pulse output and can be triggered or gated by an
external source. The output pulse width can be set to
follow an input trigger pulse width and the output amplitude
can be controlled by an externally applied 0 to +10 Volts DC
control voltage.
