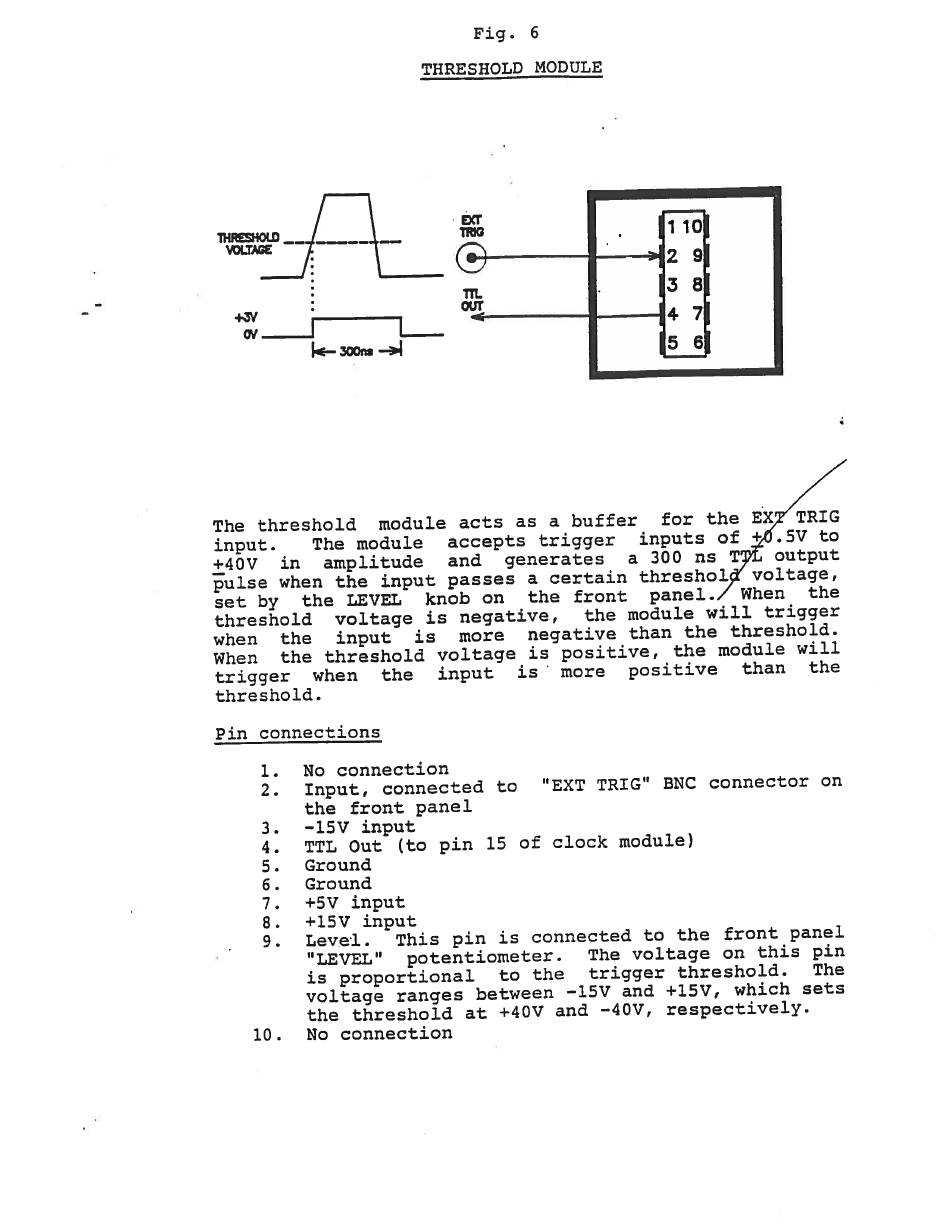

Fig.
6
THRESHOLD
MODULE
Pin
connections
1.
No
connection
2.
Input,
connected
to
"EXT
TRIG"
BNC
connector
on
the
front
panel
.
@wi5V
input
.
TTL
Out
(to
pin
15
of
clock
module)
. -
Ground
.
Ground
.
+5V
input
.
+15V
input
.
Level.
This
pin
is
connected
to
the
front
panel
"LEVEL"
potentiometer.
The
voltage
on
this
pin
is
proportional
to
the
trigger
threshold.
The
voltage
ranges
between
-15V
and
+15V,
which
sets
the
threshold
at
+40V
and
-40V,
respectively.
10.
No
connection
