ZXHN F2886Q
XGS-PON ONT
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXHN F2886Q and is the answer not in the manual?

Questions and answers

Related Manuals for Zte ZXHN F2886Q

Summary of Contents for Zte ZXHN F2886Q

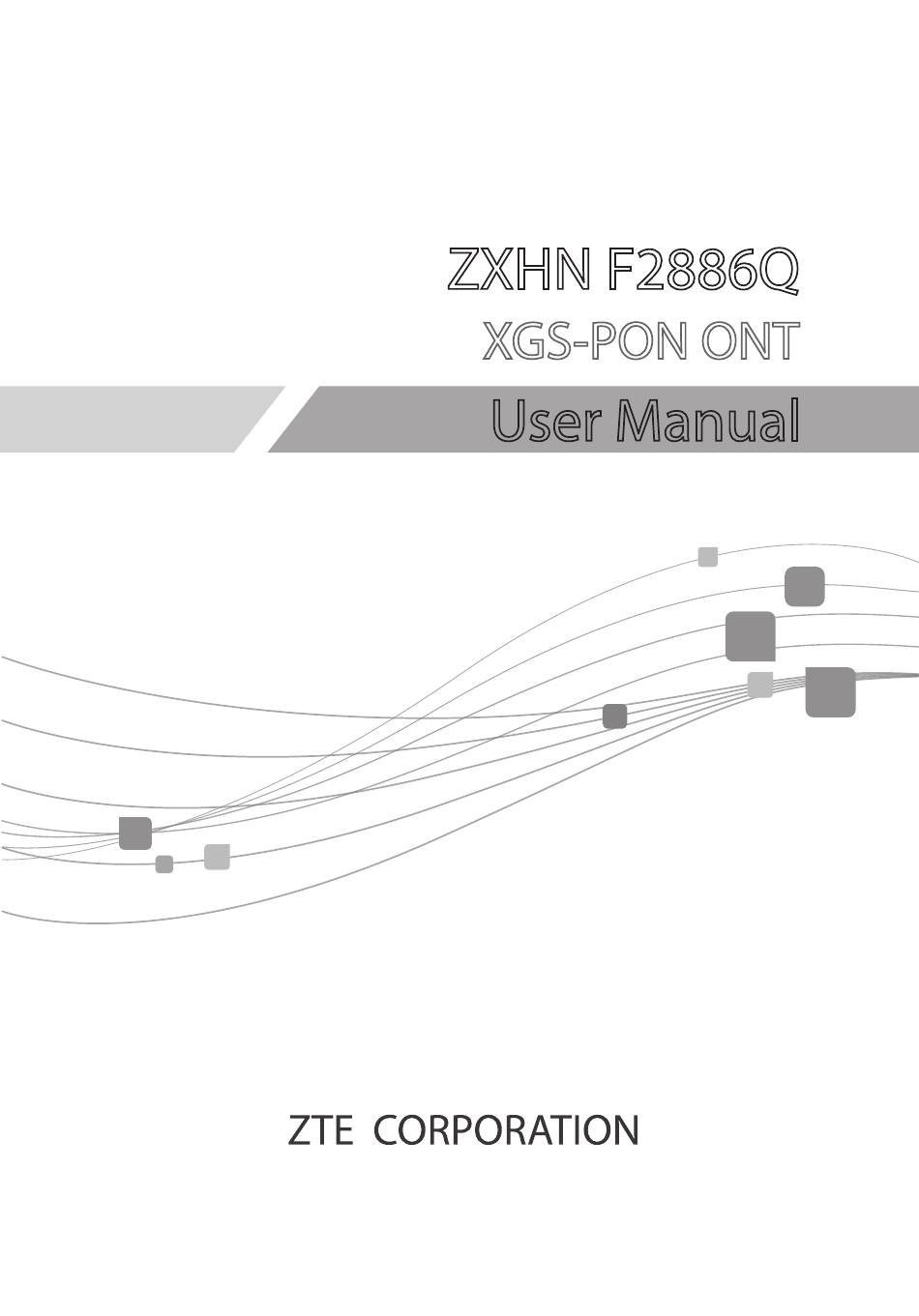

  • Page 1 ZXHN F2886Q XGS-PON ONT User Manual...
  • Page 2 All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respe- ctive owners. This document is provided “as is”, and all express, implied, or statutory...

  • Page 3: Safety Precautions

    Safety Precautions Note Before using the device, read the following safety precautions. ZTE bears no liabili- ty to the consequences incurred by violation of the safety instructions. Usage Cautions  Read all the safety cautions carefully before using the device.

  • Page 4: Environment Protection

     Do not place the device near any source of heat or water.  Keep the device away from any household appliances with strong magnetic or electric fields, such as microwave oven and refrigerator. Cleaning Requirements  Before cleaning, power off the device, and unplug all the cables connected to the device, such as power cable, optical fiber, and Ethernet cable.

  • Page 5: Package Content

    Package Content Please make sure the ZXHN F2886Q package contains the items, refer to Table 2-1. Table 2-1 Package Contents Name Quantity ZXHN F2886Q unit AC-DC power supply adapter...

  • Page 6: Hardware Description

    PC. Provides the Internet access and IPTV services.  Phone service access: Supports SIP protocol.  WLAN: Users can connect to the ZXHN F2886Q through WLAN.  Security: Provides multi-level authentication based on the device, user and ser- vice, and provides the data channel encryption for safety.
  • Page 7 Figure 4-1 Indicators on the Front Panel Table 4-1 describes the indicators of the unit. Table 4-1 Indicators on the Front Panel Indicator Color Status Description POWER The ONT is powered off. Solid Green The ONT is powered on.
  • Page 8 Indicator Color Status Description The ONT is powered off or no optical fiber is inserted. Flashing Green Flashing quickly (twice per second): The device is being registered and configured under the OLT. Flashing slowly (once per second): The ONU is upgrading the version.
  • Page 9 Indicator Color Status Description Flashing Green Voice service traffic is being transmitted or re- ceived. The ONT is powered off.  The WPS function is disabled.  Solid yellow WPS is enabled during automatic negotiation. Solid Green The WPS auto-negotiation is successful. Solid Red Session overlapping check or automatic nego- tiation fails.
  • Page 10 Indicator Color Status Description Flashing Green The bluetooth function is enabled and the new equipment is being paired. *10GE The ONT is powered off.  No network cable is connected.  Solid Green The ONT is powered on and negotiated with the peer end.
  • Page 11 Figure 4-2 Interfaces and Buttons on the Side Panel Table 4-2 describes the interfaces and buttons of the unit.

  • Page 12: Product Specification

    The POTS interface has a cover plate.  The WPS and Wi-Fi buttons are on the front side of the device.  Product Specification For the product specifications of the ZXHN F2886Q , refer to Table 5-1. Table 5-1 Product Specifications Technical Specifications...

  • Page 13: Cable Connection

    The device provides home users and small-size business users with the XGS-PON uplink optical access and internal networking functions through a 10 Gbps electri- cal interface or a Wi-Fi interface. Figure 6-1 shows the devices that are connected to the ZXHN F2886Q device.
  • Page 14 Figure 6-1 Entire Connection After the power indicator is lit and other indicators operate properly, services of the carrier can be used. The factors affecting the wireless network coverage range include the location of the product, distance between the product and a wireless terminal, number of ob- stacles, obstacle material and density, and interference source.

  • Page 15: Troubleshooting

    ed that you place the product in accordance with the following principles to maxi- mize the strength of wireless signals.  The product should be far away from the objects affecting wireless signal prop- agation, for example, an object with a high reflectivity such as a metallic object or a mirror.
  • Page 16 CERTIFICATION QC PASS...
