West Bend AFWB10BK13 - 10 QT. DOUBLEUP AIR FRYER Manual

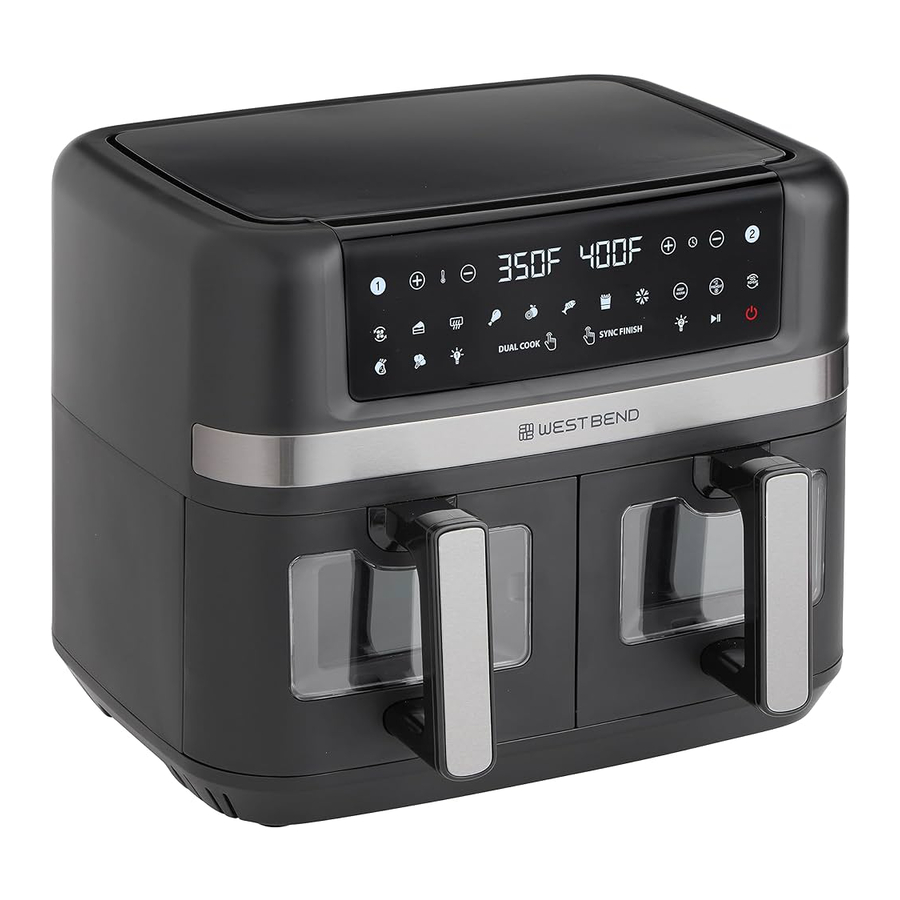

PRODUCT DIAGRAM

Congratulations on your purchase of a West Bend Dual Air Fryer!

1. Control Panel
2. Air Fry Rack
3. Lift Handle
4. Air Fry Basket
5. Viewing Window
6. Basket Handle
7. Vent Windows
8. Power Cord

BEFORE USE

You will now be able to cook a wide assortment of food in a healthier manner – with little or no oil!

The air fryer uses hot air, in combination with high-speed air circulation, and a top grill to prepare a variety of foods. There is usually no need to add oil in most cases.

1. Remove all packaging material, stickers, or labels from the appliance other than the rating label.
2. Wash the air fry racks, and air fry baskets in hot water, using a non-abrasive sponge. Rinse and dry thoroughly.
   Note: These parts can also be washed in the top rack of your dishwasher.
3. Place the appliance on a stable, horizontal, and heat-resistant surface.
4. Place the air fry racks in the frying baskets properly.

PRESET GUIDE

USING YOUR DUAL AIR FRYER

Note: When using the Air Fryer for the first time, a little smoke or odor may be emitted. If this happens, ensure there is sufficient ventilation around the appliance.

1. Plug the power cord into wall outlet. The appliance will beep, the power light will illuminate, and the Air Fryer will be in standby mode. Press the power button to turn the Air Fryer on.

Note: You must select 1 or 2 before selecting the cooking preset or set time and temperature. The air fry baskets can be used individually or simultaneously.

ONE BASKET, ONE FOOD

1. To use basket 1 or 2 individually, press or on the control panel. Once selected, the number will flash signaling that the cooking preset can be selected and time, and temperature can be set.

Note: will flash only for a few seconds. If the stops flashing before selection is made, be sure to press it again to select preset before setting time and temperature.

2. Select the desired preset. Depending on your selection, the cooking temperature and time will automatically be set to the default values.
3. To change the preset cooking temperature, press the Temperature +/- button.
4. To change the preset cooking time, press the Time +/- button.
5. Once the cooking preset has been set and the cooking temperature and time set (if necessary), press the Start button . The button will stop flashing, and the unit will beep. Then your Air Fryer will begin the cooking process.

Note: Presets with shake and turn reminders will beep 3 times half way through the cooking time to notify when to shake or turn your food.

6. During cooking, you can adjust the time and temperature. First press or to select the desired basket, then press +/- buttons associated with the time or temperature.
7. Once cooking is complete, the unit will beep 5 times before before the display turns off. The red power button will remain lit until the unit is unplugged.
8. Pull the basket using the easy grip handle to check on doneness. To adjust the time and temperature, first press or to select the desired basket, then press +/- buttons associated with the time or temperature.

Note: you can check on progress mid cycle by simple pulling out the Air Fry basket.

9. Using kitchen tongs, empty the contents of the tray into a bowl or onto a plate.

TWO BASKETS, TWO FOODS

1. To cook two foods at the same time, press on the control panel. Once selected, the number will flash signaling that the cooking preset can be selected and time, and temperature can be set.
2. Select the desired preset. Depending on your selection, the cooking temperature and time will automatically be set to the default values.
3. To change the preset cooking temperature, press the Temperature +/- button.
4. To change the preset cooking time, press the Time +/- button.
5. Then press on the control panel. Once selected, the number will flash signaling that the cooking preset can be selected and time, and temperature can be set.
6. Select the desired preset. Depending on your selection, the cooking temperature and time will automatically be set to the default values.
7. To change the preset cooking temperature, press the Temperature +/- button.
8. To change the preset cooking time, press the Time +/- button.
9. Once both baskets have been set, press the start button .
10. Presets with shake and turn reminders will beep 3 times halfway through the cooking time, to notify you when to shake or turn your food.
11. Once the cooking cycle is complete, pull the basket(s) using the easy grip handle to check on doneness. If you desire a crispier finish, simply slide the air fry basket back into the unit and cook for a few extra minutes.
12. To add additional time, press the air fry preset , then press the Time +/- button to set the desired time.

SYNC FINISH

Sync Finish can be used to cook two foods two ways, and have them done at the same time by programming each basket.

1. Place food in the baskets.
2. Press the button. The button will flash.
3. To program basket 1, press then select the desired preset. Adjust time, and temperature if necessary.
4. To program basket 2, press then select the desired preset. Adjust time, and temperature if necessary.
5. Press the Start button to begin cooking.
6. At the middle of the set cooking time, the unit will beep 3 times to remind you to turn or shake your food if desired.

DUAL COOK

Dual Cook can be used to cook two foods in two baskets in the same way.

1. Place food in the baskets
2. Press the button. The button will flash.
3. Press or then select the desired preset; set the time and temperature if necessary.
4. Press the Start button to begin cooking.
5. The second basket will automatically mirror the one that has been set.
6. If using a preset with shake or turn reminder, the unit will beep 3 times halfway through the cooking timer to remind you to turn or shake your food if needed.

CLEANING YOUR DUAL AIR FRYER

Clean the air fryer after each use. Air Fry Racks and Air Fry Baskets are coated with a PTFE free Diamond Shield^TM non stick coating for enhanced durability and easy clean up. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the coating.

1. Unplug the unit from the wall outlet
2. Let the unit cool down.
3. Wipe the outside of the appliance with a damp cloth.
4. Wash the Air Fry Racks and Air Fry Baskets in hot soapy water. Rinse and dry thoroughly.
   Note: These parts can also be washed in the top rack of your dishwasher.
5. Clean the heating element with hot soapy water and a cleaning brush to remove food residue.

Tip: If food residue has adhered to the air fry rack or the bottom of the air fry basket, fill the air fry basket with hot soapy water. Place the air fry rack in the air fry basket and soak for approximatley 10 minutes.

This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See warranty available online.

HELPFUL HINTS

Tips:

• Smaller food usually require a slightly shorter preparation time than larger food.
• Shaking smaller foods halfway through the cooking time improves the end result and can help prevent unevenly fried ingredients.
• Lightly coat fresh potatoes with a little oil for a crispier result.
• Do not air fry extremely greasy ingredients such as sausages in the air fryer.- Snacks that can be prepared in an oven can also be prepared in the air fryer.
• For optimal result, we recommend air frying up to 500 grams (16oz) of fries at a time.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• The air fryer can also be used to reheat food. To reheat food, simply press the reheat preset.
  The default temperature will appear on the screen, then flash to display the default to time. The default time and temperature can be adjusted by pressing the +/- buttons associated with the time or temperature.

HOME-MADE FRIES: For the best results, pre-baked fries are recommended. If you want to make home-made fries, follow the steps below:

1. Peel the potatoes and cut them into sticks.
2. Soak the potato sticks in a bowl of water for at least 30 minutes. Then remove the sticks from the water, and dry them on paper towels.
3. Pour ½ tablespoon of olive oil in a bowl, add the potato sticks, and mix until the sticks are coated with oil.
4. Remove the potato sticks from the bowl with kitchen tongs or other utensil so that excess oil stays behind in the bowl. Put the sticks in the tray.
   Note: To prevent excess oil from collecting at the bottom of the frying tray, do not tilt the bowl to pour all the sticks into the tray at once.
5. Fry the potato sticks according to the instructions provided in the Temperature Guide below.

TROUBLESHOOTING

TEMPERATURE GUIDE

Default Cooking Times & Temperatures

Note: We recommend preheating the air fryer before cooking.

1. To preheat the air fryer, press the preheat button.
2. The temperature and time will automatically be set to the default values.
3. The default temperature will appear on the screen, then flash to display the default to time.
4. The default time and temperature can be adjusted by pressing the +/- buttons associated with the time or temperature
5. Press the start button. The button will blink, and an audible alert will sound indicating that the Preheat cycle has begun.
6. Once preheat is complete, the air fryer will turn off.
7. Press the power button to turn off the appliance, then select your desired cooking function.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

1. Read all instructions before using this product.
2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
4. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
5. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors or for commercial purposes.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. The heating base is subject to residual heat from cooking cycle. Do not touch heating base immediately after using. Allow to cool before handling.
13. Use caution when pulling out the basket during or after a cooking cycle. Escaping steam can cause burns.
14. Do not use appliance for other than intended use. Misuse can cause injuries.
15. Intended for household countertop use only. Keep 6 inches (152 mm) clear from the wall and on all sides. Always use appliance on a dry, stable, level surface.
16. Never operate this appliance by means of an external timer or separate remote-control system.
17.
    Spilled food can cause serious burns. Keep appliance and cord away from children. Never drape cord over edge of counter and never use outlet below counter.

POLARIZED PLUG

North American models with polarized plugs:

This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:
A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used on short-cord models:

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
2. When the product is of the grounded type, the extension cord shall be a grounding type 3-wire cord; and
3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

Do not pull, twist or otherwise abuse the power cord.

NOTICES

1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your air fryer to prevent possible damage to the surface.
2. During initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.
