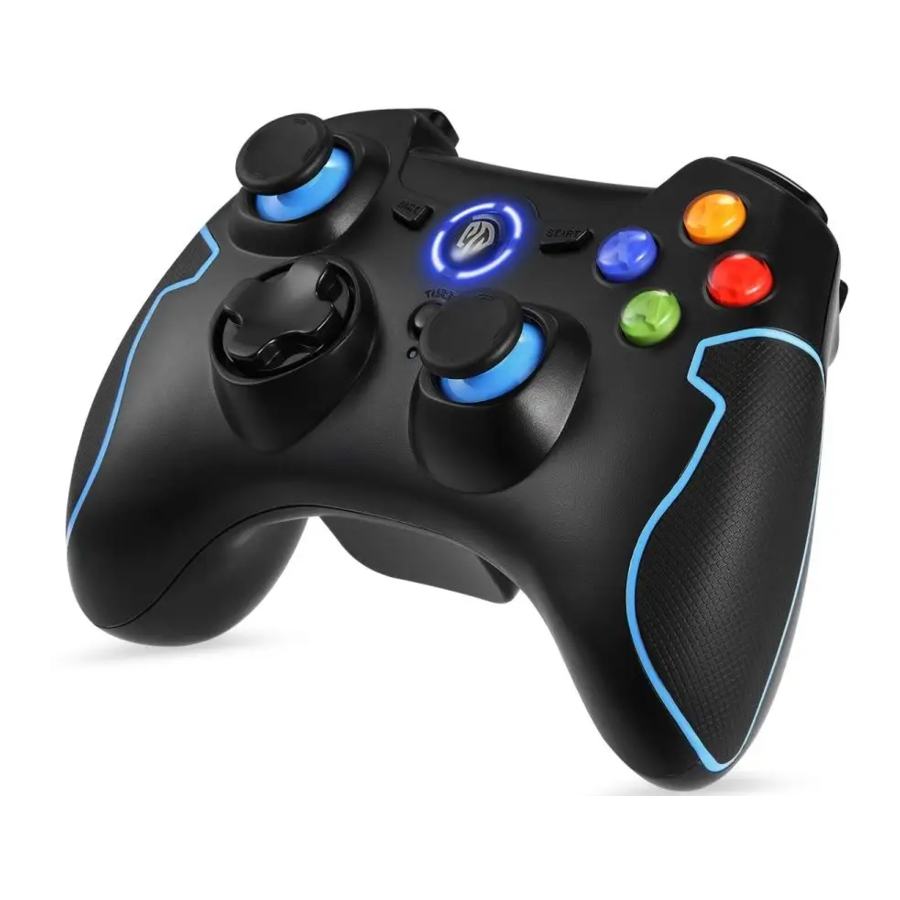

EasySMX Arion 9013 (ESM-9013) - Game Controller Manual

Introduction

Please read this manual carefully and keep it for your reference before using it.
Before its first use, please visit http://www.easysmx.com to download and install the driver.

Content

1 x Wireless Game Controller
1 x Wireless Adapter
1 x Manual

Specification

Tips

1. To avoid electricity accidents, please keep it away from water.
2. Do not dismantle.
3. Please keep the game controller and the accessories away from children or pets.
4. If you feel tired on your hands, please take a break.
5. Take breaks regularly to enjoy games.

Product sketch

Operation

Install the batteries properly.
Remove the battery cover and install the 2 AA batteries according to the instructions.
Note: The 1800mAh battery can work 20 hours for vibrating games and 90 hours for non-vibrating games.

Connect to PS3
Plug the USB receiver into one free USB port on the PS3 console. PressvHOME Button and when LED 1 stays on, it means the connection is successful.

Connect to PC

1. Insert the USB receiver into your PC. Press HOME Button and when LED1 and LED2 stay on it means that the connection is successful. At this time, the gamepad is in Xinput mode by default.
2. Under Xinput mode, press and hold the HOME Button for 5 seconds to switch to Dinput emulation mode. At this time, LED1 and LED3 will glow solid
3. Under Dinput emulation mode, press the HOME Button once to switch to Dinput digit mode, and LED1 and LED4 will stay on
4. Under Dinput digit mode, press the HOME Button for 5 seconds to switch to Android mode, and LED3 and LED4 will stay on. Press it for 5 seconds again to return to Xinput mode, and LED1 and LED2 stay on.
   Note: one computer can pair with more than one game controllers.

Connect to Android Smartphone/ Tablet

1. Plug the Micro-B/Type C OTG adapter or OTG cable (Not Included) into the USB receiver.
2. Plug the OTG adapter or cable into your phone or tablet.
3. Press HOME Button, and when LED3 and LED4 will keep on, indicating the connection is successful.
4. If the game controller is not in Android mode, please refer to step2-step5 in the"Connect to PC" chapter and make the controller in the right mode.

Note:

1. Your Android phone or tablet must fully support OTG function that needs to be on first.
2. Android games does not support vibration for now.

Button Test

Choose the mode you want to test

1. Insert the wireless adapter to the USB port to connect.
2. Click the "start" on the computer desktop and enter into "devices and printers".
3. The default mode is XINPUT (PC 360), No. 1 and No.2 indicator is on and the wireless game controller is" Xbox 360 Controller for Windows".

4. Right click the pattern and enter into the panel of "game controller", click the "property" to test the buttons on the game controller.


Low Battery Reminder

When the game controller is connected to some device, the correspondent LED indicators will flash slowly, indicating the controller is running low on batteries.

TURBO Button Setting

1. Press and hold any key you want to set with TURBO function, then press TURBO Button. The TURBO LED will start flashing, indicating setting is done. After that, you are free to hold this button during gaming to achieve fast strike.
2. Hold down this button again and press TURBO Button simultaneously to disable TURBO function.

FAQ

The game controller failed to connect?

1. Press HOME Button for 5 seconds to force it to connect.
2. Try another free USB port on your device or restart the computer.
3. Replace the batteries.

The controller failed to be recognized by my computer?

1. Make sure the USB port on your PC works fine.
2. Insufficient power might cause unstable voltage to your PC USB port. So try another free USB port.
3. A computer running Windows XP or a lower operating system needs to install game controller driver first.

Why can't I use this game controller in the game?

1. The game you are playing doesn't support game controller.
2. You need to set the gamepad in the game settings first.

Why doesn't the game controller vibrate at all?

1. The game you are playing doesn't support vibration.
2. Vibration is not turned on in the game settings.
3. Android mode doesn't support vibration.
