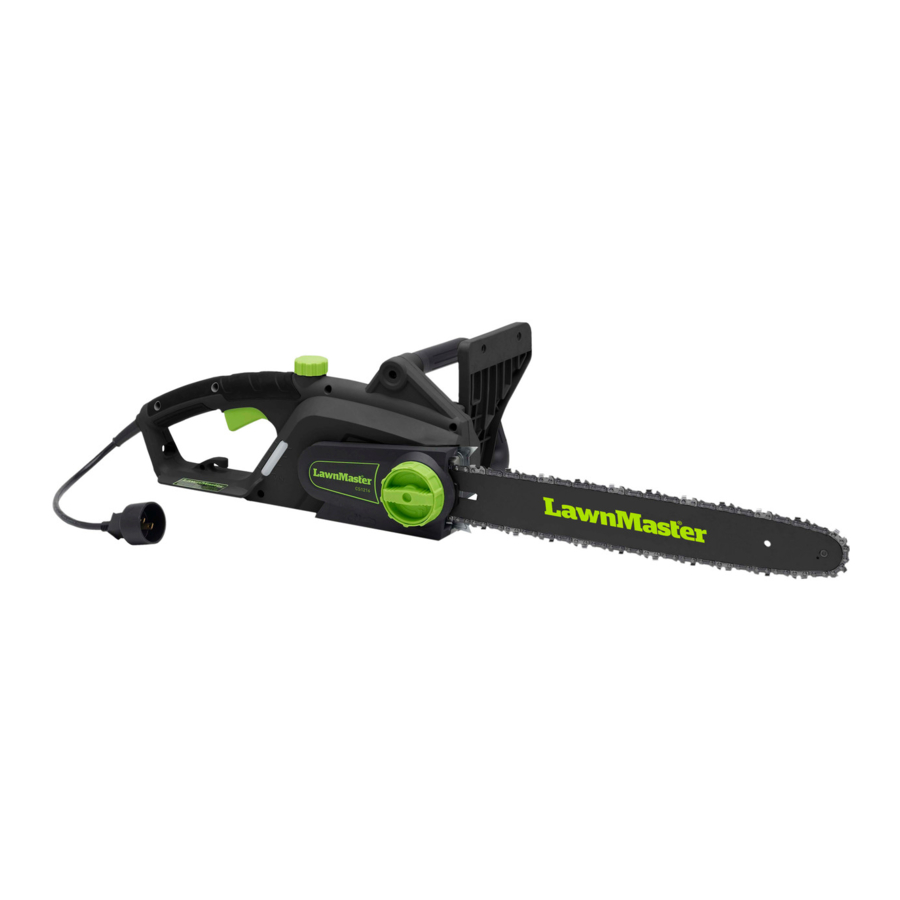

16' AC CHAIN SAW CS1216 | |
Rated Voltage: | 120 V 60Hz |
Capacity: | 12A |
Chain Speed(No-load): | 12m/s |
Chain Bar Length: | 16 Inch |
Chain Pitch: | 3/8 Inch |
Oil Tank: | 120ml |
Toolless Chain Tensioning(Sds): | Yes |
Automatic Chain Oiler: | Yes |
Steel Bucking Spikes: | Yes |
Lock-off Button For On/Off Switch: | Yes |
Maximum Cutting Diameter | 16inch |
Oregon Bar | 516480 and 112364 |
Oregon Chain | 91PX057 |
Do not attempt to operate this tool until you have read all of the instructions, safety information, etc. contained in this manual thoroughly and understand them completely. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury.
Use outdoor extension cords marked SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A, or SJTOW-A. These cords are rated for outdoor use, and reduce the risk of electric shock.
NOTE: The size of the work area depends on the job being performed as well as the size of the tree or workpiece involved. For example, felling a tree requires a larger work area than making bucking cuts.
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
Your risk of exposure to these chemicals varies depending on how often you do this type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
SAVE THESE INSTRUCTIONS
KICKBACK
Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide bar, or when the wood closes in and pinches the saw chain in the cut. Contact at the upper portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for an instant. The result is a lightning fast reverse reaction that kicks the guide bar up and back toward the operator. If the saw chain is pinched along the top of the guide bar, the guide bar can be driven rapidly back toward the operator. Either of these reactions can cause loss of saw control, which can result in serious injury. Do not rely exclusively on the safety devices built into the saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident or injury. (See Fig. 1 - 2)
THE FOLLOWING PRECAUTIONS SHOULD BE FOLLOWED TO MINIMIZE KICKBACK:
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL | SIGNAL | MEANING |
| | Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. |
| | Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. |
| | Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. |
CAUTION | (Without Safety Alert Symbol) Indicates a situation that may result in property damage. |
SERVICE
Servicing requires extreme cars and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair. When servicing, use only identical replacement parts.
To avoid serious personal injury, do not attempt to use this product until you have read this Owner's Manual thoroughly and understand it completely. If you do not understand the warnings and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-866-384843 ) for assistance. The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before operating a power tool, always wear safety goggles, safety glasses with side shields, or a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection that is marked to comply with ANSI Z87.1.
The operation of any power tool can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and, when needed, a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SAVE THESE INSTRUCTIONS
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE TOOL, USE PROPER CIRCUIT PROTECTION. THIS CHAINSAW IS WIRED AT THE FACTORYFOR 120 V OPERATION. CONNECT TO A 120 V, 15 A CIRCUIT, AND USE A 15 ATIME-DELAYED FUSE OR CIRCUIT BREAKER. TO AVOID SHOCK OR FIRE WHEN THE POWER CORD IS WORN, CUT, OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
This chainsaw has a plug that looks like the one shown in Fig. 4. The chainsaw is double insulated to provide a double thickness of insulation between you and the tool's electrical system. All exposed metal parts are isolated from the internal metal motor components with protective insulation.
Fig. 4
TO AVOID INJURY, USE ONLY IDENTICAL CHAINSAW REPLACEMENT PARTS
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY PRECAUTIONS WHEN OPERATING THIS TOOL.
TO AVOID ELECTRIC SHOCK:
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
THIS LAWN TOOL IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE TO RAIN OR USE IN DAMP LOCATIONS.
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one of heavy enough gauge to carry the current your product will draw. An undersized cord will cause overheating. The table below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
MINIMUM GAUGE FOR EXTENSION CORDS (AWG)
(WHEN USING 120 V ONLY)
Amp Rating | Total Length of Cord in Feet (meters) | ||||
More Than | Not More Than | 25' (7.6 m) | 50' (15 m) | 100' (30.4 m) | 150' (45.7 m) |
0 | 6 | 18 | 16 | 16 | 14 |
6 | 10 | 18 | 16 | 14 | 12 |
10 | 12 | 16 | 16 | 14 | 12 |
12 | 16 | 14 | 12 | Not Recommended |
Be sure your extension cord is properly wired and in good condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it. Keep your extension cords away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit must not be less than 12-gauge cord and should be protected with a 15-amp time delayed fuse. Before connecting the motor to the power line, make sure the switch is in the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running at a lower voltage will damage the motor.
THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.
SAVE THESE INSTRUCTIONS
The safe use of this product requires an understanding of the information on the tool and in this Owner's Manual, as well as a knowledge of the project you are attempting.
Before using this product, familiarize yourself with all operating features and safety rules. (See Fig. 5)
CHAIN TENSIONING KNOB
This feature allows user to adjust the tension of the chain.
GUIDE BAR
The factory-equipped guide bar has a small radius tip that offers a somewhat lower kickback potential.
LOW-KICKBACK SAW CHAIN
The low-kickback saw chain helps minimize the force of a kickback reaction by preventing the cutters from digging in too deeply at the kickback zone.
QUICK-VIEW OIL INDICATOR
Semi-transparent oil reservoir that allows user to see when to add oil.
SWITCH LOCK
A control feature designed to prevent the motor from being started accidentally..
TRIGGER SWITCH
Squeeze the trigger switch to operate the unit after switch lock has been pushed in.
Release the trigger switch to stop the unit.
This product has been shipped completely assembled.
If any parts are damaged or missing, do not operate this product until the parts are replaced. Failure to heed this warning could result in serious personal injury.
Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse, and could result in a hazardoues condition leading to possible serious personal injury.
Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
You can use this product for the purposes listed below:
Use standard chainsaw bar and chain Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required.
NOTE: The chainsaw comes from the factory with no bar and chain oil added. Level should also be checked after every 20 minutes of use, and refilled as needed.
(See Fig. 6)
NOTE: Do not use dirty, used or otherwise contaminated oils. Damage may occur to the bar or chain.
NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after each use, then run for one minute. When storing the unit for a long period of time (three months or longer), be sure the chain is lightly lubricated. This will prevent rust on the chain and bar sprocket.
This chainsaw is designed with a cord retainer that prevents the extension cord from being pulled loose while using.
(See Fig. 7)
NOTE: Failure to remove all excess cord slack from extension cord retainer could result in plug loosening from receptacle.
Keep body to the left of the chain line. Never straddle the saw or chain, or lean over past the chain line.
STARTING THE CHAIN SAW: (See Fig. 8)
STOPPING THE CHAINSAW:
NOTE: It is normal for the chain to coast to a stop once the trigger switch is released.
See General Safety Rules for appropriate safety equipment.
Never use a left-handed (cross-handed) grip or any stance that would place your body or arm across the chain line.
DO NOT operate the trigger switch with your left hand and hold the front handle with your right hand. Never allow any part of your body to be in the chain line while operating a saw.
(See Fig. 10)
Practice cutting a few small logs using the following technique to get the "feel" of using the saw before you begin a major sawing operation.
When felling a tree, it is important that you heed the following warnings to prevent possble serious injury
TO AVOID KICKBACK
When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled.
Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any pro perty damage. If the tree does make contact with any utility line, the company should be notified immediately.
The product operator should keep on the uphill side of the terrain as the tree is likely to roll or slide downhill after it is felled.
Do not fell trees during periods of high wind or heavy precipitation. Wait until the hazardous weather has ended.
An escape path should be planned and cleared as necessary before cuts are started.
The escape path should extend back and diagonally to the rear of the expected line of fall.
Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall.
NOTCHING UNDERCUT
Make the notch (B) 1/3 the diameter of the tree, perpendicular to the direction of falls (Fig. 13). Make the lower horizontal notching cut first. This will help to avoid pinching either the saw chain or the guide bar when the second notch is being made.
FELLING BACK CUT
Make the felling back cut (A) at least 50 mm higher than the horizontal notching cut (Fig. 13). Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge.
As the felling gets close to the hinge, the tree should begin to fall. If there is any chance that the tree may not fall in desired direction or it may rock back and bind the saw chain, stop cutting before the felling back cut is complete and use wedges of wood, plastic or aluminium to open the cut and drop the tree along the desired line of fall.
When the tree begins to fall remove the product from the cut, stop the motor, put the product down, then use the retreat path planned. Be alert for overhead limbs falling and watch your footing.
Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut.
Branches under tension should be cut from the bottom up to avoid binding the product.
A buttress root is a large root extending from the trunk of the tree above the ground. Remove large buttress roots prior to felling. Make the horizontal cut into the buttress first, followed by the vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling procedure as stated in Proper Procedure For Tree Felling after you have removed the large buttress roots. (See Fig. 14)
Bucking is the term used for cutting a fallen tree to the desired log length.
If the wood diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching. (See Fig. 16)
Make the first bucking cut 1/3 of the way through the log, and finish with a 2/3 cut on the opposite side. As you cut the log, it will tend to bend. The saw can become pinched or hung in the log if you make the first cut deeper than 1/3 of the diameter of the log. Give special attention to logs under stress to prevent the bar and chain from pinching. (See Fig. 17)
Begin on the top side of the log with the bottom of the saw against the log; exert light pressure downward. Note that the saw will tend to pull away from you. (See Fig. 18)
Begin on the under side of the log with the top of the saw against the log; exert light pressure upward. During underbucking, the saw will tend to push back at you. Be prepared for this reaction, and hold the saw firmly to maintain control. (See Fig. 19)
Limbing is removing branches from a fallen tree.
Pruning is trimming limbs from a live tree. (See Fig. 20)
Never cut through to the notch when making a back cut. The hinge controls the fall of the tree. This is the section of wood between the notch and backcut.
A springpole is any log, branch, rooted stump, or sapling that is bent under tension by other wood, so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump. Watch out for springpoles - they are dangerous. (See Fig. 22)
Springpoles are dangerous, and could strike the operator, causing the operator to lose control of the chainsaw. This could result in severe or fatal injury to the operator.
When servicing, use only identical LawnMaster replacement parts OR suggested replacement parts by LawnMaster. Use of any other parts may create a hazard or cause product damage.
Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. If operation is dusty, also wear a dust mask.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use a clean cloth to remove dirt, dust, lubricant, grease, etc.
Do not let brake fluids, gasoline, petroleum-based products, penetrating lubricants, etc., come into contact with plastic parts at any time. Chemicals can damage, weaken or destroy plastic, which may result in serious personal injury.
All of the bearings in this product are lubricated with a sufficient amount of high-grade lubricant for the life of the unit under normal operating conditions. Therefore, no further lubrication is required.
Switch the product off, remove the battery pack and let it cool down
Check, clean and store the product as described below
Keep the product clean. Remove debris from it after each use and before storage.
Regular and proper cleaning will help ensure safe use and prolong the life of the product.
Inspect the product before each use for worn and damaged parts.
Do not operate it if you find broken and worn parts.
Clean the product with a slightly damp cloth and mild soap. Use a brush for areas that are hard to reach.
In particular clean the air vents (4) after every use with a cloth and brush.
Remove stubborn dirt with high pressure air (max. 3 bar).
Check for any damage and wear. Repair damages in accordance with this instruction manual or take it to an authorised service centre before using the product again.
Clean the sprocket nose (7). Using a disposable lube gun, insert the needle nose into the lubrication hole (C) and inject grease until it appears at the outside edge of the sprocket (Fig. 23).
Rotate the saw chain (5) by hand. Repeat the lubrication procedure until the entire sprocket has been greased.
Most guide bar problems can be prevented merely by keeping the product well maintained. Incorrect filing and non-standard cutter and depth gauge settings are the causes of most guide bar problems, primarily resulting in uneven bar wear. As the bar wears unevenly, the rails widen, which may cause the chain to clatter and make it difficult to complete straight cuts. If the guide bar is insufficiently lubricated and the product is operated with a saw chain which is too tight, this will contribute to rapid bar wear. To help minimise bar wear, maintenance of the guide bar as well as the saw chain is recommended.
Disassemble the guide bar and saw chain in >>reversed order from assembly.
Check the oiling port (16) for clogging and clean >>if necessary to ensure proper lubrication of the guide bar and saw chain during operation. Use a soft wire small enough to insert into the oil discharge hole
Never start the motor before installing the guide bar, chain, chain cover, and chain cover lock knob. Without all these parts in place, the clutch can fly off or explode, exposing the user to possible serious injury.
To avoid serious personal injury, read and understand all the safety instructions in this section.
Before performing any maintenance, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.
Always wear gloves when handling the bar and chain. These components are sharp and may contain burrs.
Never touch or adjust the chain while the motor is running. The saw chain is very sharp. Always wear protective gloves when performing maintenance involving the chain to avoid possible serious lacerations.
NOTE: When replacing the guide bar and chain, always use the specified bar and chain listed in the Bar and Chain Combinations section later in this manual.
Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
Always use a saw chain designed as "low-kickback" or a saw chain which meets the low-kickback requirements! A standard saw chain (a chain which does not have the kickback reducing guard links) should only be used by an experienced professional operator!
Nevertheless, a low-kickback saw chain does not completely eliminated kickback! A low-kickback or "safety" chain should never be regarded as complete protection against injury!
Therefore always use a low-kickback saw chain in conjunction with other kickback protection devices such as the front hand guard!
Use only the guide bar (6) and saw chain (5) according to the technical data of the product. (Fig. 25)
Place the product on a suitable flat surface.
Loosen the locking wheel (9) and remove the side cover (10) (Fig. 24).
Spread the saw chain (5) out with the cutting edges of the chain pointing in the rotational direction
Always check the saw chain tension before use and regularly during use approx. every five cuts. Upon initial operation, new chains can lengthen considerably. This is normal during the break-in period and the interval between future adjustments will lengthen quickly.
SET THE PRODUCT ON A SUITABLE FLAT SURFACE.
Turn the tension wheel (8) until the chain "tie straps" are just touching the bottom edge of the guide bar (6) (Fig. 26).
TENSION TEST
Check the chain tension using one hand to lift the saw chain (5) against the weight of the product. The correct chain tension is achieved when the saw chain can be lifted by approximately 2 - 4 mm from the guide bar (6) in the centre (Figs. 27-28).
Adjust the tension if you find that the chain saw is too loose or tight
Ensure the tension disc (6b) is adjusted to outer right position, turn anticlockwise if required (Figs. 29-30).
Align the guide bar (6) and saw chain (5) assembly with the drive sprocket (19) and support bolt (17). Lay the saw chain around the drive sprocket and then lower the guide bar to install it to the support bolt (Figs. 31-32).
Replace the side cover (10) and slightly tighten the locking wheel (9) (Fig. 33).
Do not tighten the locking wheel completely; saw chain tensioning is required first.
The chain is correctly tensioned when there is no sag on the underside of the guide bar, and when the chain is snug, but can be turned by hand without binding.
NOTE: If chain is too tight, it will not rotate. Loosen the chain cover lock knob slightly, and turn the chain tensioning knob 1/4 turn counter-clockwise. Lift the tip of the guide bar up, and retighten the chain cover lock knob. Ensure that the chain will rotate without binding.
Never touch or adjust the chain while the motor is running. The saw chain is very sharp. Always wear protective gloves when performing maintenance involving the chain.
NOTE: A cold chain is correctly tensioned when there is no slack on the underside of the guide bar, the chain is snug, and it can be turned by hand without binding. (Fig. 36)
NOTE: During normal saw operation, the temperature of the chain increases. The drive links of a correctly tensioned warm chain will hang approximately 1/16" (1.3 mm) out of the bar groove. (Fig. 39)
NOTE: New chains tend to stretch. Check the chain tension frequently and tension as required.
A chain tensioned while warm may be too tight upon cooling.
Check the "cold tension" before next use.
Turn the locking wheel (9) to tighten the side >>cover (10) completely (Fig. 40).
Do not overfill. Leave approximately 5 mm of space to the lower edge to allow the lubricant to expand (Fig. 41).
Check the oil level at the window of the oil tank (11) prior to switching on and regularly during operation. Refill oil when the oil level is lower than the "MIN" marking (Fig. 42).
Wipe up spilled lubricant with a soft cloth and refit the tank cap (11a).
Make sure the guide bar (6) and the saw chain (5) are in place when you check the oil delivery. Switch on the product (see section "on/off switch" below); keep pressing the on/off switch (13) and check if the chain oil is delivered as shown in the figure (Fig. 43)
Check the drive sprocket (19). If it is worn or damaged due to strain, have it replaced by an authorised service agent.
Clear residue from the rails on the guide bar (6) using a screwdriver, putty knife, wire brush or other similar tool. This will keep the oil passages open to provide proper lubrication to the bar (6) and chain (5).
Check the guide bar 'rail' for wear: Hold a ruler (straight edge) against the side of the guide bar and 'cutter side plates'. If there is a gap between the ruler and guide bar the guide bar 'rail' is normal. If there is no gap (ruler flush against the side of the guide bar) the guide bar 'rail' is worn and needs to be replaced with a new one of the same type.
Turn the guide bar 180° to allow even wear, thereby extending the life span of the guide bar (6).
Loosen the screw and remove the tension disc (6b) from the guide bar.
Ensure the rubber washer on the screw is free of wear. Turn the guide bar and fix the tension disc with the screw. Apply a drop of suitable glue to the screw to ensure its safe positioning when reassembly.
Make sure the chainsaw is disconnected from the power supply before you work on the saw.
Use only a low-kickback chain on this saw. This fast-cutting chain provides kickback reduction when properly maintained. For smooth and fast cutting, maintain the chain properly. The chain requires sharpening when the wood chips are small and powdery, the chain must be forced through the wood during cutting, or the chain cuts to one side. During maintenance of the chain, consider the following:
NOTE: Inspect the drive sprocket for wear or damage when replacing the chain. If signs of wear or damage are present in the areas indicated, have the drive sprocket replaced by an authorized service centre.
NOTE: If you do not fully understand the correct procedure for sharpening the chain after reading the instructions that follow, have the saw chain sharpened by an authorized service centre or replace with a recommended low-kickback chain.
Check the saw chain for possible wear and damages. Replace it with a new one if required.
Experienced user can sharpen a dull saw chain (see section "Chain sharpening" below).
Refit the saw chain (5) and the guide bar (6) as described under "Assembly".
Have your chain (5) sharpened professionally at an authorised service centre, or sharpen the chain yourself by using a proper sharpening kit. Also observe the sharpening instructions supplied with the sharpening kit.
The height difference between the tooth and the ridge is the cutting depth. When sharpening the saw chain (5) you have to consider the following points
To sharpen the chain proceed as follows:
Use a round file, whose diameter is 1.1 times the cutting tooth depth.
Make sure 20% of the file diameter is above the cutter's top plate.
A file guide is available from most reputable tool merchants and is the easiest way to hold the file at the correct position.
File at an angle perpendicular to the bar, and at an angle of 25° to the direction of travel
File each tooth from the inside towards outside only. File one side of the chain first than turn the saw around and repeat the process. Sharpen each tooth equally by using the same number of strokes. Keep all cutter lengths equal. Check the safety depth gauge height every 5 sharpenings. If the depth gauges are also trimmed it is essential that the original profile is restored.
Use a depth gauge measuring >>instrument to check the height of the depth gauge.
Depth gauge measuring jigs are available from most reputable tool merchants
This product does not contain any parts that can be repaired by the consumer.
Contact a qualified specialist to have it checked and repaired. lean the product as described above.
Store the product and its accessories in a dry, frost-free place.
Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C.
We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.
Switch the product off and remove the battery pack before transporting it anywhere.
Attach the blade cover to the saw blade. Attach other transportation guards, if applicable.
Always carry the product by its gripping handles (1, 2).
Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
Secure the product to prevent it from slipping or falling over.
PROBLEM | CAUSE | REMEDY |
Bar and chain running hot and smoking | Check chain tension for over-tight condition. Chain-oil tank empty. | Plug in the power cord. |
Motor runs but chain is not rotating | Chain tension too tight. | Retension chain, Refer to Adjusting Chain Tension earlier in this manual. |
Check guide bar and chain assembly. | Refer to Replacing Bar and Chain earlier in this manual. | |
Check guide bar and chain for damage. | Inspect guide bar and chain for damage. | |
Motor runs and chain rotates but does not cut | Dull chain. | Sharpen chain. |
Chain on backwards. | Reverse direction of chain. |
For product service call Customer Service at (866) 384-8432.
CS1216 Manual Parts List | |||
Key Number | Drawing Number | Description | Quantity |
1 | 171-7J13002 | Power Cord | 1 |
2 | 196-7J11601 | Shield Sleeve | 1 |
3 | 293-7J13001 | Switch Button | 1 |
4 | 293-7J13002 | Button Assy | 1 |
5 | 235-7J13001 | Push Button | 1 |
6 | 324-7J13001 | Oil Resevoir | 1 |
7 | 139-7J13001 | Swith Assembly | 1 |
8 | 297-7J13001 | Top Handle | 1 |
9 | 216-7J13001 | Front Handle Guard | 1 |
10 | 303-7J13001 | Left Motor Housing | 1 |
11 | 324-7J13002 | Electrical Carbon Component | 1 |
12 | 324-7J13003 | Motor Assembly | 1 |
13 | 324-7J13004 | Gear Assembly | 1 |
14 | 313-7J11203 | Dust Proof Cover | 1 |
15 | 324-7J13005 | Tensioner Housing | 1 |
16 | 372-1610 | Chain | 1 |
17 | 324-7J13006 | Bar | 1 |
18 | 303-7J13002 | Right Motor Housing | 1 |
19 | 324-7J13006 | Oil Pump Assembly | 1 |
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the CS1216 and is the answer not in the manual?
Questions and answers
