EVA Logik ZKS31 User Manual

EVA Logik ZKS31 User Manual

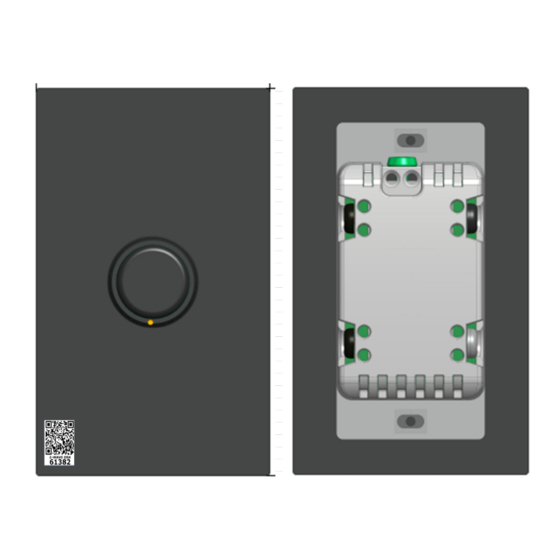

Z-wave knob dimmer switch

Advertisement

Quick Links

FCC
Federal Communications Commission (FCC) Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment should
be installed and operated with minimum distance 20cm between the radiator and your body.
WARNING
RISK OF FIRE
RISK OF ELECTRICAL SHOCK
RISK OF BURNS
CONTROLLING APPLIANCES:
EXERCISE EXTREME CAUTION WHEN USING Z-Wave™ DEVICES TO CONTROL APPLIANCES. OPERATION OF THE Z-Wave™ DEVICE MAY BE IN A DIFFERENT ROOM THAN THE CONTROLLED
APPLIANCE, ALSO ANUNINTENTIONAL ACTIVATION MAY OCCUR IF THE WRONG BUTTON ON THE REMOTE IS PRESSED. Z-Wave™ DEVICES MAY AUTOMATICALLY BE POWERED ON DUE TO TIMED
EVENT PROGRAMMING. DEPENDING UPON THE APPLIANCE, THESE UNATTENDED OR UNINTENTIONAL OPERATIONS COULD POSSIBLY RESULT IN A HAZARDOUS CONDITION. FOR THESE
REASONS, WE RECOMMEND DO NOT RETURN THIS PRODUCT TO THE STORE THE FOLLOWING: DO NOT USE Z-Wave™ DEVICES TO CONTROL ELECTRIC HEATERS OR ANY OTHER APPLIANCES
WHICH MAY PRESENT A HAZARDOUS CONDITION DUE TO UNATTENDED OR UNINTENTIONAL OR AUTOMATIC POWER ON CONTROL.
ZKS31 User Manual
Z-Wave Knob Dimmer Switch User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZKS31 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EVA Logik ZKS31

  • Page 1 ZKS31 User Manual Z-Wave Knob Dimmer Switch User Manual Federal Communications Commission (FCC) Statement FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 2 (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination. ZKS31 is a security enabled Z-Wave Plus™ device. A security Enabled Z-Wave Plus™ Controller must be used in order to fully utilize the product.
  • Page 3 ZKS31 User Manual A. Up button B. Left button C. Down button D. Right button E. Turn Right F. Turn Left G. Lin (Black) - Line in H. Nin (White) - Neutral in I. Load J. Traveler-3-way (RED) K. Ground P.
  • Page 4 ZKS31 User Manual Installation Wiring Diagram Button Function Description press 1x Center button: ON/OFF Load Rotate the knob anticlockwise or clockwise : Adjust brightness up/down press 3x Center Button : ADD-Inclusion/REMOVE-exclusion. Central Scene : Center Button 1x/2x/3x/4x/5x tap/Hold/Release -----scene 1...
  • Page 5 ZKS31 User Manual Node: Please use this procedure only when the network primary controller is missing or otherwise inoperable. Adding Your Device To Hub The device support two methods of inclusion, When using a Z-Wave Plus™ certified controller choose Network Wide Inclusion or Smart Start.
  • Page 6 ZKS31 User Manual Command Class Name Version Required Security Class Security none Association highest granted Association Group Information highest granted Multi Channel Association highest granted Version highest granted Manufacturer Specific highest granted Device Reset Locally highest granted Power Level highest granted...
  • Page 7 ZKS31 User Manual Basic Set Mapping Basic CC is mapped to Switch Multilevel Command Class Basic Set is mapped to Switch Multilevel Set. Basic Report is mapped to Switch Multilevel Report. Indicator Command Class The indicator (blue color) will flashes according the indicator set command received from HUB.
  • Page 8 ZKS31 User Manual Configuration Parameters Format / Name Information Value Description Change Size 0 - Inverse: Indicator on when output off and off 1 byte when output on Led behavior for unsigned 1 - Synchronize: Same as output Only can be changed by HUB...
  • Page 9 ZKS31 User Manual Format / Name Information Value Description Change Size 0 -Turn off Left 1 byte 1~99 -Custom Brightness Brightness when Only can be changed by HUB NOTE: This parameter will be invalid Press unsigned 100 -Maximum Brightness press left...
  • Page 10 ZKS31 User Manual Format / Name Information Value Description Change Size Auto Minutes 4 byte 0 -Disable Turn On automatically turn unsigned Only can be changed by HUB Others -Minutes Timer on once turned off integer 1 byte 0 -Always Off...
  • Page 11 ZKS31 User Manual Format / Name Information Value Description Change Size 0 – Turn on to custom brightness determined by PARA#25 Single Single TAP 1 byte 1 - Always turn on to 100% behavior when turn unsigned Only can be changed by HUB...
