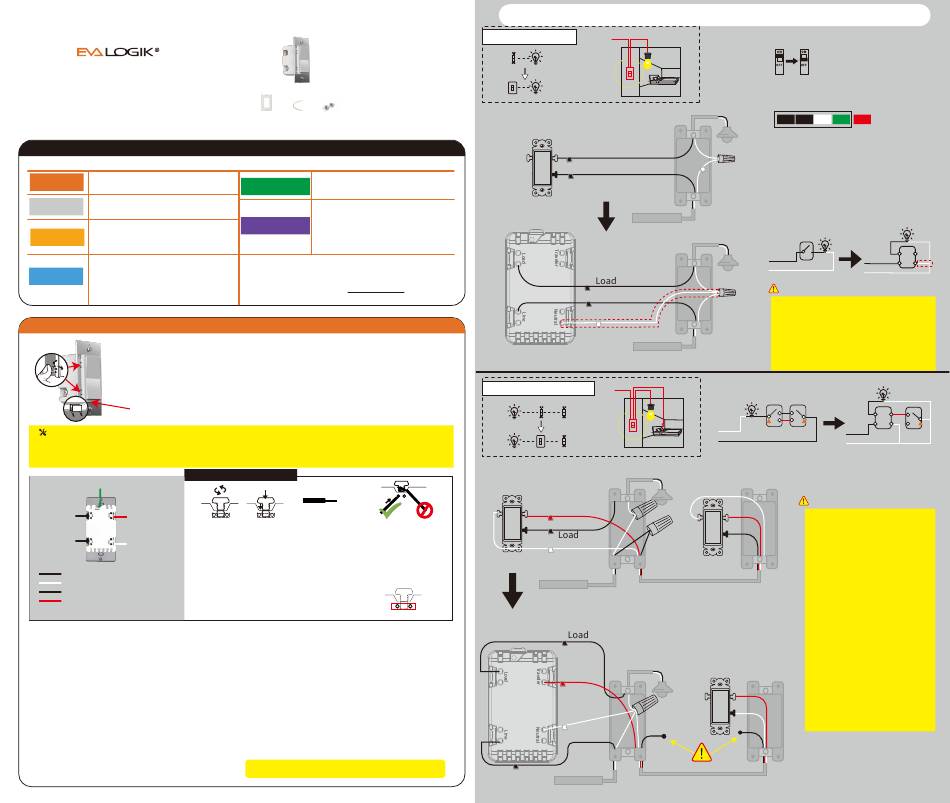

EVA Logik WF31 Quick Start Manual

3-Way Wi-Fi Smart Dimmer Switch
• WF31 •
Contents
Convention Description
• Pre-installation preparation
Part 1.
Installation
• Installation steps
Part 2. • Wiring Instructions
Wiring Diagram
• single pole and 3-way wiring diagram
• LED Indicator/ Button function
Part 3.
• Adding / reset the device ( Factory setting)
Manual Control
• Min & Max Brightness Value Setting
• Download the app
• Add a device in your app
Part 4.
• Work with Amazon Echo & Google Home
APP Connection
• If you cannot configure it by the default mode
successfully, try to connect by AP mode.

Part 1. Installation

CHANGING THE COLOR OF THE PADDLE(OPTIONAL)
This step is optional. Before you start you may want to change the color of the paddle to match your wallplate or decor.
1. Push side tabs in on one side and then the other to release paddle. Lift the cover up and off.
2. Simply put the new paddle onto the switch by side tabs and snap securely into place.Once this step has been completed
please proceed to part 2 wiring.
Air-Gap Switch:
The "air gap switch" will cut power to the device if it's pulled up. It's located right below the main switch itself, often next
to the LED. Pull up for Bulb replacement, push down for normal use.
A Few Quick Reminders
A quick note before we give out the wiring schematics. Please do not try installing this device if you are unsure of how electrical circuits operate
within your home. As exciting as it is to have a smart switch installed, it can be dangerous and even life-threatening if you do not install this
correctly. Please consult a qualified electrician if necessary. With that said, here are a few other warnings we'd like to point out for your safety:
HOW TO INSTALL THE WIRES
Ground
1.
Load
Traveler
1. Unscrew: carefully turn the screw counterclockwise to leave enough space for
the wire to be inserted. Do not unscrew the screws completely.
Line
Neutral
2. Press down: Once loosened, use your finger so it catches the thread.
3. Insert the wire: make sure the wire is completely straight, then insert it into the
terminal while holding down the screw. Do not wrap the wire around the screw!
Line (hot) — black (connected to power)
4. Tighten: Turn the screw clockwise to tighten the wire. Make sure the
Neutral — white
wires are locked!
Load — black (connected to lighting)
Note: There are 2 holes for each terminal can be used in the
Traveler — red/other
connection.You can use a jump wire or the second hole at the
(only in 3-way installations)
terminal to connect.
Note before installation
150W LED, 500W
1) The Wi-Fi In-wall Smart Switch must not exceed
3½ in
2) The switch box required: 1-gang U.S. wall box. deep recommended,
with permanently installed fixtures.）
regular 3-way on/off
3) Work with for 2 locations control. It can only be connected with regular 3-way on/off switch, don't use a smart
switch or a dimmer switch! Couldn't work with an add-on switch!
4) The colors of your wires may not match the ones in our diagrams so please make sure you've
their source, not color only.
5) Please check your original 3-way wiring circuit in your home before installation, and then
the manual.
6) Install the smart switch in the switch box which directly connects to the power Line and Neutral.
7) This switch requires a Neutral for installation , or the installation will not succeed.
8) Not recommended for fan.

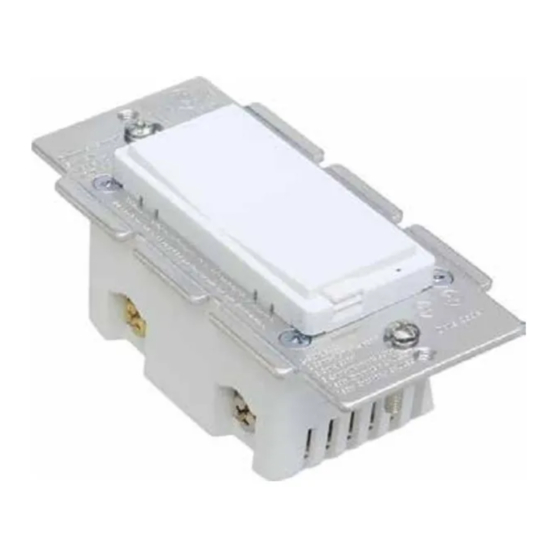

Meet your new smart switch !
Power: 120V AC, 60Hz
Wireless Frequency: 2.4GHz
Wireless Standard: IEEE802.11b/g/n
Maximum Load: 150W LED, 500 W
incandescent
Switch x1
Minimum Load: 5W for LED bulbs
Range: Up to 100 feet line of sight
wallplate x1 wiring x1 screws x2
For indoor use.
Convention Description
Part 5.
• Adding your device to Wi-Fi network
Network Configuration
Function description
• LED Indicator Status Setting
Part 6.
• Restore State after Power Failure
Parameter Settings
• Light Off State Setting
• Button Function Setting
For more detials, please refer to the manual parts.
If you have any questions during installation,
Please contact us ask@nie-tech.com
4.
2.
3.
STRIP WIRE AT 3/8-1/2"
incandescent.
2¼ in
deep minimum.（The switch is designed only for use
identified all wires correctly
based on
follow the wiring diagram option 1 or 2
If you have any questions, please contact us at
ask@nie-tech.com
Power
Single-pole wiring
regular
Load
Line
Ground
Line
Neutral
3-Way switch option 1
OUT TO LIGHT
regular 1
Traveler
common
Neutral
From source
( Line/Hot Neutral and Light/Load)
OUT TO LIGHT
Ground
Traveler
in
Neutral
Line
From source

Part 2. Wiring Diagram

1. Tool: Please prepare a flat head screwdriver.
2. Turn power OFF at circuit breaker or fuse box.
Remove wallplate.
3.
4. Remove the switch mounting screws.
5. Disconnect the wires and label them after
remove the old switch.(Please use our sticker)
OUT TO LIGHT
Line
6. Carefully remove the switch from the switch
box. (DO NOT disconnect the wires.)
Neutral
7. There are up to five screw terminals on the
smart switch, these are marked (Please check
<HOW TO INSTALL THE WIRES>)
8. Fix the wallplate with screws after wiring
succeed. (Please use our screws.)
9.The Ground was excluded from the diagram to
simplify the illustration. Please Make sure all
ground wires are connected to all switches
From source
respectively.
OUT TO LIGHT
Line
Neutral
Neutral
IMPORTANT
1) Neutral required. If the box do not have a Neutral,
please stop! Connect the white wire to neutral
terminal(use a white jump wire form the package or
the second hole at the terminal to connect.)
2) Insert the Line wire to Line terminal and Load wire to
From source
Load terminal. LOAD and LINE Can't be swapped,
please make sure to identify them correctly!
Power
Neutral
common
Line
(3-way switch)
regular 2
common
Line
Box 2
Box 1
Don't change this
regular 3-way on/off switch
regular
(3-way switch)
common
None-connection
Traveler (Just for 3-way switch)
Load Neutral Ground
Smart
Line
Switch
Neutral
Smart
Switch
common Line
common
Neutral
IMPORTANT
1) Neutral required. If the switch box do
not have a Neutral, please stop!
Connect the white wire to neutral
terminal (use a white jump wire form
the package or the second hole at the
terminal to connect.)
2) Insert the Line wire to Line terminal
and Load wire to Load terminal.
LOAD and LINE Can't be swapped,
please make sure to identify them
correctly!
3) Install the smart switch in the switch
box which directly connects to the
power Line, Load and Neutral.
4) Only work with regular 3-way on/off
for 2 locations control. It can only be
connected with regular 3-way on/off
switch, don't use a smart switch or a
dimmer switch! Couldn't work with
an add-on switch!
