Online manual for the HS-WX300 In-wall Dimmer & Switch
Overview

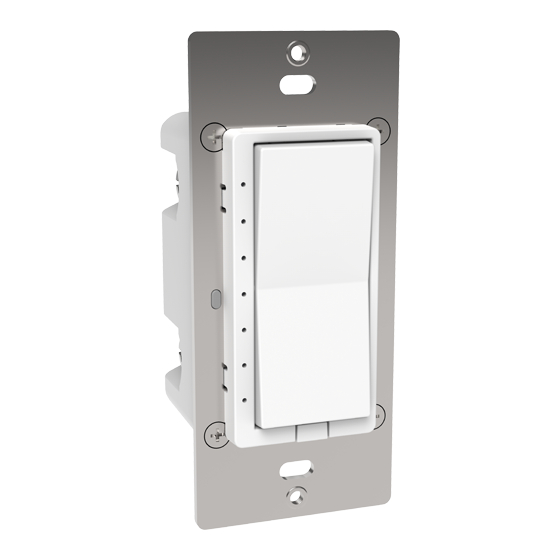

HS-WX300 is a Z-Wave in-wall light switch that may be configured to operate as either a dimmer switch or an on/off switch. It may be
installed with or without a neutral wire and it works with both wired and wireless companion switches in 3-way circuit configurations. This
switch has been designed, tested and certified for use in the United States and Canada.
Important
WARNING RISK OF FIRE | RISK OF ELECTRICAL SHOCK | RISK OF BURNS
DO NOT USE THIS SWITCH TO CONTROL ANYTHING THAT MAY PRESENT A HAZARD WHEN CONTROLLED REMOTELY OR
USED IN AN UNATTENDED FASHION. DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENTS.
CAUTION:
To Reduce the Risk of Overheating And Possible Damage To Other Equipment,
Operated Appliance, A Fluorescent Lighting Fixture, Or A Transformer-Supplied
If used with non-dimming loads,
Circuit Types
Most lighting loads are powered with line (120 VAC) and neutral wires. The line wire always runs through the wall switch box but the
neutral may not be present there. If the neutral wire is present, use the 3-wire method below. If no neutral is present, use the 2-wire
method. For 3-way circuits, a neutral is only required at the companion switch location (using HS-WA100+ or standard 3-way switches).
Single Switch, 3-Wire Circuit
Multi Switch (3-Way) Wiring for 2-Wire & 3-Wire Circuits
Installation
be sure to configure as a an on-off switch
Single Switch, 2-Wire Circuit
Do Not Install To Control A Receptacle, A Motor-
Appliance.
before powering the load.
Advertisement
Table of Contents
Related Manuals for HomeSeer HS-WX300
Summary of Contents for HomeSeer HS-WX300
- Page 1 Overview HS-FC200+ HS-WX300 is a Z-Wave in-wall light switch that may be configured to operate as either a dimmer switch or an on/off switch. It may be HS-WD200+ installed with or without a neutral wire and it works with both wired and wireless companion switches in 3-way circuit configurations. This switch has been designed, tested and certified for use in the United States and Canada.
- Page 2 HS-WX300 may be configured to operate as an ON-OFF switch or as a DIMMER. By default, it will operate as a dimmer. If you're installing it to control a non-dimming load or wish to only provide ON-OFF operation, be sure to configure it to operate as an ON-OFF switch. To change the switch mode, follow these steps: 1.
-
Page 3: Operation
HS-WS200+ Your new HomeSeer switch is Z-Wave certified and is ready to be used with a wide variety of home automation hubs and controllers. All HS-WD100+ features are fully supported by HomeSeer systems but some Advanced Features (see below) may not be fully supported by other WD/WS Manual Reset controllers. - Page 4 This feature is supported using Z-Wave parameter commands. Most Z-Wave certified systems provide a method for issuing parameter commands to individual products. HomeSeer systems simplify the use of this feature by providing event actions to send parameter commands. A complete list of parameters may be found on the next page.
-
Page 5: Specifications
HS-WX300 vs HS-WD200+ Sets LED(s) 1-7 to Blink Bitmask defines specific LEDs to v1.12 in Status mode enable for blinking: How To Add HS-WX300+ to Sma… Note: this decimal value is derived HS-WA100+ from a hex code calculation HS-SP100... - Page 6 HS-WX300 User Guide Supported Z-Wave Command Classes HS-WX300 vs HS-WD200+ How To Add HS-WX300+ to Sma… This device supports the Indicator Command Class, version 3 and supports the Indicator ID 0x50 (Identify) and Properties ID 0x03, 0x04 and 0x05. HS-WA100+ ...
-
Page 7: Physical Dimensions
HomeSeer warrants to the original purchaser that this product, for the warranty period, will be free from material defects and workmanship. This warranty is subject to proper installation and operation of the product. HomeSeer’s sole obligation, under this warranty, is to repair, IP Cameras ... -
Page 8: Supplier's Declaration Of Conformity
Overview HS-WX300 Important Circuit Types HS-WX300 User Guide Installation HS-WX300 vs HS-WD200+ Tools required Steps How To Add HS-WX300+ to Sma… Configuration HS-WA100+ Changing Switch Mode Changing Wire Mode HS-SP100 Z-Wave Inclusion or Exclusion HS-FC200+ Factory Reset...
