Rocstor SolidKVM SK10 User Manual

Rocstor SolidKVM SK10 User Manual

2-port dual monitors displayport 1.2 usb kvm switch w/ audio & mic true transparent usb emulation technology

Advertisement

Quick Links

®
SK01
2-Port Dual Monitors DisplayPort™ 1.2 USB KVM Switch w/ Audio & Mic
True Transparent USB Emulation Technology
1
2
PC
USB Link
SolidKVM SK01

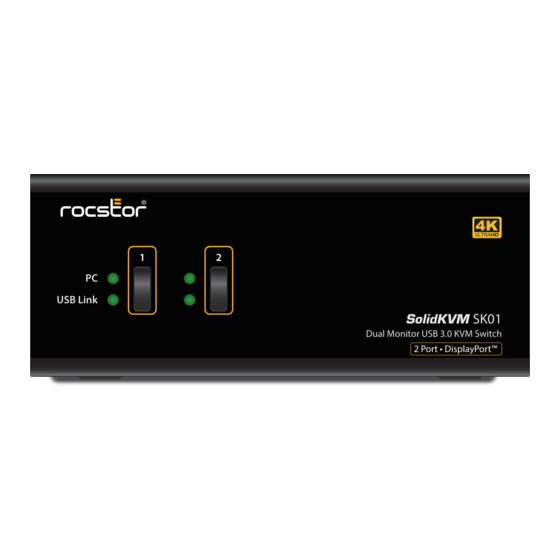

Dual Monitor USB 3.0 KVM Switch
2 Port • DisplayPort™
User Manual
Y10P011-B1
1
www.rocstor.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SolidKVM SK10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rocstor SolidKVM SK10

  • Page 1 ® SK01 2-Port Dual Monitors DisplayPort™ 1.2 USB KVM Switch w/ Audio & Mic True Transparent USB Emulation Technology USB Link SolidKVM SK01 Dual Monitor USB 3.0 KVM Switch 2 Port • DisplayPort™ User Manual Y10P011-B1 www.rocstor.com...
  • Page 2: Package Includes

    INTRODUCTION The SolidKVM SK10 Dual Monitors DP1.2 KVM Switch has been meticulously crafted to streamline the experience of sharing dual monitors or at panel displays among two or two multimedia computers equipped with dual-head DP displays. With this innovative solution, you can exercise complete control over two dual-head PCs using just one keyboard, one mouse, and your dual monitors.
  • Page 3: Front & Rear Panel Overview

    1 x DC 12V Φ2.1mm Power Jack 2 x USB 3.0 Type-A Device Ports 2 x Console Audio/Mic. 3.5mm Phone Jacks 2 x PC USB 3.0 Type-B Ports for PC Data Link 4 x PC Audio/Mic. 3.5mm Phone Jacks 1 x Grounding Terminal w/ Screw www.rocstor.com...
  • Page 4: Connection Diagram

    Dual Monitor www.rocstor.com...
  • Page 5: Installation

    PC, using one USB Type-B cable, two DP cables and one 2-in-1 Auido/Mic. cable. 4. Connect your USB devices to the USB 3.0 hub ports (on the rear panel). Power on PCs connected to the KVM switch. Now you can enjoy the KVM port switching operation over the connected PCs. www.rocstor.com...
  • Page 6: Operation

    OPERATION There are two ways to operate SolidKVM SK10 switch, please carefully read the instructions as below. 1. Front-panel Buttons The front-panel buttons allow you a direct control of KVM port switching operation. Simply press a desired button to switch to its corresponding KVM PC port (Note: The USB hub port and Audio/ Mic. port can be set as going along or not going along with the KVM PC port switching, depending on if they are bound with the PC port switching).
  • Page 8: Warranty Information

    This packaging design and its contents are protected by copyright laws and international treaties. Unauthorized reproduction, distribution, or use of this design, in whole or in part, without the express written consent of Rocstor Inc. is strictly prohibited and may result in legal action.
