Cairox REM-REGU Quick Start Manual

TECHNICAL SPECIFICATIONS


 Power supply.
➢ Voltage .................................................................. 100-240 VAC.
➢ Frequency............................................................... 50/60 Hz.
➢ No load consumption................................................. 20 mA.
➢ Protection............................................................... Overvoltage/overcurrent.
 Relay Output.
➢ Max. output current Aux1 and Aux2................................. 6A
 0-10 V Output.
➢ Output voltage......................................................... from 0 to 10 VDC.
➢ Max. output current................................................... 20 mA.
➢ Protection ............................................................... Short circuit.
PWM Output.

➢ Output voltage......................................................... V+: From 10 to 24 VDC.
➢ Frequency............................................................... from 31 to 1000 Hz.
➢ Max. output current................................................... 20 mA.
➢ Protection ............................................................... Short circuit.
 Differential pressure measurement.
➢ Measuring range...................................................... ± 980 Pa.
➢ Accuracy................................................................
 Climatic environment.
➢ Storage temperature .................................................. -10 °C to +60 °C.
➢ Operating temperature ............................................... -10 °C to +45 °C.
 Mechanical environment.
➢ Dimensions ............................................................ 145 x 128 x 84 mm.
➢ Weight ................................................................... 0.465 kg.
➢ Material................................................................... ABS (UL 94 VO).
➢ Colour..................................................................... RAL 9010.
➢ Mounting................................................................. 4 screws (max. diam. 5 mm).
➢ Air pipe connection..................................................... Ø 6 mm.
➢ Air pipe.................................................................... int. Ø 5 mm, ext. Ø 8 mm, L 2 m.
➢ Compliance with EMC directive....................................... 2004/108/EEC.
➢ Compliant with the Low Voltage directive.......................... 2006/95/EEC.
REM-REGU
PRESSURE CONTROLLER
THIS DOCUMENT MAY BE MODIFIED WITHOUT NOTICE
± 1% of range.

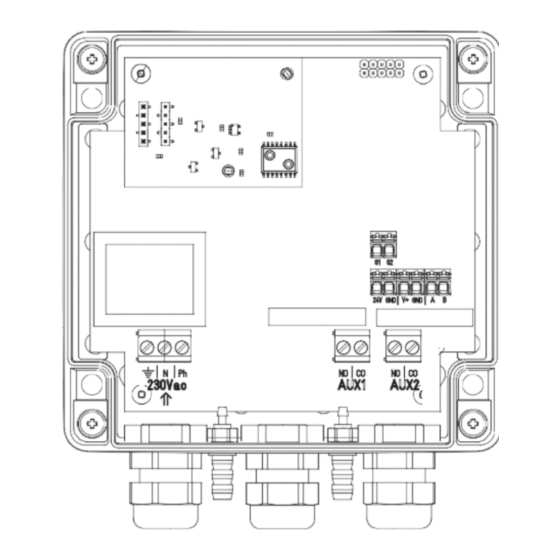

(See diagram)
