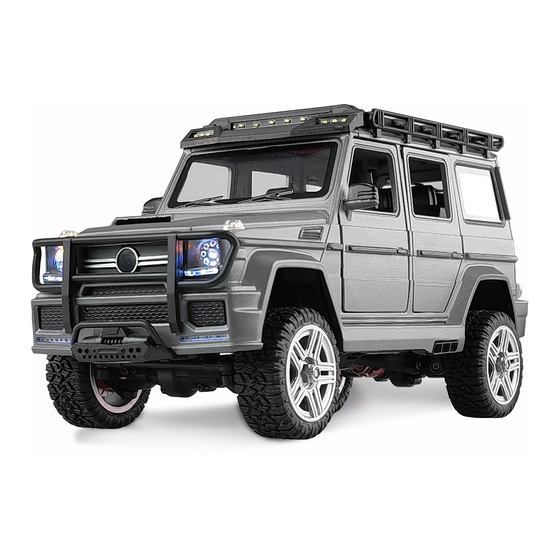

- Page 1 BRX24 METALL SCALE CRAWLER 4WD 1:24 22661, 22662 JUST REMOTE-CONTROLLED BEDIENUNGSANLEITUNG OPERATION MANUAL...
- Page 3 Welcome to AMEWI The Amewi Trade GmbH is an international import- and wholesale company for R/C models, toys and creative items, located in Borchen near Paderborn, Germany. Our product range includes over 10,000 items. Above all, this includes remote-controlled car, helicopter, boat, and tank models as well as a wide range of accessories and all necessary spare parts.
-
Page 4: Sicherheits- Und Gefahrenhinweise
This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade GmbH declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED). The declarations and documents are stored at the manufacturer and can be requested and applied there. - Page 5 Improper use such as short-circuiting, or overcharging may result in explosion or fire. Keep the battery in a safe place that babies or children cannot reach. The above indicates the danger of using the battery. The user assumes full responsibility for the outcome of using the battery. amewi.com...
- Page 6 DISPOSAL ENTSORGUNGSHINWEISE / Die Firma AMEWI Trade GmbH ist unter der Batt-Reg.-Nr. DE 77735153 sowie der WEEE-Reg.-Nr. 93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
- Page 7 THANK YOU VIELEN DANK / Vielen Dank für den Kauf des Amewi BRX24. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. Thank you for purchasing the Amewi BRX24. Please read the instruction manual carefully and keep it for future reference.
-
Page 8: Wichtige Hinweise
Sendemasten. Orten mit aktiven Funkwellen. Near crowds or in public places. Near rivers, ponds or lakes. Near electricity pylons or other Near a radio tower, mobile phone transmission towers. masts or other places with active radio waves. amewi.com... - Page 9 Da das Produkt kleinteile enthält, auf öffentlichen Straßen oder halten Sie es von kleinen Kindern fern. überfüllten Plätzen. As the product contains small parts, Do not operate the model on keep it away from small children. public roads or crowded places. amewi.com...
-
Page 10: Box Content
1. Linke Rückleuchte 2. Linker Scheinwerfer 3. Rechte Rückleuchte 4. Rechter Scheinwerfer 5. Motor 6. Lenkservo 7. An-/Aus Schalter 1. Left tail light 2. Left headlight 3. Right tail light 4. Right headlight 5. Motor 6. Steering servo 7. On/off switch amewi.com... -
Page 11: Batterien In Die Fernsteuerung Einlegen
3. Bringen Sie nun den Griff wieder am oberen Teil an. Press the two battery compartment openers on both sides of the handle and pull it down. 2. Insert two AA batteries. Pay attention to the polarity. 3. Now reattach the handle to the upper part. amewi.com... - Page 12 Now connect the battery to the USB charging cable. The green status LED flashes during the charging process. If the green LED lights up continuously, the charging process is finished. Disconnect the battery from the charging cable after charging. The charging time is approximately two hours. amewi.com...
-
Page 13: Battery Install
3. Schließen Sie die Tür. Open the trunk door. 2. Connect the battery to the vehicle electronics as shown and place it in the vehicle. 3. Close the door. Anschluss des Akkus Anschluss der Elektronik The battery plug Plug of the electronic amewi.com... -
Page 14: Kontrolle Vor Der Fahrt
Schließen Sie den Akku an und schalten Sie die Elektronik ein. Die die Status-LED blinkt schnell Beleuchtung des Fahrzeugs blinkt. Switch on the remote control, Connect the battery and switch on the electronics. The lighting of the vehicle the status LED flashes quickly flashes. amewi.com... - Page 15 Turn the steering wheel to the left and the vehicle steers to the left. Turn the steering wheel to the right and the vehicle steers to the right. Rechts Links Right Left Rechts (Im Uhrzeigersinn) Right (Clockwise) Links (Gegen den Uhrzeigersinn) Left (Anti-Clockwise) amewi.com...
- Page 16 If you pull the throttle lever backward, the vehicle moves forward. If you push the gas pedal lever forward, the vehicle brakes. If you now move the throttle lever to the center position and push it forward again, the vehicle will move backward. Rückwärts Vorwärts Backward Forward Bremse / Rückwärts Brake / Backward Vorwärts Forward Neutralstellung Center point amewi.com...
-
Page 17: Nach Der Fahrt
SWITCH OFF REMOTE CONTROL Schalten Sie das Fahrzeug aus, trennen Sie den Akku vom Fahrzeug Schalten Sie die Fernsteuerung aus. Switch off the car, disconnect and remove the battery from the car. Switch off the remote control. AUS / OFF amewi.com... -
Page 18: Wartung / Maintenance
Check regularly if screws have loosened and tighten them. We recommend securing screws with threadlocker. Check for dust or dirt in the drive train after each ride. Clean the chassis with a brush or air pressure if necessary. Oil moving parts if necessary. amewi.com... - Page 20 amewi.com...
