WIRING SCHEMATICS

TYPICAL SYSTEM LAYOUTS:
This section is for information only. Please check with the specifying / design engineer.
However, these diagrams show a typical layout which will give you an understanding of how the
systems install and the component parts required.

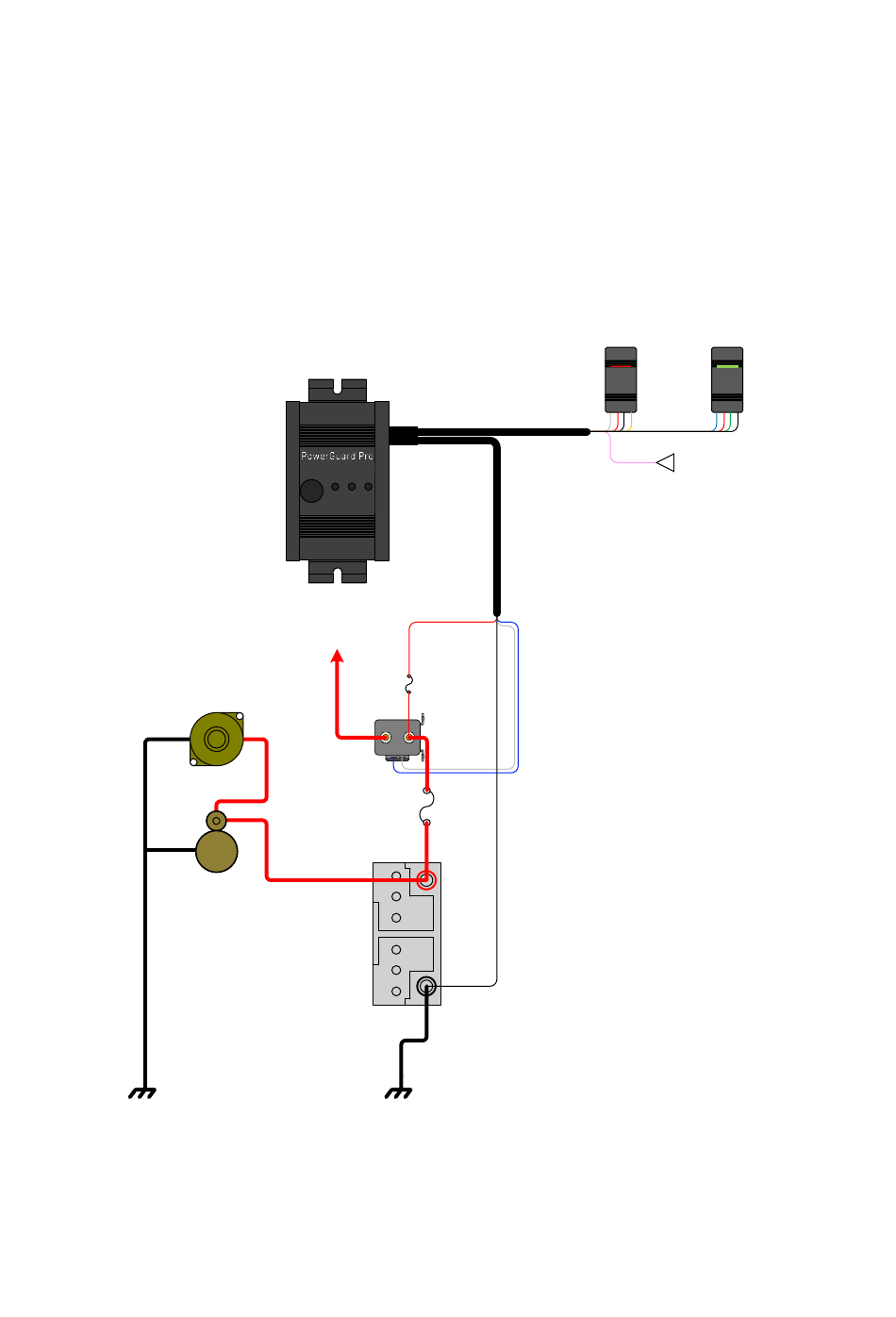

The following 1 Battery Bank Example is based upon a typical installation:
Vehicle
Alternator
Vehicle
Starter
Motor
GND
REF: QSF-030
Issue: D
Merlin
PowerGuard Pro
Flat Bat ter y P rot ect ion Syst em
PC I nt e r f a ce
Bat t er y 1 Bat t er y 2 Ti m e
Vol t s Vol t s Del a y
System
Loads
PG1
Engine
Battery
(1)
GND
Merlin Equipment Ltd
PowerGuard Pro – User and Installation Guide
PowerGuard
Reset Switch
Fuse
Fuse
Battery 1
Isolator
Ignition Feed
