Summary of Contents for Zycoo IAS-L100

  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Specifications ..................2 2.3 Product Features ....................3 2.4 Product Integration ....................3 3. Dashboard ......................5 3.1 Accessing the Web GUI ..................5 3.2 System Dashboard ....................6 3.3 Register Status ....................7 4.

  • Page 3: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the IAS-L100 IP Audio Server. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the IAS-L100 IP Audio Server.

  • Page 4: Overview

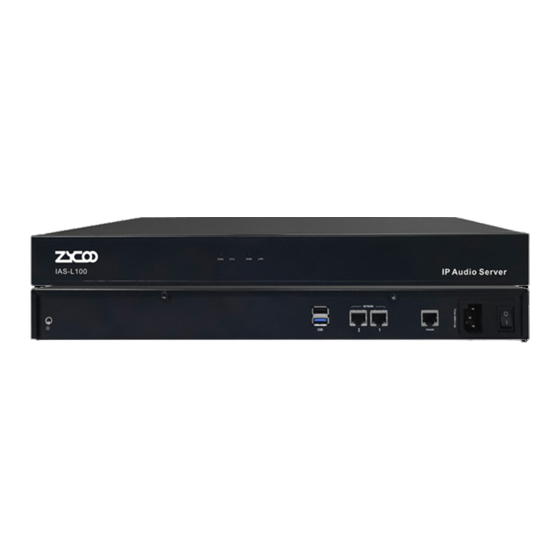

    2. Overview 2.1 Product Overview IAS-L100 is a hardware server pre-installed with ZYCOO IP Audio Center, which can provide users with the out-of-the-box feature to be ready to use. The IP Audio Center is a comprehensive public address system that provides centralized IP audio endpoints auto provisioning and management features.

  • Page 5: Product Features

    The following IP audio endpoints can be integrated into ZYCOO IP Audio Center. Speakers  ZYCOO Network Speakers  Third-party SIP enabled speakers Note: When the third-party SIP enabled speakers have been used with ZYCOO IP Audio Center, only SIP paging is supported, streamed music is not applicable.
  • Page 6 IAS-L100 IP Audio Server User Guide Intercoms  ZYCOO SIP Safety Intercom  Third-party SIP enabled Intercom IP Phones  ZYCOO CooFone series IP phones  Third-party SIP Phones Video Devices  SIP video phones  IP cameras which support RTSP (Hikvision, Dahua) SIP Paging Gateway ...

  • Page 7: Dashboard

    IAS-L100 IP Audio Server User Guide 3. Dashboard 3.1 Accessing the Web GUI Open your web browser, input the default server address and press enter. (Please select the port address according to the actual situation) WAN port: 192.168.1.100 LAN port: 192.168.10.100 Please enter the default administrator login credentials to log in.

  • Page 8: System Dashboard

    IAS-L100 IP Audio Server User Guide 3.2 System Dashboard In this page, you will see the information interface which can provide system information for convenient maintenance. Please go to Dashboard --> Dashboard page to check details. Dashboard System  Version: Display the software version of the server.

  • Page 9: Register Status

    IAS-L100 IP Audio Server User Guide CPU USAGE:  CPU usage graph, indicates the real-time CPU usage in percentage form. MEMORY USAGE: Memory usage graph, indicates the real-time memory usage in  percentage form. 3.3 Register Status In this page, it shows both the SIP trunk information, and all created SIP account information.

  • Page 10: Audio Devices

    4. Audio Devices 4.1 SIP Accounts Settings All IP audio endpoints to be connected to ZYCOO IP Audio Center need to support the standard SIP protocol, and each of them needs to be configured with a SIP account. Please go to Audio Devices --> SIP Accounts page, you can create one SIP account at a time or you can bulk create SIP accounts.
  • Page 11 IAS-L100 IP Audio Server User Guide Add SIP Account...
  • Page 12 IAS-L100 IP Audio Server User Guide Bulk Add SIP Accounts  SIP Number: The SIP account number to be used by an IP audio device, for SIP register and calling (phone call, intercom call, SIP paging call). Number length 2 to 15 digits.

  • Page 13: Devices Settings

    IAS-L100 IP Audio Server User Guide 4.2 Devices Settings When each IP Audio endpoint sends register requests to the IP Audio Center, the device SIP number, device type, model and MAC address will be sent to the IP Audio Center as well.
  • Page 14 IAS-L100 IP Audio Server User Guide  Type: The device type, can be modified.  Label: Label is an additional property of the IP audio devices. It will be used by the IP Audio Dispatch Console to filter IP audio devices in a group with the same label.
  • Page 15 IAS-L100 IP Audio Server User Guide  Active Push: When the camera and the intercom device are on the internal network (behind NAT), then the intercom device can push the video stream from the video camera to the server. Note: No need to turn on this option if the server and the video camera are in the same network.

  • Page 16: Groups Settings

    IAS-L100 IP Audio Server User Guide  RTSP Address: The RTSP address that the video terminal will be used.  Allow Live PA: Allow this device to be called for live SIP paging.  Contact: The contact person who is responsible for maintaining this device.
  • Page 17 IAS-L100 IP Audio Server User Guide Group Number:  The group number can be dialed from an IP phone or other SIP IP audio device to make live announcements to this paging group. Name:  A name to identify this group.

  • Page 18: Telephony

    5. Telephony 5.1 Trunks ZYCOO IP Audio Center supports connecting to ITSP and third-party SIP server or IP PBX system using SIP/IMS trunks for inbound and outbound phone calls. To add a SIP trunk, please go to Telephony --> Trunks page. Click on the add button to add a new trunk.

  • Page 19: Outbound Rules

    IAS-L100 IP Audio Server User Guide Password:  The password of trunk given by the ITSP or the third-party SIP server. Authentication User: Usually it’s the same as username, but when the ITSP provides  a particular authentication user ID, you have to use this ID here.
  • Page 20 IAS-L100 IP Audio Server User Guide Outbound Rules Enable:  Activate this SIP trunk setting. Name:  A name to identify this outbound rule.  Trunk: Select a trunk to be associated with this outbound rule.  Pattern: Dial Patterns act like a filter for matching numbers dialed with trunks.

  • Page 21: Inbound Rules

    Digital receptionist is also known as IVR (Interactive Voice Response), it is one of the most important auto call distribution features in an IP phone system. ZYCOO IP Audio Center supports multi-level digital receptionists for handling the inbound phone calls.
  • Page 22 IAS-L100 IP Audio Server User Guide Add Rule  Name: A name to identify this digital receptionist.  Number: A number that can be called from IP phones or other SIP endpoints to test the digital receptionist menu options.  Prompts: The voice prompts for this digital receptionist menu which will guide the callers to reach their desired call destinations in the IP Audio Center system.
  • Page 23 IAS-L100 IP Audio Server User Guide Rule Example In the above example, when the caller entered the welcome digital receptionist, they will hear the welcome message and tell them to press 1 for Chinese, press 2 for English and press 0 to speak with the operator.

  • Page 24: Reports

    IAS-L100 IP Audio Server User Guide 6. Reports 6.1 Call Logs IP Audio Center admin users can have a list of the full call logs of the system to help them check. And you can filter the call logs by date, caller and callee.

  • Page 25: Recordings

    IAS-L100 IP Audio Server User Guide 6.2 Recordings Phone calls, live announcements, intercom calls and meetings in the IP Audio Center will be automatically recorded. You can search the recording list, playback and download the recordings from the Reports --> Recordings page.
  • Page 26 IAS-L100 IP Audio Server User Guide Note: IP phone call recordings can only be viewed and managed by IP Audio Center admin user, the IP Audio Dispatch users have no access to the IP phone call recordings. Live Announcements Recordings All live announcements made through the IP Audio Center will be recorded, you can find the recordings under the Live announcement recordings menu.
  • Page 27 IAS-L100 IP Audio Server User Guide The recordings of all intercom calls can be found under the Intercom call recordings menu. These calls are either initiated from the intercom device or calls to the intercom devices. If it’ s a video intercom call, then only the voice communication will be recorded.

  • Page 28: System Settings

    IAS-L100 IP Audio Server User Guide 7. System Settings 7.1 System Settings Please go to Settings --> System Settings page, there are some global settings including default volume, indication tone and feature codes. Default SIP Paging Volume During a live SIP paging, the volume of the speakers will be forced to use the default SIP paging volume configured here.
  • Page 29 IAS-L100 IP Audio Server User Guide The default alarm volume is the same as default SIP paging volume, to ensure the alarm sound is audible to all targeted areas it’s better to setup a higher default volume level. After the alarm is stopped, the volume level will be restored.
  • Page 30 Enable/Disable the SIP NAT feature.  Public IP Address: If the system is behind NAT, then it needs to set the public IP address to the Zycoo outgoing SIP package. Please input the public IP address of where the system is located here.
  • Page 31 IAS-L100 IP Audio Server User Guide  Domain/Host name: If you are using a dynamic IP, you can specify a domain/host name, and the system will perform the address queries periodically.  Refresh time: Set the time for the system to periodically perform address query.
  • Page 32 IAS-L100 IP Audio Server User Guide Feature codes are a series of codes that can be dialed from the IP phones or other IP audio endpoints with a keypad to achieve some specific calling or broadcasting features.  Number Triggered Paging Start: The number triggered paging tasks created from the IP audio dispatch console are triggered by dialing the alarm start feature code followed by the task number.

  • Page 33: Recording Settings

    IAS-L100 IP Audio Server User Guide  Always Forward: Always forward will cause all incoming calls to an IP phone to be always forwarded to another number. IP phone users can dial the always forward feature code followed by the target number to setup always forward. To cancel always forward, just simply dial the feature code directly without any target number.

  • Page 34: Audio Prompts

    By using the login credentials, the dispatch users will be able to sign in to the IP Audio Dispatch Console. For more details on how to login and use the IP Audio Dispatch Console, please refer to the ZYCOO IP Audio Dispatch Console User Guide.
  • Page 35 IAS-L100 IP Audio Server User Guide Dispatch Console Settings Add Dispatch Console Users User Name:  The user name of the dispatch user, it will be used by the user to sign in the IP Audio Dispatch Console.  Password: Password to be used along with the dispatch user name for authentication.

  • Page 36: Labels

    IAS-L100 IP Audio Server User Guide Access Level:  There are 12 access levels for the dispatch users, from the highest access level 1 to the lowest level 12, the higher access level user can override the lower access level user’s operations includes telephony features and tasks.
  • Page 37 IAS-L100 IP Audio Server User Guide Lable Settings Last Update:  Displays the last system updating time. Name:  A name to identify the label, and it’s better to be concise. Icon:  Select an icon for this label. ...

  • Page 38: Security

    IAS-L100 IP Audio Server User Guide 7.6 Security The security center is used to configure and maintain the intrusion of SIP and SSH protocols on the network. When a certain IP address illegally requests the server within the specified time range for a specified number of times, the system will automatically add that IP address to the Blacklist and block that IP address.
  • Page 39 IAS-L100 IP Audio Server User Guide SSH Secure Settings  Icon: Select an icon for this label.  Enable: Enable/Disable the SSH intrusion prevention service.  Max number of retries: The maximum number of retries allowed for the same IP address to access during one observation time period.

  • Page 40: License

    IAS-L100 IP Audio Server User Guide Add IP Whitelist  Icon: Select an icon for this label.  Name: The name of the whitelist rule.  Protocols: Specify SIP or SSH protocol to take effect on this rule. IP Address: ...
  • Page 41 IAS-L100 IP Audio Server User Guide License...
