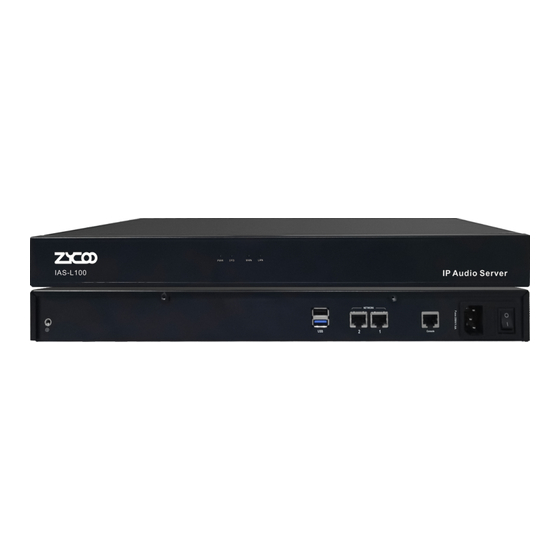

- Page 1 F O R S M E B U S I N E S S Quick Installation Guide IAS-L100 IP Audio Server...
- Page 2 IP Audio Server Please read the instructions carefully before using. IAS-L100 is a hardware server pre-installed with ZYCOO IP Audio Center, which can provide users with the out-of-the-box feature to be ready to use. The IP Audio Center is a comprehensive public address system that...
-
Page 3: Table Of Contents
CONTENTS 1 ....Package Contents 2 ....Hardware Installation 2 . -
Page 4: Package Contents
Package Contents IP Audio Server Thank you for purchasing ZYCOO . These are the items IP Audio Server included with your purchase: IAS-L100 (1 pcs) Mounting Brackets Power Adapter(1 pcs) and Fittings(2 pcs) Warranty Card Quick Installation Guide (1 pcs) -
Page 5: Hardware Installation
Confirm not to bring about the overload of power circuit before turning on the power of IAS-L100, to avoid the unnecessary damage. To avoid the electric accident, do not open or remove the cover of IAS-L100 when it is working as well as off the power. - Page 6 Site Requirements 40℃ 0℃ To ensure normal operation and long service life of the device, please install it in an environment that meets the requirements described in the following subsection. Please keep a proper temperature and humidity in the equipment room. Too high/low humidity may lead to bad insulation, electricity leakage, mechanical property changes and corrosions.
- Page 7 The dust accumulated on IAS-L100 can be absorbed by static electricity and result in poor contact of metal contact points. Some measures have been taken for the device to prevent static electricity, but too strong static electricity can cause deadly damage to the electronic elements on the internal circuit board.
- Page 8 Lightening Protection Extremely high voltage currents can be produced instantly when lightning occurs and the air in the electric discharge path can be instantly heated up to 20,000℃. As this instant current is strong enough to damage electronic devices, more effective lightning protection measures should be taken: Ensure the rack and devices are well earthed.
-
Page 9: Product Installation
Product Installation Installation Tools Phillips screwdriver ESD-preventive wrist wrap Cables Rack Installation To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: Check the grounding and stability of the rack. Secure the supplied rack-mounting brackets to each side of the device with supplied screws as illustrated in the following figure. - Page 10 Install IAS-L100 to the right place in the rack, and then attach the brackets to the device. IA S - L1 IP A u d io S e rv After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack, as illustrated in the following figure.
- Page 11 Users can try to choose the most appropriate measure according to different situation. If IAS-L100 is installed in the computer room, and the room has dedicated Grounding bar, then the using of ground wire to connect the device with the Grounding bar is put to the first consideration as shown in the following figure.
- Page 12 If the device is installed in the normal environment, the device can be grounded via the PE (Protecting Earth) cable of the AC power supply as shown in the following figure. [1] IAS-L100(Rear panel) [2] AC Power Cord(with PE cable) NETWORK...
-
Page 13: Physical Connection
Physical Connection Computer Power Adapter Router LED De nitions Indication Function Status Explaination Geeen Power On Power Status Power Off Wink System is Running System Status System Booting or Failed Wink Data Transmitting WAN/LAN WAN/LAN Interface Status No Data Transmitting... -
Page 14: Basic System Configuration
Basic System Con guration Web Login Connect a PC directly with the IAS-L100 on WAN or LAN port. Default IP of WAN port is 192.168.1.100, and default IP of LAN port is 192.168.10.100. Please change the PC IP address to 192.168.1.xx if you have connected WAN, or 192.168.10.xx if you have connect LAN. - Page 15 Fu her Information Thank you for the purchase of ZYCOO products. The above steps introduce basic configurations for IAS-L100. For further configurations, please refer to the user manual. If you have other questions, please contact the ZYCOO local dealers or...
- Page 16 Leading IP Phone System Provider Zycoo Communications LLC www.zycoo.com © 2023 Zycoo Communications LLC All rights reserved...
