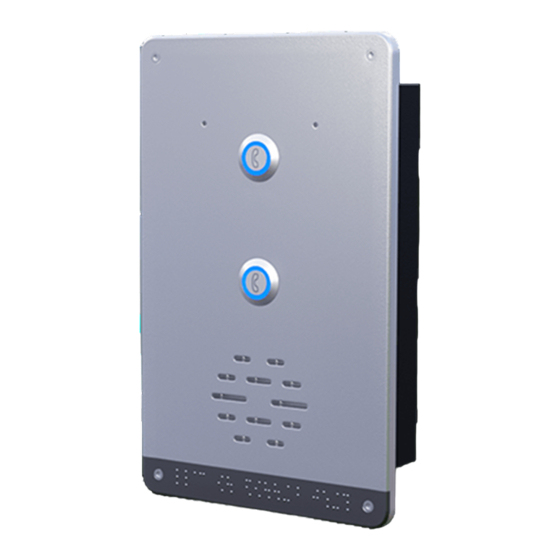

Safety intercom
Hide thumbs Also See for Ei Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ei Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zycoo Ei Series

Summary of Contents for Zycoo Ei Series

  • Page 2: Table Of Contents

    Contents 1. Preface ........................1 1.1 Audience ......................1 1.2 Revision History ....................1 2. Overview ........................2 2.1 Product Overview ....................2 2.2 Product Specifications ..................2 3. Login the Device ....................3 3.1 Accessing the Web GUI ..................3 3.2 Device Info ......................4 4.
  • Page 3 7.4 Auto Provisioning .................... 28 7.5 Test ......................... 29...

  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the Ei Series Safety Intercom. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the Ei Series Safety Intercom.

  • Page 5: Overview

    Ei Series Safety Intercom User Guide 2. Overview 2.1 Product Overview Ei Series Safety Intercom is available in four models designed to address the needs and requirements of various applications and installation types. All models deliver full-duplex communication and secure access control for your VoIP system.

  • Page 6: Login The Device

    Ei Series Safety Intercom User Guide 3. Login the Device 3.1 Accessing the Web GUI Ei intercom obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), or press and hold the press button for 5 seconds and then release...

  • Page 7: Device Info

    SIP Status SIP Account:  Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status.
  • Page 8 Ei Series Safety Intercom User Guide Device Information Device Model:  Displays the model of the device. Hardware Version:  Displays the hardware version number of the device.  Software Version: Display the system version number of the device. ...

  • Page 9: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 10 Ei Series Safety Intercom User Guide Secondary SIP 1 Account Secondary SIP 2 Account  SIP Server: Enter the IP address or domain name of the SIP server.

  • Page 11: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.
  • Page 12 Ei Series Safety Intercom User Guide P2P Account  User ID: The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.  Auto Answer: Yes/No/Answer Delay, default in the Yes option.

  • Page 13: Audio Codecs

    Ei Series Safety Intercom User Guide 4.3 Audio Codecs Ei intercom supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page. Audio Codecs Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.
  • Page 14 Ei Series Safety Intercom User Guide Advance SIP Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.

  • Page 15: Video Settings (Ei-V05 Only)

    Ei Series Safety Intercom User Guide 4.5 Video Settings (Ei-V05 Only) To configure the camera related parameters of Ei-V05, please go to SIP Settings --> Video page. Video  RTSP Access: Enable/Disable the RTSP access setting.  H.264 Payload Type: Configure the payload used for the H.264 encoding.

  • Page 16: Advanced Settings

    Ei Series Safety Intercom User Guide 5. Advanced Settings 5.1 Volume Settings To set the volume of the Ei intercom, please go to Advanced --> Volume page to configure. Volume Settings  Speaker Volume: The default speaker volume is 7, adjustable range is 0 ~ 9.

  • Page 17: I/O Settings

    Ei Series Safety Intercom User Guide 5.2 I/O Settings This page is used to configure configuration parameters related to security linkage, such as: trigger settings, relay settings and other related configurations. Please go to Advanced --> I/O Settings page to set the specific settings.
  • Page 18 Ei Series Safety Intercom User Guide Note: when using the P2P line to call, please specify the device’s number plus IP address, such as 101@192.168.11.123. Press Again to End Call: After the call is connected, users can end the call or ...
  • Page 19 Ei Series Safety Intercom User Guide Repeat: Configure the times of audio repetitions triggered by the sensor  input. Relay Control  Trigger by Input Signal: Enable/Disable, enable this option if you neeed to use Input signal to trigger. Trigger by DTMF Signal: Enable/Disable, enable this option if you neeed to use DTMF ...

  • Page 20: Api Settings

    Ei Series Safety Intercom User Guide Relay Reset:  This setting represents the reset mode after the trigger is responded, there are ‘Delay Reset’ and ‘Hang-up Reset’ options to choose from. Duration (Sec): This setting is only available if the reply control mode is on ...
  • Page 21 Ei Series Safety Intercom User Guide ${ua}： The account of the current call ${number}： The number of the current call When the relay status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.

  • Page 22: Multicast

    Ei Series Safety Intercom User Guide 5.4 Multicast The multicast settings are used to configure the parameter settings of the multicast function on the SIP Safety Intercom. It can be configured to monitor up to 9 different levels of multicast addresses, the audio streams with a higher priority will interrupt the playback of the lower priority audio streams.

  • Page 23: Prompt Language

    Ei Series Safety Intercom User Guide Multicast Address:  The multicast address range is 224.0.0.0 – 239.255.255.255. Multicast Port:  The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.  Relay Control: Options to choose from are ‘Disabled’, ‘On’, ‘Fast Flashing’,...
  • Page 24 If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced Settings ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.

  • Page 25: System Settings

    Ei Series Safety Intercom User Guide 6. System Settings 6.1 Network Ei intercom uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 26: Time

    Ei Series Safety Intercom User Guide  Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 6.2 Time Ei intercom obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page.

  • Page 27: Upgrade

    Ei Series Safety Intercom User Guide Web Password Settings  Old Password: This setting represents the current user password.  New Password: This setting represents the new password user would like to set 6.4 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page.

  • Page 28: Reboot & Reset

    Ei Series Safety Intercom User Guide Current Firmware Version: Displays the version currently used by the system.  Last Update:  Displays the last system updating time.  Reset Factory Defaults: Specify whether to restore factory settings when upgrading. ...
  • Page 29 Ei Series Safety Intercom User Guide Reboot Schedule When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specified time.

  • Page 30: Maintenance

    Ei Series Safety Intercom User Guide 7. Maintenance 7.1 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.

  • Page 31: Import/Export

    Ei Series Safety Intercom User Guide 7.3 Import/Export This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recover. Both YAML and JSON formats are supported.
  • Page 32 Ei Series Safety Intercom User Guide Auto Provisioning 7.5 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
  • Page 33 Ei Series Safety Intercom User Guide Test Settings Speaker Test:  Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.

This manual is also suitable for:

Ei-v05Ei-d05Ei-w05Ei-a05
