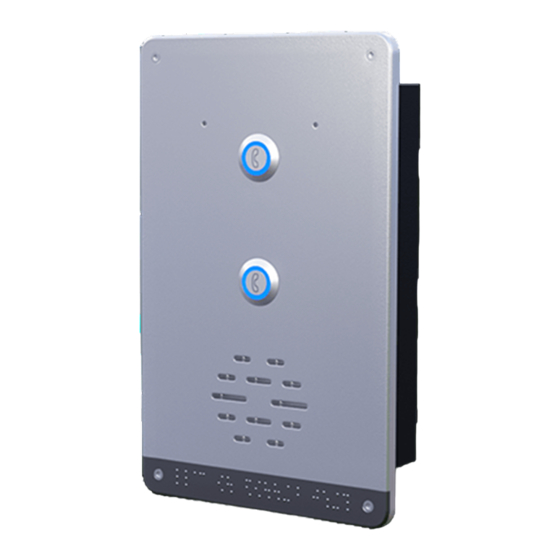

Summary of Contents for Zycoo Ei Series

  • Page 2: Table Of Contents

    Contents Overview ..........................1 Product Overview ........................1 Product Specifications ......................1 Basic Settings .......................... 2 Web Interface Login ......................2 Device Info ........................... 3 SIP Account.......................... 4 P2P Account .......................... 7 Audio Codecs ........................7 Advance SIP Settings ......................8 Video (Ei-V05 only) ......................
  • Page 3 Ethernet Capture ....................... 20 Import/Export ........................20 Auto Provisioning ....................... 21 Test ............................ 22...

  • Page 4: Overview

    All models deliver full-duplex communication and secure access control for your VoIP system. Ei Series is PoE/PoE+ supported, making it easy to connect to the local area networks from your PoE switch with a CAT 5/6 cable. No extra power supply is required.

  • Page 5: Basic Settings

    Default password: admin For the safety of the intercom device, it is recommended to change the default password on first login, please go to System -> Account page to change the password. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 6: Device Info

    After login, you’ll first see the Device Info screen. SIP STATUS  SIP Account: The SIP number configured on this device.  SIP Server: The SIP server (ZYCOO IP Audio Center or other IP PBX) address.  Register Status: The SIP number registration status. DEVICE INFORMATION ...

  • Page 7: Sip Account

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘ZYCOO IP Audio Center’ option.
  • Page 8 Secondary SIP 1 Account Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 9 SIP header detection.  NAT Mode: Select the NAT mode and fill out the corresponding data. STUN, TURN, and ICE modes are supported. Activate: Enable/Disable the SIP register feature.  Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 10: P2P Account

    Audio Codecs The network speakers support 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw) and Opus To enabled or disable an audio codec/codecs, please go to SIP Settings -> Audio Codecs page. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 11: Advance Sip Settings

    Local Port: This setting represents the port that used to received SIP packets.   RTP Start Port: This setting represents the starting RTP port that the system will use for media sessions. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 12: Video (Ei-V05 Only)

    Set the maximum transmission unit of video stream packets in the network.  Effect Controls: Standard: Resolution 1280*720, Frame rate 25fps, Bit rate 1536Kbps. Normal: Resolution 704*576, Frame rate 25fps, Bit rate 768Kbps.  Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 13: Advanced Settings

    Please go to the Settings -> I/O Settings page. For press-to-talk (or push-to talk), any desired number can be setup here. As a result, when the call button has been pressed, the intercom will try to call this number. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 14 The number that need to dial  Line: Line represents the line that will be using to dial the call. Trigger Audio: Select the audio to play when sensor is triggered.  Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 15: Api Settings

    This page is used to configure the API interface of the device. Through the API interface, you can realize devices linkage, call control, relay control, and play sound by using the change status of call and/or relay. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 16 ${mac}: The current MAC address of the device  API Settings Using the API interface to realize features such as, devices linkage, call control, relay control, and play sound by the systems. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 17: Multicast Settings

    Safety Intercom. It can configure to monitor up to 9 different levels of multicast addresses, the audio streams with a higher priority will interrupt the playback of the lower priority audio streams. Please go to Advance Settings -> Multicast Settings. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 18: Prompt Language

    The Audio files section allows users to self-upload up to 5M of audio files to the endpoint and use it as ringtone or Play API audio file. Please click on the button to select and upload the local audio Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 19: Settings

    Settings Network Setting To change the IP assignment from DHCP to Static IP, please go to Settings -> Network Settings page. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 20: Time Settings

    Alternative DNS: Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. Time Settings The network speakers obtain time from the network time servers using NTP, to change the NTP settings please go to Settings -> Time Settings page. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 21: Upgrade

    You’ll first see the current firmware version of the network speaker and the last upgrade time. Upload the .img file provided by ZYCOO to perform the upgrade action. If you wish to reset the network speaker to factory defaults after upgrading, please enable the “Reset Factory Defaults” parameter.

  • Page 22: Reboot & Reset

    “Resetting factory defaults, rebooting…”, it means the speaker will now reset. When the Reboot Schedule feature is Enabled, you can set up the automatic reboot daily, weekly, or monthly at a specify time. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 23: Maintenance

    This page is used to import and export the current configuration of the device, and you may use this configuration file to backup and/or recovery. Both YAML and JSON formats are supported. Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 24: Auto Provisioning

    Static, it will use the below Static Provisioning Server data to directly obtain the configuration file. The configuration file name's format rules: 1) all letters in the server MAC address need to be uppercase 2) all colons ":" need to be removed. For example, 68692E290012 Network Speaker User Guide | ZYCOO Co., Ltd.

  • Page 25: Test

    Test The detection feature provides an option for user to check whether the speaker is working functionally before registering it to the server. Network Speaker User Guide | ZYCOO Co., Ltd.
  • Page 26 Microphone Loop Detection: Click on the Start button, then start speaking to the device. If the speaker is working functionally, you should hear the voice back. Relay Test: Click on the Test button, then start using the relay device to test whether the device is working. Network Speaker User Guide | ZYCOO Co., Ltd.

This manual is also suitable for:

Ei-d05Ei-v05Ei-w05Ei-a05
