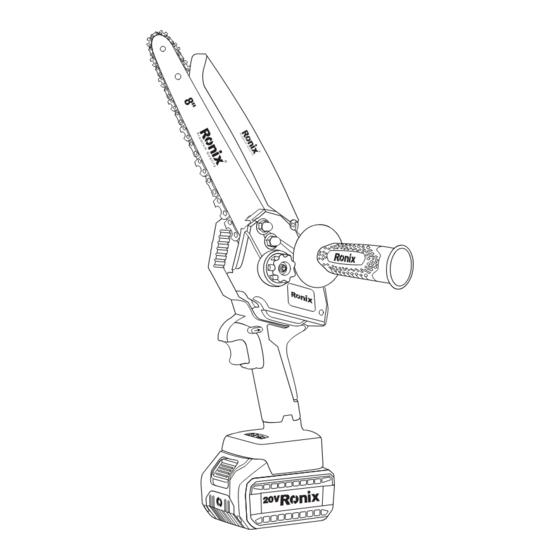

- Page 1 BRUSHLESS CHAIN SAW 20V/8" 8658...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION 8658 Model Voltage Battery Type Lithium battery Battery Capacity Maximum Cutting Diameter 140mm Chain Size 290mm Chain Bar Length 239mm No-Load Speed 3800RPM Chain Speed 5m/s Oil Tank Capacity 25ml Run Time 30min Cuts Per Battery Charge 30Pcs... -
Page 4: Parts List
PARTS LIST Guide Bar Guide bar Cover chain saw Handle Tension knob Switch Trigger Battery Cartridge FUNCTION DESCRIPTION host Guide Plate BRUSHLESS CHAIN SAW 20V/8"... - Page 5 Loosen the nut counterclockwise and remove the side cover OPERATING INSTRUCTION Chain 1- How to remove chain, loosen compression button, remove the side cover After remove the side cover as picture, remove the guide directly. 2- How to install the chain guide plate: first load the chain into the guide plate, and the middle guide tooth just sticks into the guide plate guide slot.
- Page 6 Manually Screw The M6 Nut Into The Machine M6 outer hexagonal flange nut BRUSHLESS CHAIN SAW 20V/8"...
- Page 7 Open the oil cover, pour the lubricating oil into the oil bottle, tighten the oil cover 3- The chain tightness is shown below. NOTE: 1-3 middle guide teeth are exposed in the pull down chain. 1- The new chain will be stretched in the early stage of use. Please check and adjust to the appropriate tension frequently, because the loose chain is easy to derail, which may lead to rapid wear of the chain and guide plate.
-
Page 8: Charging The Battery
Charging jack Battery packing: Pay attention to aligning slots, inserts. Install the battery into the machine Press The Switch To Start The Machine Battery cartridge NOTE: Say carefully open the package, check the weather components are all: electric coarse branch. 1- electric coarse branch 2- Battery 3- Charger... - Page 9 Before delivery, the battery of this product is not fully charged. There fore, before the first use, it must be sufficient electricity. Do not charge the battery for long periods of time, and do not run out of all the power in the soap tank, otherwise it will damage the battery. If the battery with the sufficient is significantly shorter, it must be replaced if the battery is exhausted.
- Page 10 devise make sure the voltage of the power supply is consistent with the voltage on the nameplate. The risk of injury can be reduced by wearing protective devise and ensuring that the devices are functioning properly. Confirm the frequency of the operation to ensure that the operation is in the best condition.
- Page 11 otherwise, it may cause electric shock. Keep the ventilator, motor room and equipment handle clean. Use a damp cloth or brush cleaner. don’t use a bay cleaner. Otherwise, it may cause permanent failure of the equipment please clean the blade carefully after each use. Use oily cloth to wipe the blade and absorb the metal to protect the fog.
