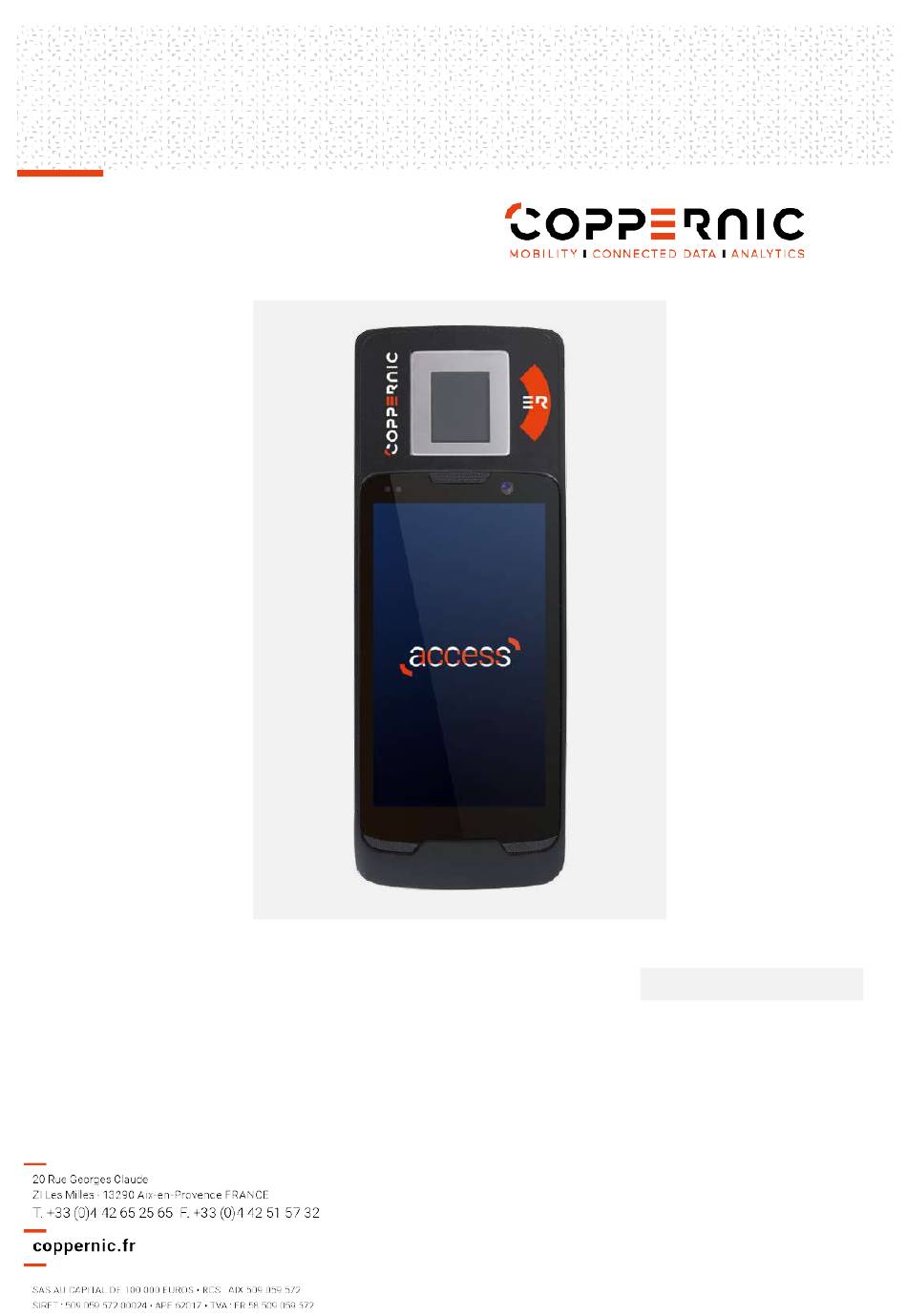

- Page 1 NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 | Non-Contractual Pictures |...
-
Page 2: What's In The Box
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 WHAT'S IN THE BOX ? access-ER-HF NFC | FAP30 | SC DEVICE HANDSTRAP EU PLUG NOTICE CABLE MICRO USB C | USB A BATTERY POWER SUPPLY TEST REPORT... -
Page 3: Product Overview
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 PRODUCT OVERVIEW access-ER-HF NFC | FAP30 | SC Fingerprint Smart card reader receiver led indicators P1 function key camera KEY LEFT UP P3 function key P2 function key... -
Page 4: Setting Up Your Device
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Setting up your device NANO SIM | MICRO SD cards installation Press the left and right latches at the same time and remove the battery. • Insert the Micro SD card into SD slot •... - Page 5 Make sure that the latches are properly positioned to the left and right so that the battery door closes properly. CAUTION 1. Replace the battery only with an identical battery or with an equivalent type of battery recommended by Coppernic. 2. Please recycle used batteries in accordance with current regulations.
- Page 6 • Charge the BATTERY Before using the access-ER, please charge the battery using one of the following accessories approved by COPPERNIC. Insert the micro USB-C cable into the access-ER and the USB A cable into the power supply. > The Micro USB C | USB A cable is included in the device’s box.
-
Page 7: Back View
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Setting up your device CRADLE: DS-access-1000 The LED indicator shows the connection status of the docking station as well as the battery charge status. Insert the Jack Power Adapter into the docking station and the power supply into the socket. -
Page 8: Using Your Device
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Using your device TURNING ON | TURNING OFF your device Power On | Press and hold for 3 seconds the ON | OFF button. Power Off | Press and hold for 2 seconds the ON | OFF button and select “Power off”... -
Page 9: Fingerprint Sensor
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Using your device DATA CAPTURE | photos & videos Use cameras to take photos and record videos. Go to the Home screen > select "Camera" > press the camera icon to take a picture/ switch to the video icon and press for video recording. -
Page 10: Smart Card Reader
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Using your device SMART CARD READER To read the smart card : Remove the cap Insert smart card in the right direction as below Page 10 | 17... - Page 11 NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 CE Regulatory information Page 11 | 17...
- Page 12 NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 The highest SAR values for this device model are: Body: 1.314 W / Kg (separation distance of 5 mm / Exposure limits 2.0 W / Kg) •...
- Page 13 These requests are designed to prevent possible interference with sensitive medical equipment. Safety Information – Europe This device was tested for typical body-worn operation. Use only COPPERNIC tested and approved accessories to ensure EU compliance. Page 13 | 17...
-
Page 14: Power Adaptor
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Power Adaptor Use only an access-ER approved Power Adaptor with electrical ratings: Output 5VDC, min 2A, with a maximum ambient temperature of at least 45°C. Use of alternative power adaptor will invalidate any approvals given to this device and maybe dangerous. -
Page 15: Operating Frequency
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Operating frequency The use of 2.4 GHz RLAN's, for use through the EEA, have the following restrictions: Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 - 2.4835 GHz France, outside usage is restricted to 2.4 - 2.454 GHz. -
Page 16: Fcc Caution
NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 United States and Canada Regulatory Body - Worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10 mm must be maintained between the user’s body and the handset, including the antenna. - Page 17 NFC | FAP30 | SC Quick Start and Regulatory Guide 230125 B00 Radio Frequency Interference Requirements - Canada IC ID: 8402A-ACERNFCSC Radio Transmitters This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s) Operation is subject to the following two conditions: This device may not cause interference, and •...
