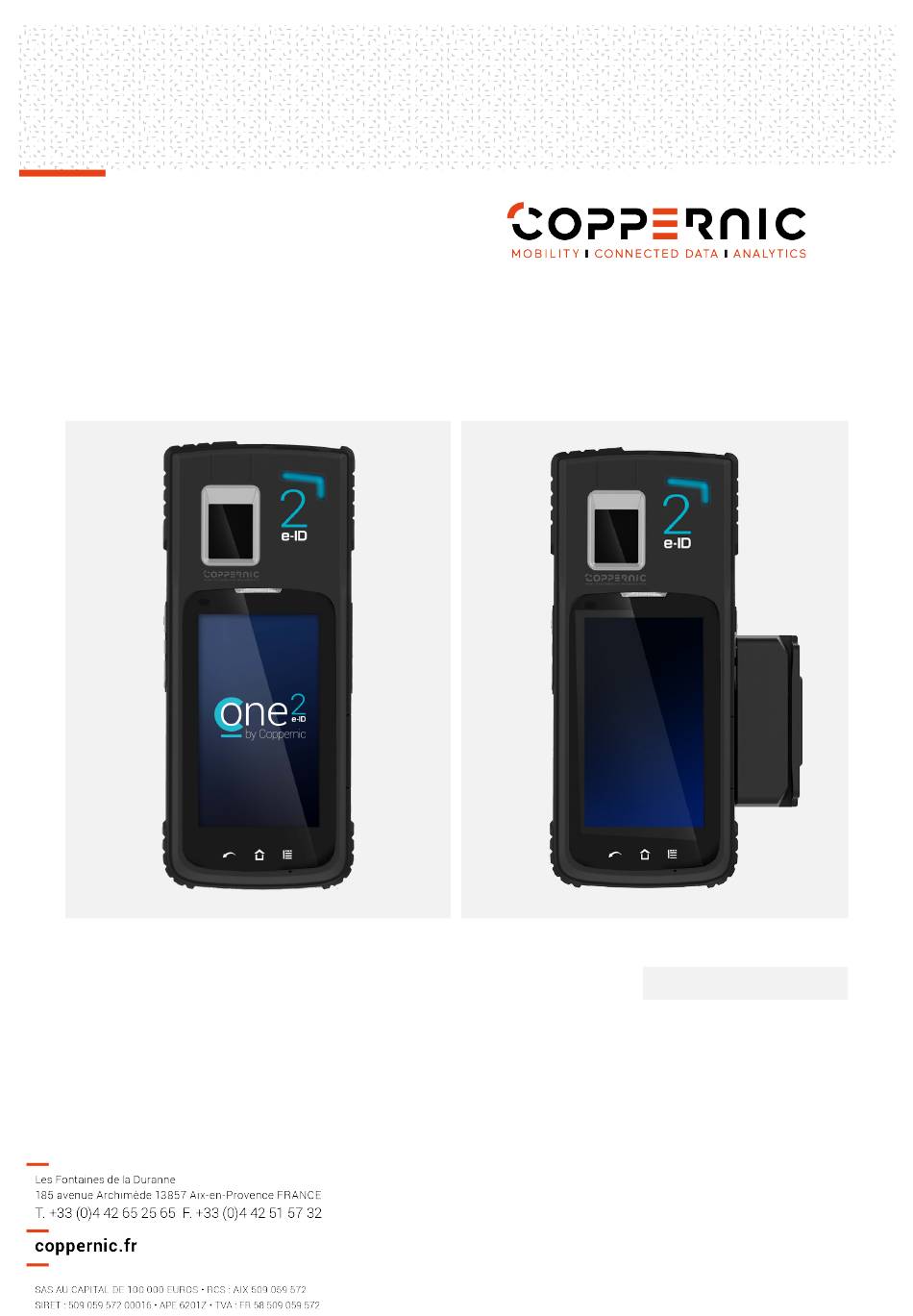

- Page 1 C-One e-ID Quick Start and Regulatory Guide 190087 A30 | Non-Contractual Pictures |...
-
Page 2: What's In The Box
C-One e-ID Quick Start and Regulatory Guide 190087 A30 WHAT'S IN THE BOX ? C-One e-ID C-One e-ID with MRZ DEVICE WITH OR W/O MRZ PLUGS : EU | UK | US | AUS HANDSTRAP NOTICE CABLE MICRO USB | USB A POWER SUPPLY STYLUS TEST REPORT... -
Page 3: Product Overview

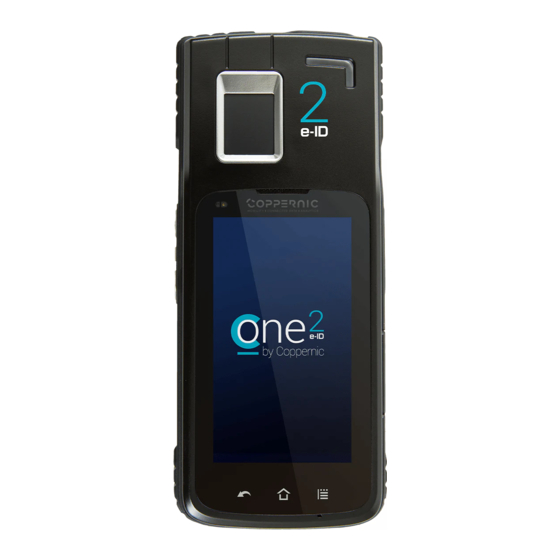

C-One e-ID Quick Start and Regulatory Guide 190087 A30 PRODUCT OVERVIEW C-One e-ID RFID fingerprint scanner flash programmable key | scan key (P2) power key antenna led indicators camera receiver volume keys + / - programmable key (P3) 4.5’’ touch panel speaker programmable key | scan key (P1) touch keys... -
Page 4: Setting Up Your Device
C-One e-ID Quick Start and Regulatory Guide 190087 A30 Setting up your device CAUTION Failure to completely reseal the Micro SD | Micro SIM card slot cover may lead to water or other liquids entering the casing which may cause damage to the device. MICRO SIM card installation Remove the screw and open the Micro SD | Micro SIM door. -
Page 5: Back View
Charge the BATTERY Before using the C-One² e-ID, please charge the battery using one of the following accessories approved by COPPERNIC. Insert the micro USB cable into the C-One² e-ID and USB A cable into the power supply. - Page 6 C-One e-ID Quick Start and Regulatory Guide 190087 A30 Setting up your device LED indicators LED1 LED2 Low battery Red LED blinks (LED1) Battery is charging Red LED (LED1) Battery is fully charged Green LED (LED1) BT devices connected or receiving messages/notifications Blue LED blinks (LED2) Page 06 | 14...
-
Page 7: Using Your Device
C-One e-ID Quick Start and Regulatory Guide 190087 A30 Using your device TURNING ON | TURNING OFF your device Power Off | Press and hold during 5 sec. the power button and select “Power off” in the dialog box. Reboot | Press and hold during 5 sec. - Page 8 Complies with 21cfr1040.10 and 1040.11 except for deviations pursuant to laser notice no. 50, dated June 24, 2007 and IEC/EN 60825-1:2014. NOTE Please remove the protector film before using scanner. Scan with the imager Use "barcode manager" provided by Coppernic. • Side-Key Remapping for scanning Go to "Settings" > Select "Remap key & Shortcut" •...
-
Page 9: Smart Card Reader
C-One e-ID Quick Start and Regulatory Guide 190087 A30 Using your device RFID SMARTCARD READER - C-One e-ID with RFID options to read - Please put the smartcard in the slot. Please put the TAG/CARD on the RFID area. RFID READING AREA OCR READER FINGERPRINT SENSOR Slide the document in the guide rail. -
Page 10: Regulatory Information
C-One e-ID Quick Start and Regulatory Guide 190087 A30 Regulatory information CAUTION Only use COPPERNIC approved accessories. Operating frequencies C-One e-ID Handheld Device EUT Type COPPERNIC Brand Name C-ONE² E-ID Model Name GSM 900 : 880 ~ 915 GSM 1800 : 1710 ~ 1785... -
Page 11: Laser Devices
These requests are designed to prevent possible interference with sensitive medical equipment. Safety Information – Europe This device was tested for typical body-worn operation. Use only COPPERNIC tested and approved accessories to ensure EU compliance. Laser Devices Class 2 laser scanners use a lower power, visible light diode. -
Page 12: Battery Safety
45°C. Use of alternative power adaptor will invalidate any approvals given to this device and maybe dangerous. Battery Information Use only a COPPERNIC approved batteries. When devices are stored over six (6) months without use, some irreversible deterioration in overall battery quality may occur. Store devices at half of full charge in a dry, cool place. -
Page 13: Fcc Information To Users
C-One e-ID Quick Start and Regulatory Guide 190087 A30 FCC Information To Users Radiation Exposure Compliance This product complies with the FCC RF exposure limits for an uncontrolled environment. FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 14 Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. Copyright 2020 COPPERNIC. All rights reserved. © Page 14 | 14...
