Coppernic ID Platform FAP30 Quick Start And Regulatory Manual

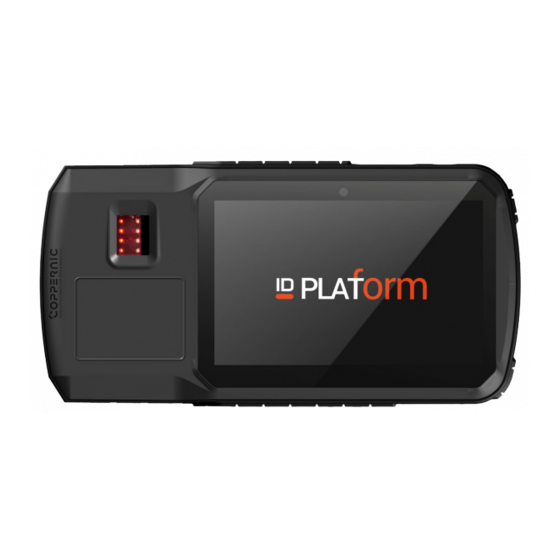

Multi-biometric id authentication tablets for government use
Hide thumbs Also See for ID Platform FAP30:
Table of Contents

Advertisement

Quick Links

Download this manual
ID Platform FAP30
Quick Start and Regulatory Guide
QSG
200054 A10
| Non-Contractual Picture |

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID Platform FAP30 and is the answer not in the manual?

Questions and answers

Related Manuals for Coppernic ID Platform FAP30

Summary of Contents for Coppernic ID Platform FAP30

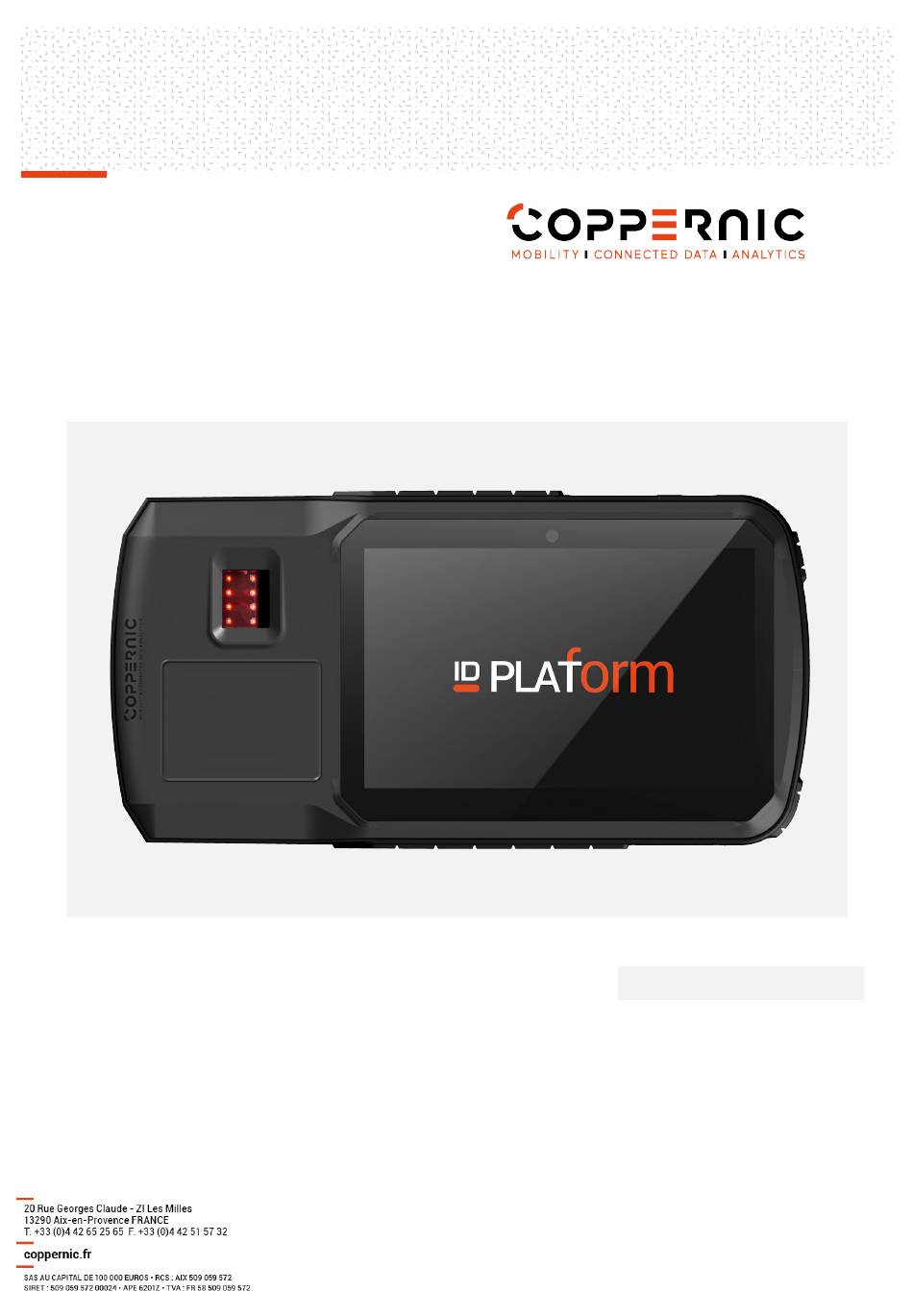

  • Page 1 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 | Non-Contractual Picture |...

  • Page 2: Safety Precautions

    The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • Additional accessories can be purchased from your local COPPERNIC retailer. • Using unapproved accessories may cause performance issues and malfunctions that are not covered by the •...

  • Page 3: What's In The Box

    ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 WHAT'S IN THE BOX ? DEVICE PLUGS : EU | UK | US TEST REPORT NOTICE CABLE MICRO USB C | USB A POWER JACK CABLE Page 03 | 14...

  • Page 4: Product Overview

    ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 PRODUCT OVERVIEW fingerprint sensor front camera FAP30 light sensor rear camera charge indicator antenna area LED flash LED flash loudspeaker battery cover Product label IR led IR led iris scanner...
  • Page 5 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 PRODUCT OVERVIEW function key configurable SIDE VIEW #01 power key volume keys +/- SIDE VIEW #02 12V/2,5A power jack cable USB-A host port USB-C service port SIDE VIEW #03 micro sim card slot...
  • Page 6 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 TOUCHSCREEN RECOMMENDATIONS ID PLATFORM IS EQUIPPED WITH A 5 POINTS MULTITOUCH GFF SENSOR TYPE. Do not allow the touchscreen to come into contact with other electrical devices. • Electrostatic discharges can cause the touchscreen to malfunction.

  • Page 7: Setting Up Your Device

    200054 A10 Setting up your device CAUTION ID Platform FAP30 can accommodate only one type of removable battery. Charge the BATTERY 12.600 mAh battery should be charged ONLY with the charger provided. Damage occurring when using another charger will not be covered by the warranty.
  • Page 8 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Setting up your device MICRO SD card installation NOTE Micro SD cards up to 256GB can be used with the ID Platform (not included) To insert the Micro SD card, open the side door.
  • Page 9 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Setting up your device MICRO SIM card installation Switch off the tablet. • To insert the Micro SIM card (SIM1), open the side door. • Insert carefully the Micro SIM card into the slot as shown with the gold contacts facing up.
  • Page 10 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Setting up your device MICRO SAM installation To insert the Micro SAM, open the side door. • Insert carefully the Micro SAM into the slot as shown with the gold contacts facing up.
  • Page 11 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Setting up your device Audio Wired headset (microphone + stereo earpieces) can be used with the ID Platform. • Headset with CTIA 3.5mm jack should be used. • ID Platform is also compatible with any type of wireless BT 4.x accessories.
  • Page 12 ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Using your device TURNING ON | TURNING OFF your device Power On | Press and hold during 3 sec. the power button. Power Off | Press and hold during 3 sec. the power button and select “Power off” in the dialog box.

  • Page 13: Using Your Device

    ID Platform FAP30 Quick Start and Regulatory Guide 200054 A10 Using your device DATA CAPTURE | photos & videos Use the rear camera to take photos and capture video. Go to Home Screen > select “Camera” > Tap camera icon or screen to take a picture/switch to video icon and tap for video recording.

  • Page 14: Battery Information

    200054 A10 Battery Information Use only COPPERNIC approved batteries. When devices are stored over six (6) months without use, some irreversible deterioration in overall battery quality may occur. Store devices at half of full charge in a dry, cool place. When storing devices for one year or longer, the charge level of battery should be verified at least once a year and charged to half of full charge.
