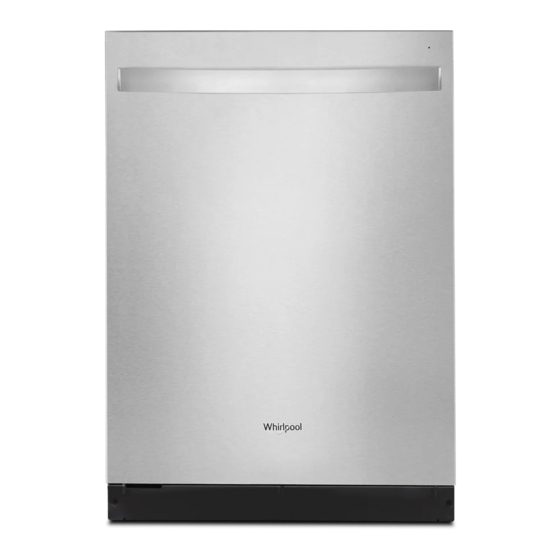

Whirlpool WDT730HAMZ Removal Manual

Rack Removal Guide
IMPORTANT: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in
your appliance's Owner's Manual, before operating this appliance.
Depending on your model, your dishwasher's second- or third-level rack may be removable. You may be able to use one or more of the
methods listed below.
IMPORTANT: Remove dishes prior to removing the upper rack from the dishwasher.
Style A
This method may apply for second- and/or third-level rack(s).
To remove the rack:
1. Roll the rack 1/3 to 1/2 of the way out of the tub.
2. Rotate the rack stops outward.
3. Roll the rack all the way out of the track and remove from the
dishwasher.
To replace the rack:
Reverse the above steps 1–3 to replace the rack into the
dishwasher.
Style B
This method may apply for first- and or second-level rack(s).
To remove the rack:
1. To gain access to the removable tabs on the tracks/rails, pull
the upper rack forward about halfway out of the tub.
2. On one side, press the tab on the track in and pull the front end
of the rack up and out of the track. Then repeat this step on the
other side to completely remove the front end of the rack.
3. Remove the rack by pulling the back end out using a forward
and upward motion.
To replace the rack:
1. Pull the tracks forward about halfway out of the tub.
2. Along the sides of the racks are round attachment tabs. Align the rack's back end attachment tabs with the cutout in the track. Push
down into place.
3. Pull the tracks completely out, and align the rack's front end attachment tabs with the cutout in the track. Push down into place. You
will hear a snap when the front end of the rack is secured into place on each side.
1
