Sunricher SR-GW-EDA Manual

DIN Rail Ethernet (IP) DALI Gateway
2
Important: Read All Instructions Prior to Installation

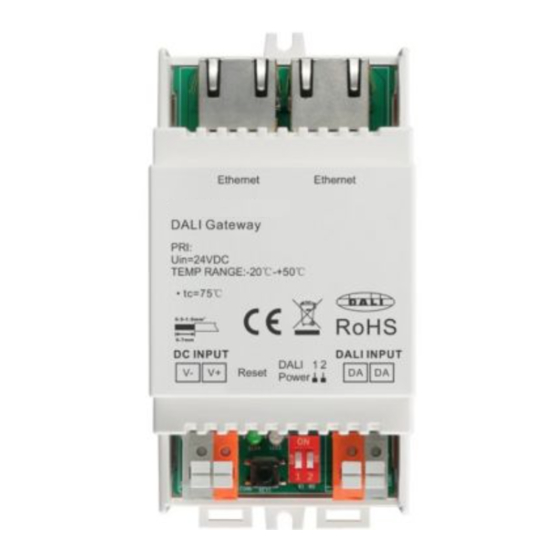

Function introduction
DALI EDA Gateway
Power indicator
24VDC Input
Reset Key: Long press it to help withdraw
the device from Internet/APP.
Product Data
While built-in DALI PS enabled
Input
Number of Output Output
Voltage
DALI Channel Voltage Current
1 12-22.5VDC 250mA max
24VDC
While built-in DALI PS disabled
Input DALI Current
Number of
Size(LxWxH)
Voltage DALI Channel Consumption
110x53x65mm
24VDC 1 Max. 2mA
• Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
• Supports
addressing , grouping and scene configuration for max. 64 control gears (DALI-1 and DALI-2)
• Built-in 250mA DALI PS, no extra wiring required
• Easy connect to a network through Ethernet connection
• Easy & quick configuration through DALI Center PC application
• Built-in battery, built-in RTC, supports timer task configuration
• Waterproof grade: IP20
• 5 years warranty
RJ45 Terminal
8 7 6 5 4 3 2 1
Prog. indicator: It turns to blue
during reset
1 2
DALI Output/Input
1 2
Enable or disable to
Disabled
use built-in DALI PS
Enabled
by dial switches:
Ambient
Size(LxWxH)
Temperature
110x53x65mm -20℃ ~ +50℃
Ambient
Temperature
-20℃ ~ +50℃
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring Diagram
1) While built-in DALI PS enabled
DALI
Center
N G
L
L
V -
24V
N
CV PSU
V+
G
DALI-2 Push Button
DALI-2 Sensor
Note: When built-in DALI Bus PS is enabled, a DALI gateway can supports up to 64 control gears.
Router
The next gateway can be cascaded to the
previous gateway or directly connected to
the router
DALI EDA Gateway DALI EDA Gateway
1 2
1 2
DA
DALI DT6 Control Gear
DA
DA
DALI DT6 Control Gear
DA
DA
DALI DT8 Control Gear
DA
