Sunricher SR-2818WIN-ZV Quick Start Manual

Z-Wave Gateway Controller
Important: Read All Instructions Prior to Installation

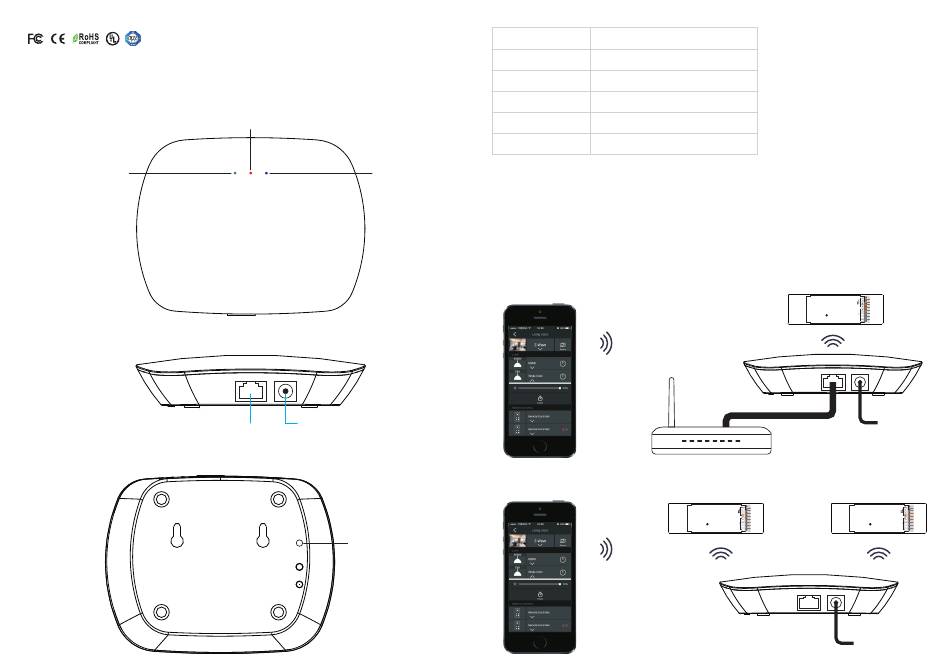

Function introduction
Green LED indicator:
Power normal
09.288WNZV.04159
Red LED indicator:
Z-Wave signal
Blue LED indicator:
WiFi connected
12V DC power input
Ethernet
WiFi Reset switch: press and
hold down for 10S then release,
the blue WiFi indicator will go
off and go on again, WiFi setting
will be factory reset.
WiFi
(Reset) Note: When the hub
is configured to home router,
use the button to reset WiFi
setting to enable to control
directly through the hub
network again.
Product Data
Radio protocol
Z-Wave Plus
Operation Frequency
868.40MHz/908.40MHz/921.40MHz
Power Supply
12VDC
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
110x85x24.2mm
• This Z-Wave gateway controller works with Z-Wave lighting devices and secondary controllers.
• Free APP is available for IOS or Android smart phones or tablets.
• Can be controlled by smart phones or home network.
• Waterproof grade: IP20.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring diagram
Method 1:Configure the gateway to your home network, then connect your smart phone with your home network router
Method 2: Connect your smart phone directly with the gateway
Z-Wave Controller
1-
2-
Prog.
3-
4-
Router
Z-Wave Controller Z-Wave Controller
1-
2-
Prog. Prog.
3-
4-
12V DC power
input
12V DC power
input
1-
2-
3-
4-
