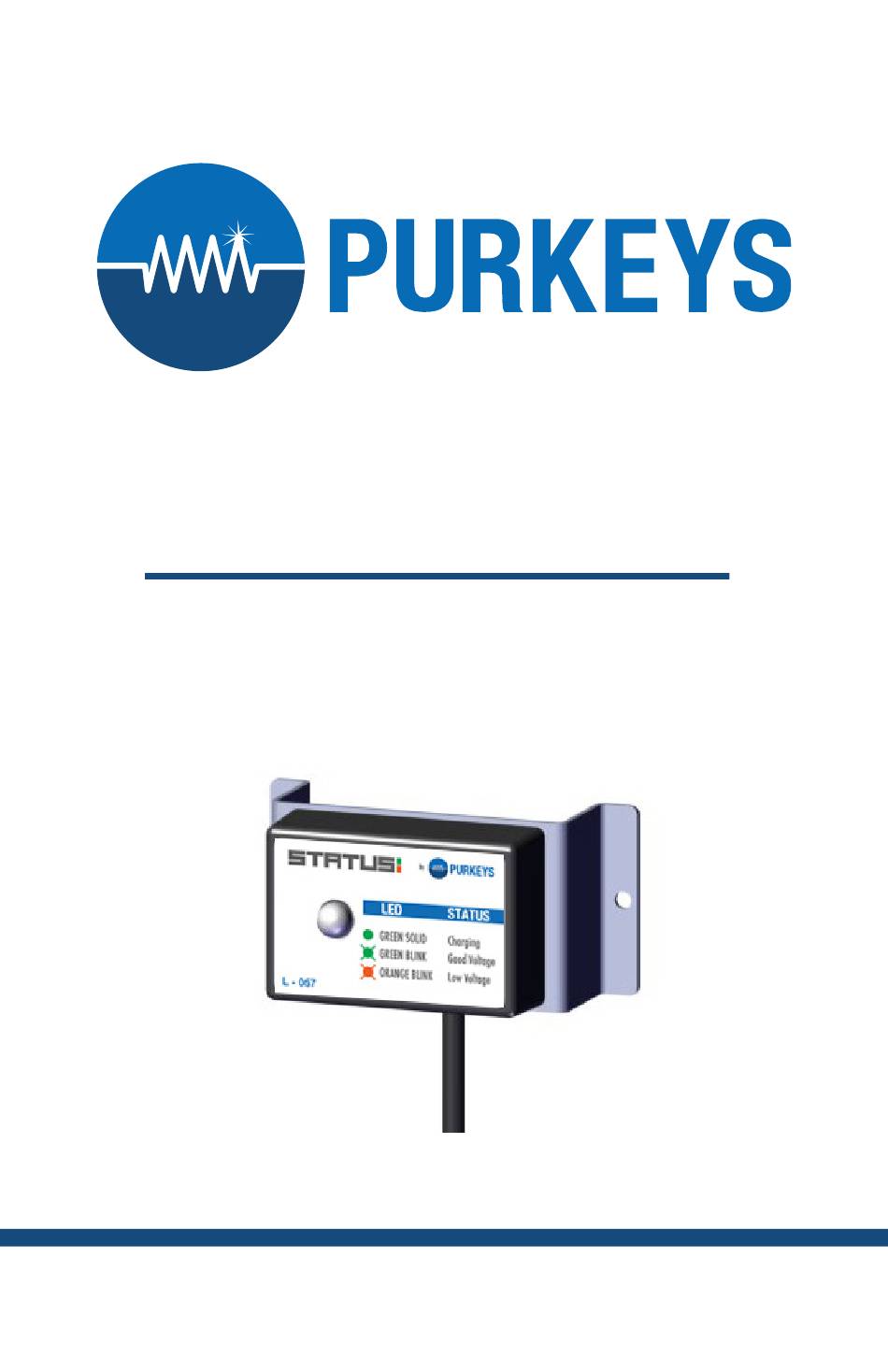

- Page 1 A MISSION CRITICAL ELECTRONICS BRAND STATUS-03 / STATUS-05 INSTALLATION GUIDE INST166 R2.00...
-
Page 3: Table Of Contents
CONTENTS General Information ..................2 Part Numbers ......................2 LED Indication ....................3 Mounting the Status Controller ................4 Status Li gate Battery Harness .................5 Limited Commercial Warranty Policy .............8 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net... -
Page 4: General Information
GENERAL INFORMATION e Status™ system has an easy-to-interpret LED indicator to inform drivers and technicians of the current status of a battery. A quick glance at the Status Controller assures the driver or technician that the batteries are ready to go, or alerts the driver that the batteries need maintenance. -
Page 5: Led Indication

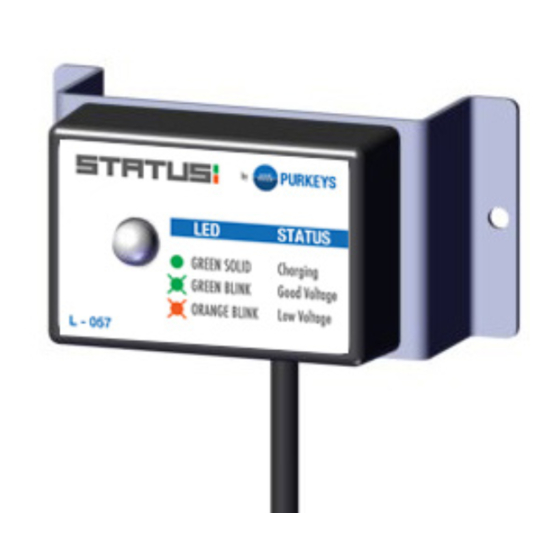

STATUS-03/-05 INSTALLATION GUIDE LED INDICATION Condition Action Needed Solid Green Charging mode None Slow Flashing Batteries in good state of charge None Green (more than 12.4 volts) Batteries in low state of charge Slow Flashing Charge and test (voltage between 6.0 and 12.39 Orange batteries volts) -
Page 6: Mounting The Status Controller
MOUNTING THE STATUS CONTROLLER Step 1: Mount the Status controller at the front of the trailer via the mounting holes on the plate that the controller is mounted to. -
Page 7: Status Li Gate Battery Harness
STATUS-03/-05 INSTALLATION GUIDE STATUS LIFTGATE BATTERY HARNESS Step 1: Route the jacketed 2-conductor li gate battery harness behind the front plate, then behind the header plate through the air/electrical tube to the center channel. Step 2: Route the jacketed 2-conductor li gate battery harness in the center channel toward the back of the trailer. - Page 8 Step 4: Position the jacketed 2-conductor li gate battery harness so that it will reach the li gate batteries with a little extra slack in the cable. Mark the wire so that it can be taken back out of the battery box to be terminated. Note: If your battery box includes a slide-out tray, include enough slack to allow the tray to fully extend without tugging on the wire connections.
- Page 9 STATUS-03/-05 INSTALLATION GUIDE Step 8: Strip 3/8 of an inch of insulation o both red and black wires. Step 9: Route the jacketed 2-conductor li gate battery harness back into the li gate battery box. Slide the supplied black ¼ inch heat shrink over the black wire.
-
Page 10: Limited Commercial Warranty Policy
LIMITED COMMERCIAL WARRANTY POLICY MCE Purkeys FE, LLC (herea er “Purkeys”), warrants each product to be free of defects in material or workmanship under normal use and service. is warranty is for the bene t of Original Equipment Manufacturers, Dealers, Warehouse Distributors, Fleets, or other End Users (herea er “Customers”) and covers products manufactured and/or branded by Purkeys and sold new to Customers either directly by Purkeys or by its authorized dealers, distributors, or agents. - Page 11 STATUS-03/-05 INSTALLATION GUIDE P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
