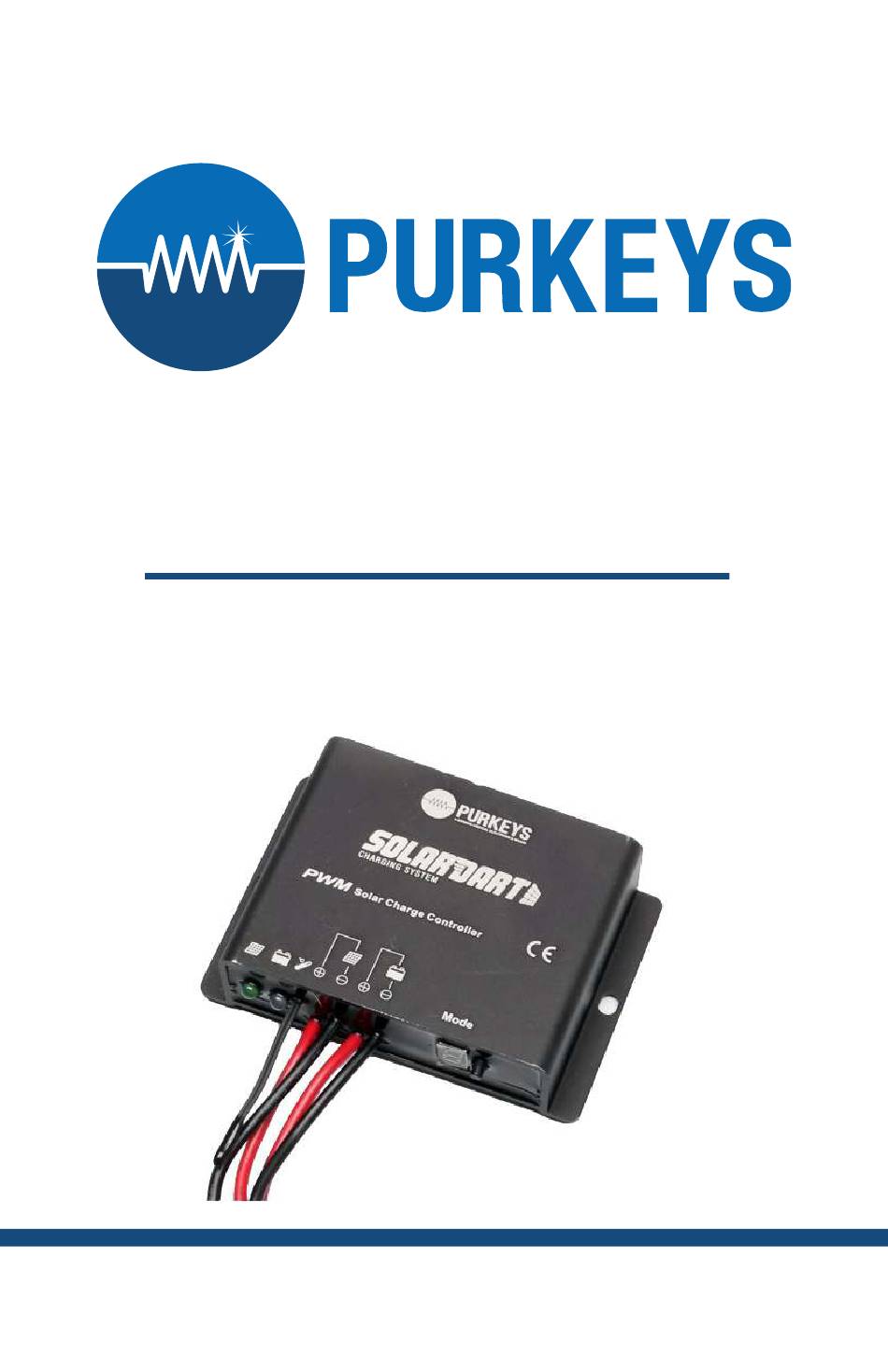

- Page 1 A MISSION CRITICAL ELECTRONICS BRAND SOLAR DART INSTALLATION GUIDE 300-111 R1.00...
- Page 3 CONTENTS Installation ......................2 LED Operation and Troubleshooting ..............5 Limited Commercial Warranty Policy .............8 P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
- Page 4 INSTALLATION Step 1: Turn off the refrigeration or heater unit. Step 2: Disconnect the refrigeration/heater unit from any and all shore power (land- based grid power). Step 3: Disconnect the positive battery cable. Panel Installation Preparation for Adhesive If the bond surface is wet or dirty, the solar panel may not completely bond. We do not recommend solar panel installations in weather below 40 degrees Fahrenheit or where there is moisture on the bond surface.
- Page 5 SOLAR DART INSTALLATION GUIDE Step 9: Position the solar panel on top of the trailer so the sun will strike the panel (see example 1 and 2). Mounting hardware must be provided by the installer and is not included in this kit. Example 1 Example 2 Step 10: Connect the Solar Dash power and ground harness assembly to the...
- Page 6 Step 11: Route the Solar Dart power and ground harness to the refrigeration or heater unit. Step 12: Install the Solar Dart controller in a suitable location in the refrigeration or Heater unit. NOTE: We recommended ALWAYS mounting the controller as close to the refrigeration unit/heater unit battery as possible.
- Page 7 SOLAR DART INSTALLATION GUIDE LED OPERATION AND TROUBLESHOOTING Battery Status LED Charging Status LED Charging Status LED Condition Action Needed Good Voltage Green Solid (Charging) None Test vehicle or reefer/ Green Fast Flashing Over Voltage heater battery. No LED Open circuit from Repair circuit by battery positive and repairing the wire or...
- Page 8 NOTES...
- Page 9 SOLAR DART INSTALLATION GUIDE NOTES P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
- Page 10 LIMITED COMMERCIAL WARRANTY POLICY MCE Purkeys FE, LLC (hereafter “Purkeys”), warrants each product to be free of defects in material or workmanship under normal use and service. This warranty is for the benefit of Original Equipment Manufacturers, Dealers, Warehouse Distributors, Fleets, or other End Users (hereafter “Customers”) and covers products manufactured and/or branded by Purkeys and sold new to Customers either directly by Purkeys or by its authorized dealers, distributors, or agents.
- Page 11 SOLAR DART INSTALLATION GUIDE P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net...
