20V
NAILER/STAPLER
55740 & 00646
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
MULTI-TOOL BATTERY SYSTEM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 55740
Summary of Contents for Draper 55740
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page 1.1 Introduction
TITLE PAGE 1.1 INTRODUCTION: USER MANUAL FOR: 20V Nailer/Stapler Stock No’s: 00646 (with battery charger and battery) and 55740 (bare) Part No’s: D20NSSET & D20NS 1.2 REVISIONS: Date first published September 2018. Date revised December 2020. As our user manuals are continually updated, users should make sure that they use the very latest version. -
Page 3: Table Of Contents
CONTENTS TITLE PAGE 1.1 INTRODUCTION ......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 CONTENTS 2.1 CONTENTS........................3 WARRANTY 3.1 WARRANTY......................... 4 INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE ..................5 HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ....... -
Page 4: Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 5: Introduction
As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any application other than that it was intended for, is considered misuse. 4.2 SPECIFICATION Stock No’s.........................00646 & 55740 Part No’s......................D20NSSET & D20NS Maximum operations per minute ....................60 Fastener capacities: Staples (maximum No.100pcs) ............... -
Page 6: Health And Safety Information
HEALTH AND SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 7: Additional Safety Instructions For Nailer/Staplers
HEALTH AND SAFETY INFORMATION Wait for the machine to stop. Unless the machine is fitted with a safety brake, some parts may continue to move due to momentum. Wait for all parts to stop, then unplug it from the power supply before making any adjustments, carrying out maintenance operations or just finishing using the tool. -
Page 8: Safety Instructions For Mains Powered Chargers And Battery Packs
– Before charging, read the instructions. – For indoor use. Do not expose to rain. – Only use Draper D20 battery packs with this product. Consult your Draper stockist for details. – Do not charge any other manufacturer’s battery packs using Draper chargers. Any other application is considered misuse. -
Page 9: Connection To The Power Supply (Charger)
– The battery is to be disposed of in-line with local authority procedures. – Do not use any other than the designated Draper batteries/chargers with this product. – Do not crush, open or burn the battery. Exposure to potentially harmful materials may occur. -
Page 10: Technical Description

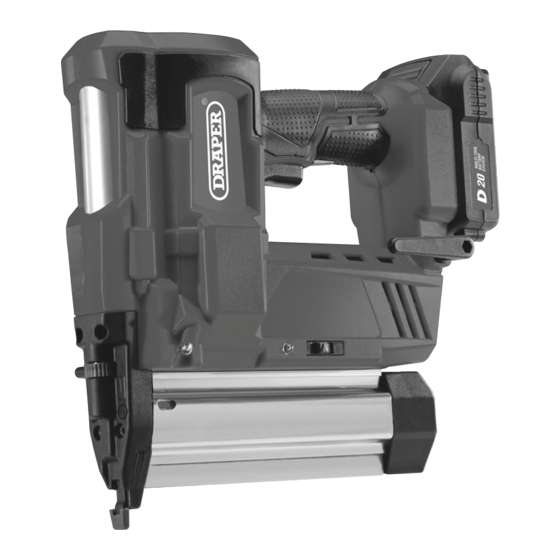

TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (12) (11) (10) (1) Trigger. (2) Cylinder. (3) Depth adjustment wheel. (4) Safety contact pin. (5) LED Worklights. (6) LED Firing status indicator. (7) Magazine (open, showing staples loaded). (8) Magazine release lever. (9) Single/contact firing switch. (10) Belt hook. -
Page 11: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 12: Preparing The Nailer/Stapler
PREPARING THE NAILER/STAPLER 8.1 BATTERY PACK CHARGING – FIGS. 1 – 2 This power product is either supplied “bare”, without battery pack or charger (Stock No.55740), (12) or with a transformer/charger and one battery pack (Stock No.00646). (12.1) Important: Only Draper designated battery packs and chargers can be used in conjunction with this product. -
Page 13: Battery Pack Protection Features
If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Allow battery/charger to normalise and try again. If a fault remains after trying this then contact Draper Tools. 8.2 BATTERY PACK PROTECTION FEATURES Charge level... -
Page 14: Loading Nails And Staples
PREPARING THE NAILER/STAPLER Note: Remove the battery from the tool before carrying out adjustment, servicing or maintenance. 8.5 LOADING NAILS AND STAPLES – FIGS. 4 – 7 At the rear of the magazine (7) is the magazine release lever (8). –... -
Page 15: Basic Nailer/Stapler Operations
BASIC NAILER/STAPLER OPERATIONS Hold handle firmly with magazine flat to work piece forming a 90° (FIG.8). 9.1 SINGLE FIRING MODE – FIG. 9 Push the single/contact firing switch (9) to the left side. Single Firing is good for precision placement . –... -
Page 16: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. 10.2 UNBLOCKING JAMMED FASTENERS – FIGS. 12 – 15 Although this nailer/stapler is fitted with an anti-jam mechanism, should a fastening jam occur, follow the instructions given below. -
Page 17: Optional Accessories
11. OPTIONAL ACCESSORIES 11.1 OPTIONAL ACCESSORIES A full range of accessories are available from Draper Tools. Please visit our website for details: www.drapertools.com - 17 -... -
Page 18: Disposal
12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●... -
Page 19: Explanation Of Symbols
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Single value noise marking. Read the instruction manual. (Maximum declared A-Weighted sound power level in decibels). Wear ear defenders and Class II construction safety glasses. (Double insulated). WEEE – Wear protective gloves. Waste Electrical &... - Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
