RolloTec
RolloTec cutoff relay with/without extension unit outgoing
feeders
RolloTec cutoff relay
Order no.: 2930
RolloTec cutoff relay RMD
Order no.: 2931
RolloTec cutoff relay with extension unit outgoing feeders
Order no.: 2969
RolloTec cutoff relay with extension unit outgoing feeders RMD
Order no.: 2919
Operation and Assembly instructions

1 Safety instructions

Electrical equipment must only be installed and assembled by qualified electricians.
Always follow the relevant accident prevention regulations.
Failure to comply with these instructions may result in damage to the device, fire or other
hazards.
Disconnect before working on the device or load. Take into account all circuit breakers
that supply dangerous voltages to the device or load.
Use the device only for controlling Venetian blind, roller shutter or awning drives with
electronic or mechanical limit switches. Do not switch any other loads.
Secure blinds/shutters against unauthorised and unintentional operation. There must not
be any persons or objects in the movement range of the blinds/shutters.
These operating instructions are an integral component of the product, and must be
retained by the end user.

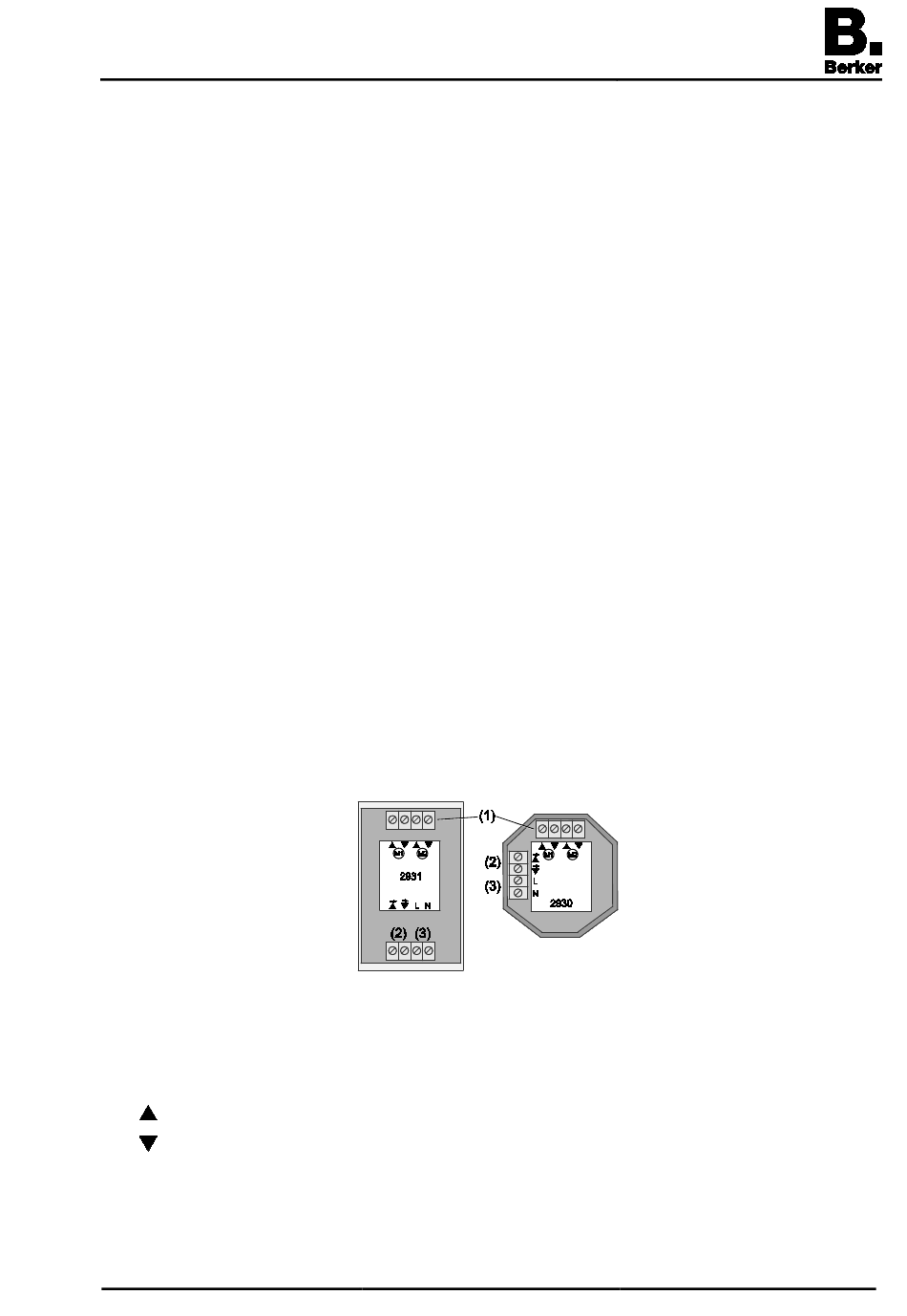

2 Structure of the device

Terminals
(1) Motor M1 and M2
Motor Up
Motor Down
Figure 1
