Summary of Contents for Ventec Life Systems HomeFill HF2PCL4

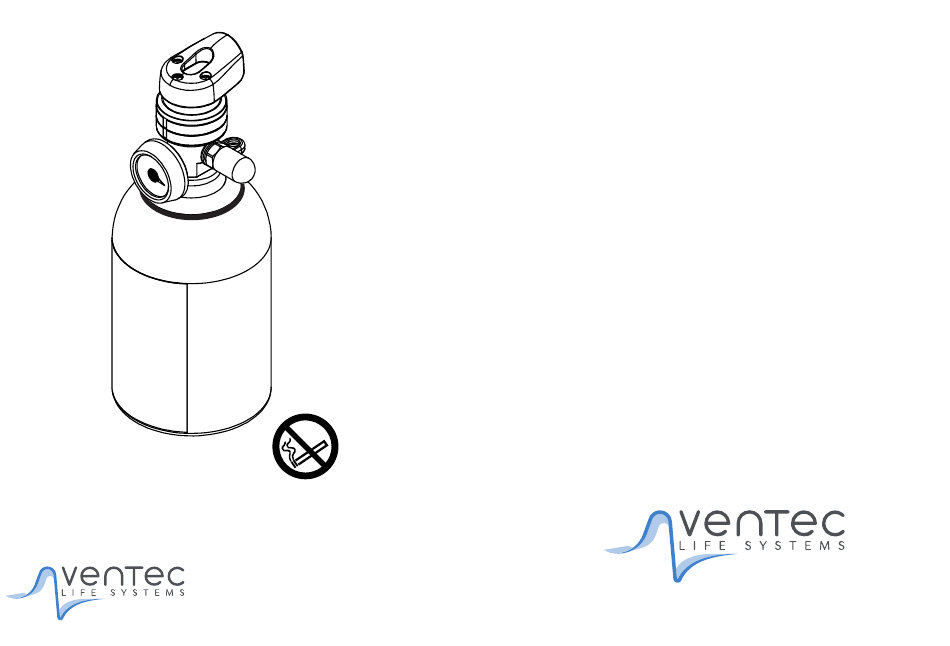

- Page 1 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver For HomeFill Oxygen System ® en HF2PCL4, HF2PCL6, HF2PC9 User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for...
-
Page 2: Table Of Contents
Contents 7. Maintenance ..................17 1. Introduction ..................3 7.1 Maintenance ................17 2. General ....................4 7.2 Emptying the Cylinder Assembly ...........17 2.1 Symbols ..................4 7.3 Cleaning .................18 2.2 Intended Use ................5 7.4 Disinfecting................18 2.3 User Profile ................5 7.5 Reuse ..................19 2.4 Service Life ................5 7.6 Storage ...................19 2.5 Limited Warranty ..............6 7.7 Optional Accessories ..............19... -
Page 3: Introduction
1. Introduction All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Ventec. Trademarks are On February 1, 2023, Ventec Life Systems ® , dba React Health, completed the identified by ™and ®. All trademarks are owned by or licensed to Ventec Life purchase of the Invacare Respiratory product line. -
Page 4: General
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 2. General 2.1 Symbols Read the manual Signal words are used in this manual and apply to hazards or unsafe prac- tices which could result in personal injury or property damage. See the information below for definitions of the signal words. -
Page 5: Intended Use
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 2.2 Intended Use The use of this product is limited to the oxygen patient. Cylinder as- semblies MUST be used only by the oxygen patient and are not to be This cylinder assembly is intended to store, regulate, and deliver sup- distributed to any other individual for any purpose. -
Page 6: Limited Warranty
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 2.5 Limited Warranty Terms and conditions of the warranty are part of the general terms and conditions particular to the individual countries in which this product is THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY sold. -
Page 7: Component Identification

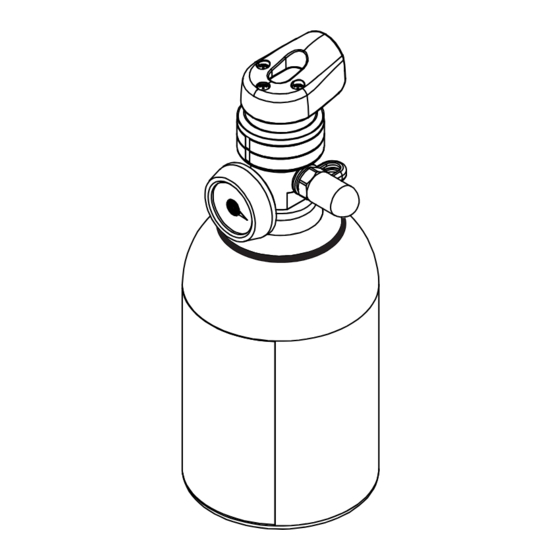

® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 2.6 Component Identification Item Description Cylinder Assembly Cylinder Conserver Outlet Connection Flow Dial Cylinder Gauge Cylinder Fillport Cylinder Fillport Cover Cylinder Gauge Needle Note: Cover of cannula connection removed from this view... -
Page 8: Safety
Filling of this cylinder is performed correctly, contact a technician or Ventec for repair. by the HomeFill oxygen system only. DO NOT REMOVE THIS Ventec Life Systems, Inc. • THE INFORMATION IN THIS DOCUMENT IS SUBJECT PRODUCT LABEL... - Page 9 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver DANGER! DANGER! Risk of Death, Injury or Damage Risk Of Death, Injury, Or Damage From Fire • Use this cylinder in accordance with the HomeFill com- Textiles, oil or petroleum substances, grease, greasy pressor user manual.
-
Page 10: Operating Information
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 4. Operating Information DANGER! Risk of Fire DANGER! Dirt or contaminants on the cylinder assembly or conserver Risk of Fire can cause fire, injury or death. Dirt or contaminants on the cylinder assembly or conserver •... - Page 11 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver WARNING! CAUTION! Risk of Injury or Death Risk of Damage Contaminants in the oxygen may cause injury or death. To avoid product damage: • DO NOT use if the oxygen has an unusual odor.
- Page 12 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver The cylinder assembly MUST be emptied of gas prior to shipping by cou- WARNING! rier or postal service. Refer to Emptying the Cylinder Assembly. Risk of Injury or Death Because the cylinder contains magnetic, ferrous material, it is not suitable to be in an MRI room.
-
Page 13: Setup
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 5. Setup 5.3 Receiving Inspection Remove product from package and inspect for damage. If there is any 5.1 Dealer Setup damage, DO NOT use. Contact your dealer/Home Care equipment provider. -
Page 14: The Hydrostatic Testing Date
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver DANGER! WARNING! Risk of Injury or Death Risk of Injury • Improper filling or abuse of this cylinder assembly, or To reduce the risk of injury: failure to follow these safety instructions may cause •... -
Page 15: Usage
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 6. Usage 6.1 Before Use WARNING! Risk of Injury or Damage Defective or inoperable cylinders may cause injury or damage. • All cylinders MUST be inspected before attempting to fill. - Page 16 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 3. Position the cylinder assembly so the outlet connection is point- ing away from the user and any other person(s). WARNING! Risk of Injury To reduce the risk of injury: •...
-
Page 17: Maintenance
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 7. Maintenance WARNING! Risk of Injury or Damage 7.1 Maintenance The cylinder assembly MUST be disconnected from the HomeFill and emptied of gas prior to cleaning or disinfect- WARNING! ing. -
Page 18: Cleaning
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver Follow the cleaning/disinfectant product manufacturer’s instructions for CAUTION! use, handling, storage and disposal of the product. Risk of Damage Follow this procedure to clean the cylinder assembly as required when visibly soiled. -
Page 19: Reuse
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 7.5 Reuse 7.7 Optional Accessories WARNING! WARNING! Risk of Injury or Damage Before transferring the product to a different user, provid- ers MUST inspect the product for damage and disinfect the Use of non-Ventec accessories may result in serious injury product. -
Page 20: After Use
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 8. After Use 8.1 Disposal This product has been supplied from an environmentally aware manufac- turer that complies with the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/CE. This product may contain substances that could be harmful to the environment if disposed of in places (landfills) that are not appropriate according to legislation. -
Page 21: Troubleshooting
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 9. Troubleshooting 9.1 Troubleshooting If the Regulating Cylinder fails to function, consult the Troubleshooting guide. If problem cannot be corrected, consult your Dealer/Home Care equipment provider. Problem Possible Cause Solution No flow. -
Page 22: Technical Data
® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver 10. Technical Data 10.2 Specifications 10.1 Technical Description The Ventec Oxygen Conserving Cylinder is an oxygen storage product Settings that can deliver up to 5 L/min of pulse flow oxygen to the patient via a nasal cannula. - Page 23 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver Assembly Dimensions Conserver S/N Range: 75,000+ Model: HF2PCL4 HF2PCL6 HF2PC9 Weight: 3.6 lbs (1.63 kg) 4.1 lb (1.86 kg) 5.1 lb (2.31 kg) Overall Length: 8.9 in (22.2 cm) 10.9 in (27.7 cm)
- Page 24 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver Fill Times Normal Maximum HF2PCL4 60 min* 1 hr 20 min* HF2PCL6 1 hr 25 min* 1 hr 50 min* HF2PC9 2 hr 20 min* 2 hr 45 min*...
- Page 25 ® Ventec Life Systems ML4, ML6 and M9 Cylinder with Conserver Notes: Notes:...
- Page 26 Ventec Life Systems, Inc. 22002 26th Ave SE Bothell, WA 98021 United States 844-698-6276 www.reacthealth.com Manufacturer Ventec Life Systems , Inc. 22002 26th Ave SE Bothell, WA 98021 USA LBL-00408-000, Rev. A...
